Hebei Highlystar Electronics Co., Ltd products

HSF-24601 TFT LCD module is a 24.6 inch diagonal size, 1920RGB×578 dots, color TFT LCD display. This module supports 2 Port/LVDS interface, +5V of DC supply voltage.

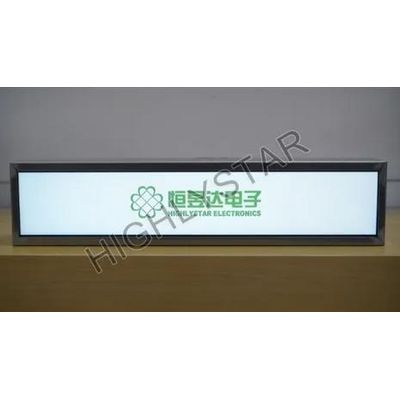

HSF-19101 TFT LCD Module is a 19.1 inch diagonal size, 1920RGB×340 dots, color TFT LCD display. This module supports 2 Port/LVDS interface, +5V of DC supply voltage.

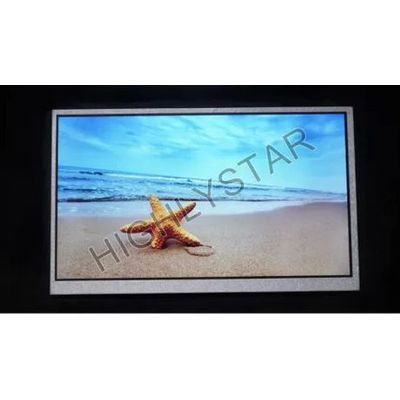

HSF-10101 TFT LCD Module is a 10.1-inch diagonal size, 1024RGBx600, color TFT LCD display. This module supports LVDS Interface. Logic supply voltage range from 3.0V to 3.6V.

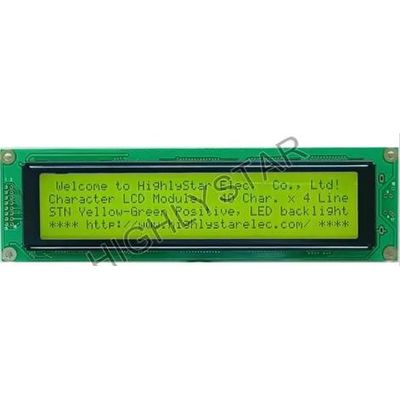

HSC-40045V9 LCD Module is a very popular module. This is 40 characters by 4 lines LCD Alphanumeric Display, built in with ST7066 controller, 5V power supply default 6800 4/8-bit parallel interface. The LED backlight default color is white, There are different LED backlights available in various colors including green, yellow-green, and red.

HSC-40045V8 LCD Module is a very popular module. This is 40 characters by 4 lines LCD Alphanumeric Display, built in with ST7066 controller, 5V power supply default 6800 4/8-bit parallel interface. The LED backlight default color is yellow-green, There are different LED backlights available in various colors including blue, green, white, and red.

HSC-20045V2 LCD Module is a very popular module. This is 20 characters by 4 lines LCD Alphanumeric Display, built in with ST7066 controller, 5V power supply default 6800 4/8-bit parallel interface. The LED backlight default color is yellow-green, There are different LED backlights available in various colors including blue, green, white, and red.

HSG-2401287V10 is a monochrome graphic LCD display module, which having 240×128 dots,  Built in with RA6963 controller IC or compatible controller. It supports 8080 8-bit parallel interface, 5.0V power supply and DC-DC convertor built in. The LED backlight default color is yello-green, There are different LED backlights available in various colors including blue, green, white and red.

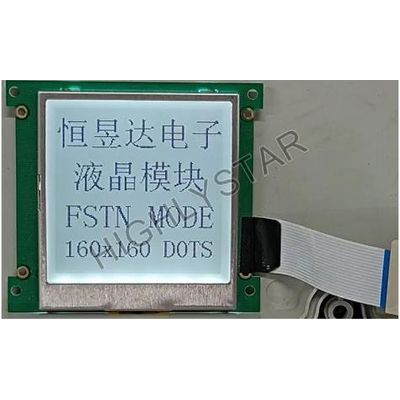

HSG-1601606V16 is a monochrome graphic LCD display module, which having 160×160 dots,  Built in with UC1698 controller IC or compatible controller. It supports 8080 8-bit parallel interface, 3.3V power supply and DC-DC convertor built in. The LED backlight default color is white, There are different LED backlights available in various colors including blue, green, yellow-green and red.

HSG-1601606V16 is a monochrome graphic LCD display module, which having 160×160 dots,  Built in with UC1698 controller IC or compatible controller. It supports 8080 8-bit parallel interface, 3.3V power supply and DC-DC convertor built in. The LED backlight default color is white, There are different LED backlights available in various colors including blue, green, yellow-green and red.

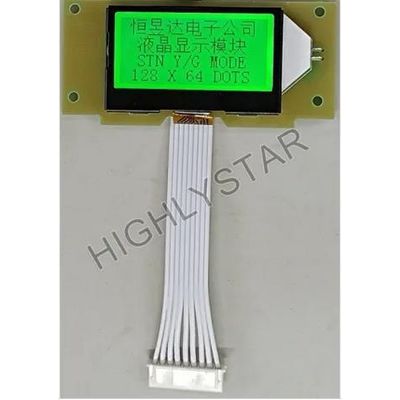

HSK-470 is a monochrome graphic LCD display module, which having 128×64 dots,  Built in with ST7567 controller IC or compatible controller. It supports SPI interface, 3.3V power supply and DC-DC convertor built in. The LED backlight default color is green, There are different LED backlights available in various colors including blue, white, yellow-green and red.
