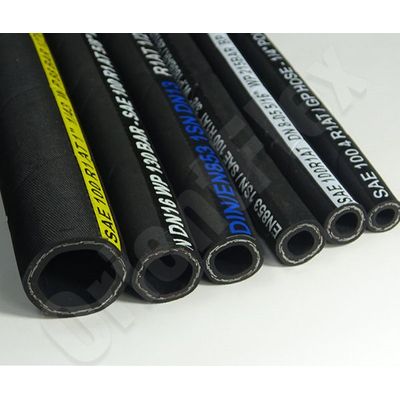

SAE 100 R1 steel wire reinforced hydraulic hose is suitable for hydraulic hose and usual industrial systems. It can bear higher working pressure than other rubber hoses thanks to its high tensile braided steel wire reinforcement. It is composed of three parts: tube, reinforcement and cover. The tube is made from oil resistant synthetic rubber, making the hose have excellent performance in delivering oils. The reinforcement is made from one layer of high tensile braided steel wire, making the hose have outstanding high pressure resistance. The cover is made from high quality synthetic rubber, making the hose resistant to abrasion, corrosion, weather, ozone, aging, sunlight and cut. Therefore, it has longer service life.

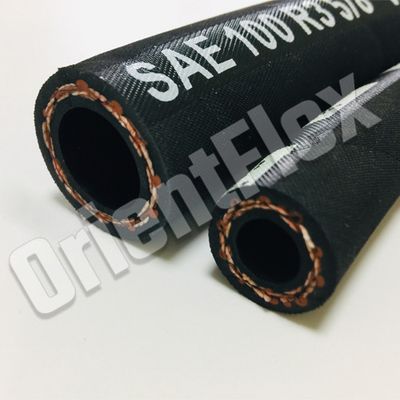

SAE 100 R3 textile reinforced hydraulic hose is suitable for delivering petroleum or water-based hydraulic fluids. It is mainly used in low pressure conditions and it is also used in pneumatic applications. It is composed of three parts: tube, reinforcement and cover. The tube is made from high quality oil resistant synthetic rubber, and it doesn’t react with petroleum or water-based hydraulic fluids. The reinforcement is made from two layers of braided textile, making the hose lightweight and flexible. The hose is easy to operate as a result. The cover is made from high quality abrasion, corrosion, weather and oil resistant synthetic rubber, making the hose have longer service life.

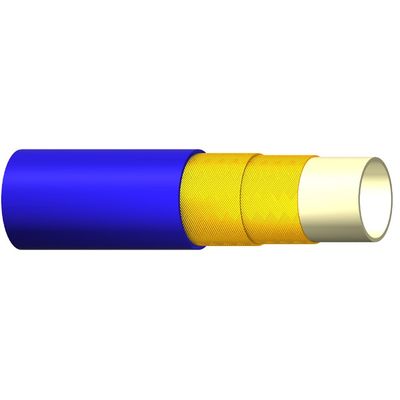

SAE 100 R8 Thermoplastic Hydraulic Hose is suitable for delivering synthetic, petroleum or water-based hydraulic fluids and it is mainly used in high pressure working conditions. It is composed of three parts: tube, reinforcement and cover. The tube is made from high quality hydraulic fluids resistant thermoplastic, making the hose widely used for the delivery of hydraulic fluids. The reinforcement is made from suitable synthetic fiber. The cover is made from weather and hydraulic fluids resistant thermoplastic, making the hose have longer service life.

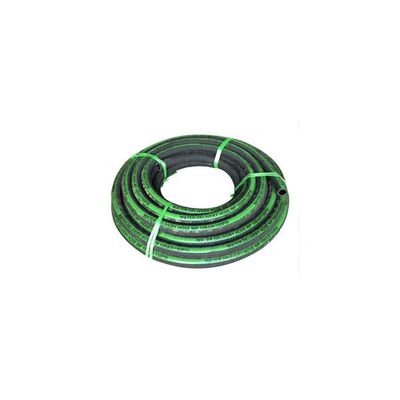

Rubber Water discharge hoses are built to handle more rigourous applications which can be subject to abuse, pressures, or elements. They are heavier in weight than PVC water hoses, but of course more expensive. It should be noted that all “water” hoses are not typically designed for critical applications or permanent piping systems. Rubber Heavy Duty Water Discharge Hose for the toughest industrial or construction applications. The cover is designed to withstand weather, abrasion and ozone. We can also supply PVC water hose.

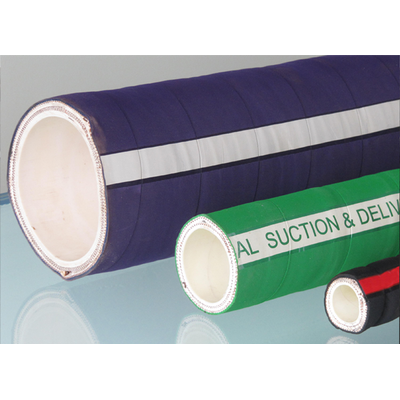

Chemical Suction Hose is a high pressure, high temperature suction and discharge hose designed to handle many commonly used acids, chemicals and solvents. Chemical Suction hose construction incorporates a Smooth Ultra High Molecular Weight Polyethylene (UHMWPE), EPDM that features a temperature rating to 120°C, meets FDA, USDA and 3-A requirements, and will not leach into and contaminate the product being conveyed. The dual wire helix provides full suction capability, kink resistance and a path to conduct a static electrical charge to ground, and is suitable for use with internally expanded couplings. The cover is resistant to abrasion, mild chemicals and ozone.

5,000 psi W.P. - 10,000 psi Test- Grade D- 12,500 psi Minimum Burst. Certification/Standards: API Spec 7K--ISO 14693--ABS approval. Recommended For: Flexible connection between standpipe and swivel (Rotary Drilling) or between pump and standpipe (Rotary Vibrator) for pumping mud at extra high pressure in oil drilling and exploration work. Meets the high demands of directional drilling and down linking with negative pressure pulses and elevated temperatures. This hose can also be used as a Motion Compensator hose for stabilization of rotary drilling and pumping equipment against vertical wave action on offshore drill platforms. The Motion Compensator hose is not recommended for phosphate ester fluids.

Floating Dredging Hose and dredge pipe are mainly used for waterway dredging. Suck and discharge the silt, slurry, sand and stone which depoisited in the waterway. Flexible floating rubber dredging suction hose can extend distance of dredging. Our hoses have good performance in resistance of corrosion, high pressure, bending and abrasion. Floating Dredging Hose and dredge pipe could connected with pipeline well, reduce the sea wave, make conveying medium flows more smoothly.
