Hebei Wansheng Environmental Protection Engineering Co., Ltd. products

Glass-Fused-to-Steel technology is the premium coating technology in the storage tanks market. Glass Fused to Steel tanks are widely used in bio-energy, municipal sewage, industrial wastewater treatment and etc.. The glass fused to steel tanks have at least two layers of coating and more than two-time fired in furnace, which combines the strength, flexibility and outstanding corrosion resistance.

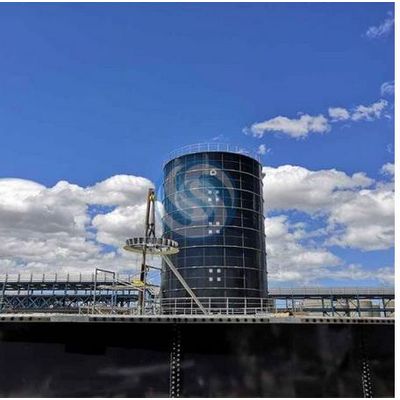

GFS bolted tank (also known as GFS tank)is made of glass fused to steel plate, special sealing material, self-locking screw and other materials.

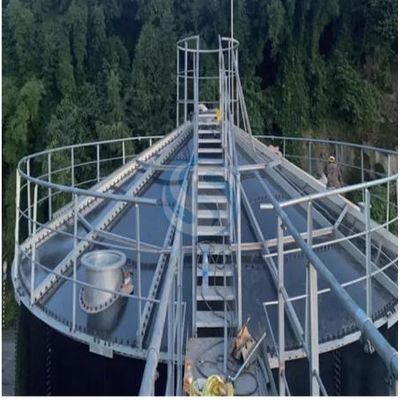

Wansheng can create custom GFS tank roof to fit existing tanks of different shapes. Quality GFS tank roof can improve your water quality by reducing the possibility of algae growth through sunlight exposure and prevent vermin and fauna to access. They may also potentially strengthen the structural integrity of your tank so that your investment lasts longer.

Waste water came into UASB from bottom up through the sludge zone, sludge and sewage touch each other and make anaerobic reaction to produce biogas,then rise to the top of the three-phase separator to achieve gas, solid, liquid separation.UASB can decompose more than 80% of organic pollutants and complete anaerobic reaction.Technical features: high volume load, simple equipment, easy operation, low cost, easy management, not easy to block. Scope of application: papermaking, food processing, wine brewing, landfill leachate, pharmaceutical and chemical wastewater treatment. Key design: water distribution design, three-phase separator design.

Continuous stirred reactor system referred to as CSTR.By anaerobic activated sludge in the digester to purify organic pollutants, livestock and poultry manure wastewater is put into the tank from the upper or top of the anaerobic tank. After mixing with the original anaerobic activated sludge in the tank, the organic matter in the wastewater is converted into biogas through the adsorption, absorption and biodegradation of anaerobic microorganisms.Technical features: uniform material, uniform temperature, no crust, no blockage, no trench flow phenomenon. Scope of application: livestock and poultry manure, slaughterhouse garbage, sprinkler and tank liquid, biodiesel waste, kitchen waste, sludge reduction, etc. Key design: water distribution design, mixing design.

Wansheng focus on designing and assembling GFS tanks with the high industry standards. Our Internal Circulation (IC) reactor for GFS bolted tank will satisfy your requirements on many aspects.
