Capacity range 0.74 – 32 l/h, 25 – 2 bar. All-purpose solenoid-driven metering pump for metering liquid media in water treatment and chemical processes: Solenoid-driven metering pump Beta®. Cost-effective, overload-proof, adaptable to existing signal transducers. Equipped with all the features and properties for superior process management. A range of different pump types and material combinations are available for virtually all metering applications. The virtually wear-free solenoid drive guarantees an exceptionally long service life even under maximum load.

Feed rate of product range 1 ml/h – 45 l/h; 25 – 2 bar. The solenoid-driven diaphragm metering pump gamma incorporates a wealth of eXcellent ingenuity! With integrated pressure measurement, it ensures the smooth running of your metering process. The gamma/ X is ideal for all metering work involving liquid media.

Capacity range 8 – 76 l/h, 10 – 4 bar. The motor-driven metering pump Vario C delivers a high level of process quality for continuous metering within simple metering tasks. It can be used, for example, in the metering of additives or flocculants in chemical metering. The basic pump for simple applications: With 4 gear reduction ratios, 2 dosing headThe dosing head is where the actual dosing process takes place.  sizes and 2 dosing headThe dosing head is where the actual dosing process takes place.  materials, the Vario C motor-driven metering pump is well adapted to basic metering tasks. It is available with a three-phase or single-phase AC motor. Its pump capacity is adjusted via the stroke length, in 1% increments, with a self-locking rotary dial.

Feed rate of 6 ml/h to 65 l/h at up to 7 bar back pressure. DULCO flex Control – DFXa meters gaseous, viscous, abrasive or shear-sensitive media and sets new standards in metering. Linear and reproducible metering (± 2%) is guaranteed with this peristaltic pump under all process conditions. With it`s painted design, the tube is easily replaced preventing losses in valuable production down time.

Capacity range of single head pump: 1 – 60 l/h; 25 – 1 bar. The diaphragm metering pump EXtronic® is perfectly suited for the sensitive use of liquid media in facilities with an explosive gas atmosphere as well as for mines at risk of firedamp, as it is approved in compliance with the EU EX Regulation 2014/34/EU (ATEX).

Capacity range of single head pump: 3 – 72 l/h; 100 – 25 bar. As an extremely robust hydraulic diaphragm metering pump, the Hydro/ 2 meets the most exacting safety requirements. Its modular construction, with either one or two dosing heads, 4 gear ratios, 2 dosing head sizes and 3 dosing head materials, offers a very high degree of flexibility in terms of areas of application.

Capacity range 2 – 76 l/h, 320 – 12 bar. The plunger metering pump Sigma/ 2 (Basic Type) is an extremely robust plunger metering pump with high-performance plunger and the option to adjust the pump capacity in 0.2% increments. It offers a wide range of power end versions, such as three-phase or 1-phase AC motors, even for Exe and Exde areas with ATEX certification.

Capacity range 0.4 – 2.4 l/h at max. 1.5 bar back pressure. The peristaltic pump DULCO®flex DF2a meters chemicals functionally, cost-effectively and quietly – ideal for use in swimming pools, hot tubs, and in spa and wellness facilities.

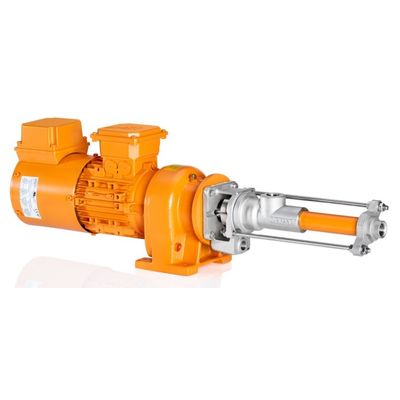

Capacity range 2.4 – 12,000 l/h, 12 – 3 bar. The eccentric screw pump Spectra meters liquid polyelectrolytes in concentrated and dilute form. It can be used, for example, in waste water treatment or sludge dewatering.

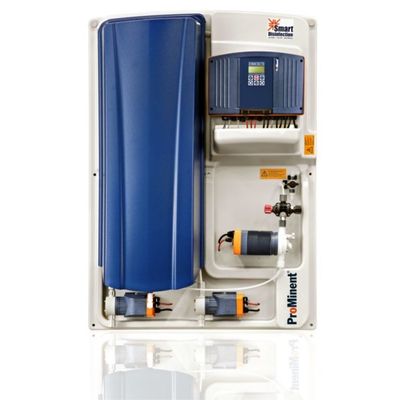

0 – 120 g/h capacity with storage of up to 60 g of chlorine dioxide for peak metering. Max. flow rate at 0.2 ppm ClO2 metering capacity of 600 m3/h. Chlorine dioxide system for production of a chlorine-free chlorine dioxide solution, especially suitable for multiple points of injection. Bello Zon® CDLb produces ClO2 discontinuously using the acid/chlorite process with diluted chemicals.
