Hemco Corporation products

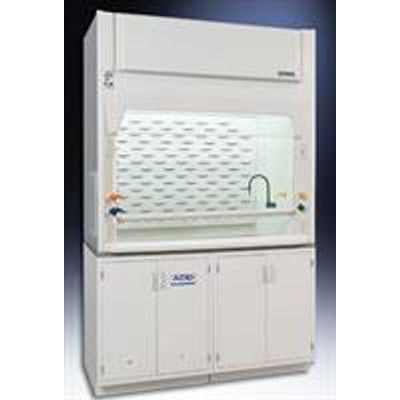

High efficiency, full duty fume hood in 48”, 60”, 72” and 96” widths. UniFlow SE AireStream Fume Hoods are designed for energy savings & maximum user protection. The aerodynamic face opening with airfoil provides uniform air flow through the fume chamber. A constant volume low flow hood with Vector Baffle System directs the air through the fume chamber to the bell shaped exhaust collar with minimal turbulence. Requires Remote Exhaust Blower. Fume hood is U.L.1805 classified.

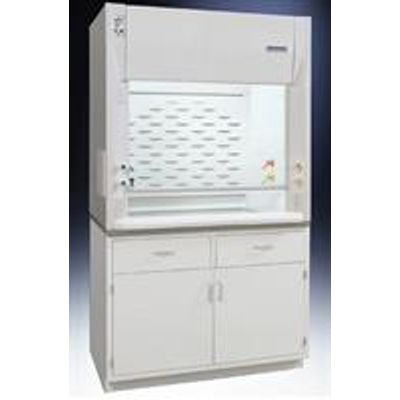

High efficiency, full duty fume hood in 36”, 48”, 60” 72” and 96” widths. UniFlow LE fume hoods are low flow constant volume for energy savings and maximum user protection. The aerodynamic face opening with airfoil provides uniform airflow through the fume chamber. The VaraFlow baffle system directs the air through the fume chamber to the bell shaped exhaust outlet with minimum turbulence. Fume hood is U.L.1805 classified.

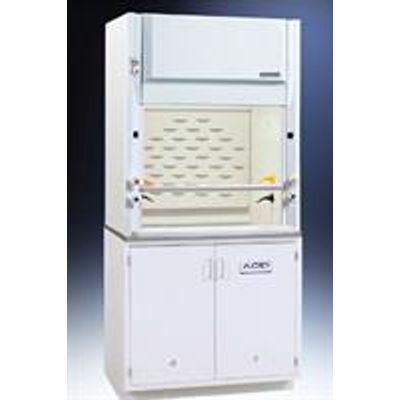

Full duty fume hoods in space and energy saving sizes of 30`, 36`, 48`, & 72` widths. UniFlow CE models are low flow constant volume fume hoods that require no VAV controls, no motorized baffles, no costly auxiliary air system and no special integral supply fans. These units can save 50% or more in costly exhaust volume typically required to operate a conventional fume hood. Fume hood is U.L.1805 classified.

UniMax Floor Mounted (Walk-in) Hoods are designed to safely isolate materials and procedures from the surrounding area, and exhaust hazardous fumes.

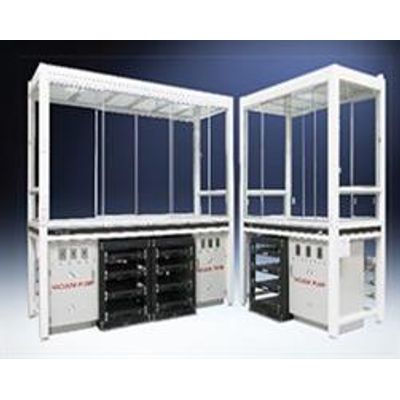

A Vented Enclosure offered in Unitized & Modular Designs for exhausting fumes from Robotic & Automated processes Designed to protect personnel from potentially hazardous fumes, vapors and odors. The enclosure can connect to in-house exhaust system or a dedicated exhaust blower, to provide the internal negative pressure needed to safely remove hazardous fumes from the work area. Air supply into the enclosure is supplied from the surrounding lab environment.

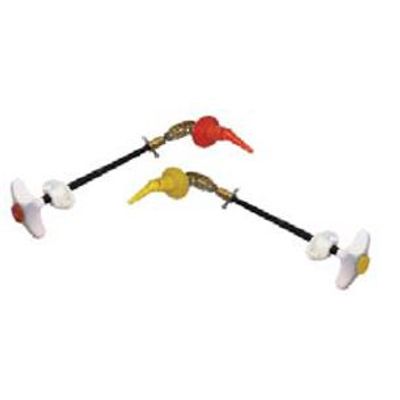

Two remote controlled service fixture set. Color-coded index buttons with matching color-coded serrated tip. Specify service required. Epoxy coated brass.

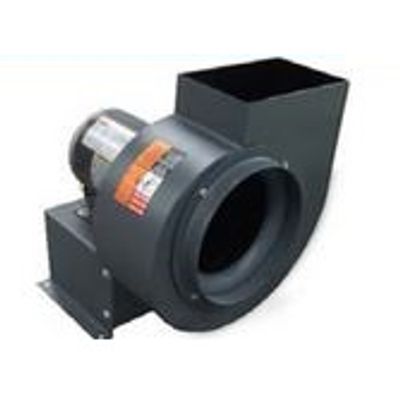

Standard (STD) belt drive steel blower and impeller wheel are epoxy coated for superior chemical resistance. Explosion-proof blowers (EXP) have epoxy coated, non-sparking aluminum impeller wheel. V-belt drive and adjustable pulleys permit field balancing. Seven discharge positions to suit installation. Weather housing is furnished. Motor has thermal overload protection. Specify: 115 V single phase, 230 V single phase, 230/460 V three phase or 208 V (consult factory). 1 year manufacturer’s warranty

Direct drive steel blower and impeller wheel are epoxy coated for superior chemical resistance. Explosion proof blowers have epoxy coated non-sparking aluminum impeller wheels. Motor is 115V, 1 phase and has thermal overload protection. 1 year manufacturer’s warranty.

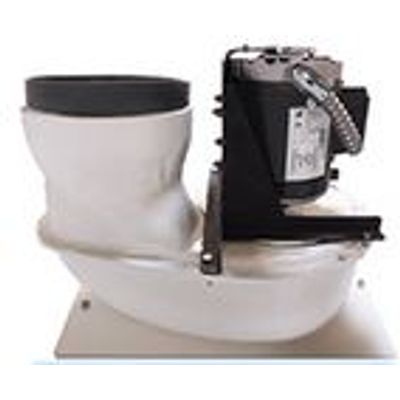

Vertical Intake Vertical Discharge Blowers, mounted in the interstitial ceiling space of the fume hood. Blower housing is constructed of FRP for chemical resistance Direct drive blower and impeller wheel are epoxy coated for superior chemical resistance. Explosion proof blowers have epoxy coated non-sparking aluminum impeller wheels. Motor is 115V, single phase and has thermal overload protection. Available on UniFlow SE, and CE fume hoods. 1 year manufacturer’s warranty.

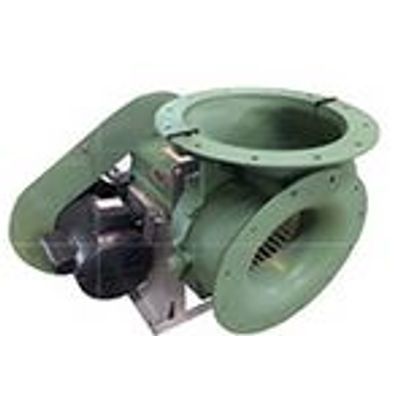

High efficiency impellers produce low power consumption, reduced operating costs and quiet operation. 20 forward curved blades, in fire retardant polypropylene. Non-static and oil resistant v-Belt, cast iron pulleys, adjustable pulleys available, adjustment for tensioning and belt replacement. 230V explosion proof, non sparking, chemical resistant for hostile or hazardous environments. 115V single phase or three phase. Non-static and oil resistant V-belt, cast iron pulleys, adjustable pulleys available, adjustment for tensioning and belt replacement.
