Henan Uniwin Filtering Equipment Co., Ltd. products

wastewater treatment - Model FP 100/1000-30U - Hydraulic recessed type filter press

Filter Press Also known as Plate And Frame Filter Press means the type of filters which were originally developed in the 19th century for clay. Most of the today's Filter Press are prominently known as "Chamber Filter Press" or "Membrane Filter Press" OR Membrane Plate Filter". Filter Press works on the principle of pressure feeding for solid-liquid separation. Filter Press is successfully used for every industrial filtration for last more than 50 years. Filter Press installation cost is less than the rotary drum filters, belt presses or the centrifuges. Filter press are also easy to maintain, and operate then rotary drum filter, belt presses or centrifuges. Filter Press are less costly and have a longer life then rotary drum filter, belt press or centrifuge.Chamber Filter Press and its Typical Industrial Applications : Process Filtration and Plate Washing Dewatering Pharmaceuticals and Biological Filtration Chemicals Filtration Clarification of Processed Fluids

Filter Press

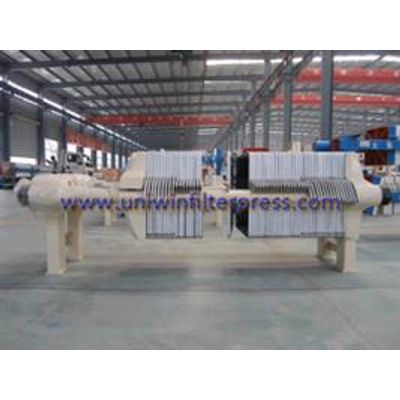

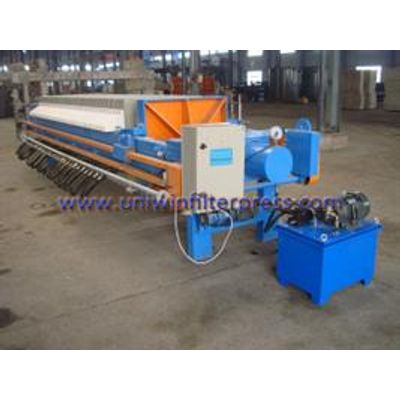

Uniwin - Model FP 100/1000 - Hydraulic Compress Filter Press

Hydraulic filter press is the most common type of filter press.Compared with Jack filter press or mechanical filter press ,it uses the dydraulic station to sequeeze the filter plates,the sequeeze pressure as reach as high as 30 Mpa.This way the filter press can get a good filtering result,and make the filter cake as dry as possible.

Uniwin - Model MFP 100/1000 - Membrane Filter Press

Compared to common hydraulic filter press ,Membrane filter press has its special filter plates ,ie the membrane filter plates . after filled with water or air thourgh the high pressure water pipes,the membrane can expand ,so that it will sequeeze the filter cakes in the filter chambers furtherly ,for feeding pump the pressure is around 0.6Mpa,however the water/air pressure to the membrane filter plates can reach around 1.2 Mpa ,so water in the filter plates will be sequeezed again and the filter cakes will be lower mositure and dryer.

Uniwin - Model XMZ 80/1250-30U - High Temperature Cast Iron Filter Press

Cast iron filter press is designed for high temperature slurry,the cast iron filter plates can bear high temperature more than 100 centigrade and can bear high pressure.

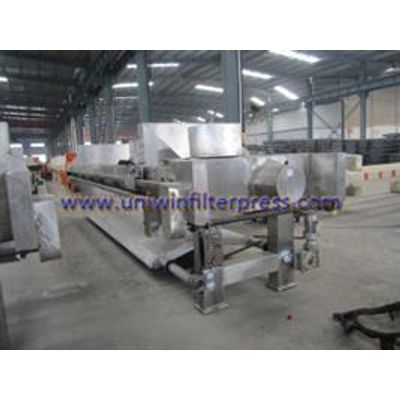

Uniwin - Model XMY 100/1000-30U - 304/316L Stainless Steel Filter Press

Acid proof 316l stainless steel filter press: The stainless steel filter press are widely used in pharmaceutical, biochemical, food and beverage, water treatment, brewing, petroleum, electronic chemicals, electroplating, printing and dyeing, environmental protection and other industries, is the ideal liquid filtration, clarification and purification treatment equipment for acid & Corrosion slurry.

Belt Filter

Uniwin - Model DY 1000 - Belt Filter Press

DY belt filter press is one kind fully automatic & high efficiency dewatering and solid liquid separation equipment through chemical flocculation (Polyacrylamide and anionic，PAM)and mechanical squeeze.It is being more and more widely used because of the characteristics of simple technical process,highly automacit,continous work,easy operation and variable speed etc.

Vacuum Belt Filter

Uniwin - Model DU 10/1000 - Rubber Vacuum Belt Filter

Structure: The main components of the DU rubber vacuum belt filter are :rubber belt, filter cloth, vacuum box, driving rollers, driven rollers,bend rollers,support rollers for rubber belt,feed hopper,cake discharge device,auto-rectifying system of filter cloth,drive system,filter cloth washing device,filter cake washing device and frame etc.
