Henan Yuda Valve Manufacturing Co.,Ltd products
Three Eccentric Butterfly Valves

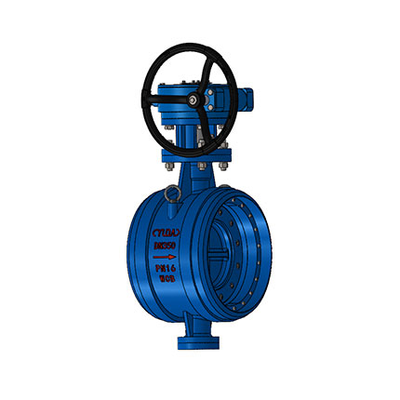

Yuda - Triple Eccentric Butt-Weld Metal to Metal Butterfly Valve
Design: BS EN593 or API609. Flange: GOST 12821. Face to Face: EN558-1 Series 14. Materials: Body: WCB/LCB/LC1/CF8/09?2C/20?/25?.

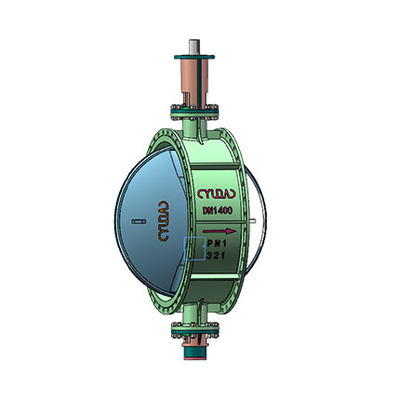

Yuda - Model DN600-2000 - Bidirectional Flange Triple Offset Butterfly Valve
Design: D343sP. Flange: Gost 33259-2015. Face to Face: BS EN558 Series 13. Media: Water, oil and gas.
Yuda - Model DN200-500 - Bidirectional Flange Triple Offset Butterfly Valve
Design: BS EN593. Flange: EN1092-1 GOST 33259-2015. Face to Face: EN558-1-Series 13; Series 14. Materials: Body and disc : GGG40/GGG50/WCB or other as request.a

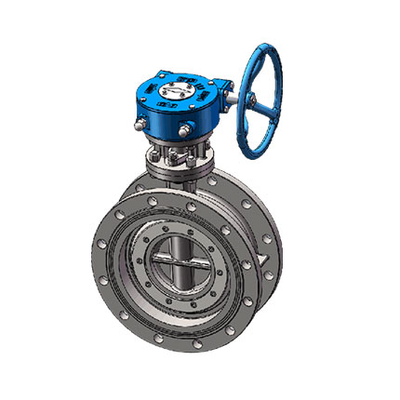

Yuda - Model DN50-DN300 - Double Flange Type Metal to Metal Butterfly Valve
Design: BS EN593 or API609. Flange: EN1092-1 /GOST 33259-2015 ASME B16.5/ASME B16.47. Face to Face: EN558-1-Series 13. Materials: WCB/LCB/LCC/LC1/CF8/CF8M/SS321/SS904L.
Yuda - Model DN350-DN500 D343 - Double Flange Butterfly Valves
Design: BS EN593. Flange: EN1092-1/GOST 33259-2015. Face to Face: EN558-1-Series 13; Series 14. Materials: WCB/LCB/LCC/LC1/CF8/CF8M/SS321/SS904L.
Yuda - Model DN600-DN2000 D343 - Double Flange Butterfly Valves
Design: BS EN593 or API609. Flange: EN1092-1 /GOST 33259-2015 o/ ASME B16.5/ASME B16.47. Face to Face: EN558-1-Series 13; Series 14. Materials: WCB/LCB/LCC/LC1/CF8/CF8M/SS321/SS904L.
Yuda - High Temperature Outside Bearing Butterfly Valve
Design: API609, ASME B 16.34, BS EN593. Flange: ASME B 16.5, ASME B 16.47, BS EN1092, Face to Face: API 609, , BS EN 593, and ISO5752. Materials: Body: CF8/CF8M/904L/SS321.
Double Flange Double Offset Butterfly Valve
Yuda - Model DN 600-DN 2000 - Double Flange Double Offset Butterfly Valve
Double-offset flanged butterfly valve according to the BS EN 593 standard. Long service life, and due to the wear-resistant, corrosion- and infiltration-proof seat with weld overlay. Suitable for use in water distribution, water treatment, in pretreated waste water, dams, in power aplants, industry and in pressure management.
Yuda - Model DN 200-DN 500 - Double Flange Double Offset Butterfly Valves
Double-offset flanged butterfly valve according to the BS EN 593 standard. Long service life, and due to the wear-resistant, corrosion- and infiltration-proof seat with weld overlay. Suitable for use in water distribution, water treatment, in pretreated waste water, dams, in power plants, industry and in pressure management.
Concentric Butterfly Valves - Flange Center Lined Buterfly Valves
Yuda - Flange Center Lined Buterfly Valves
Design: BS EN593. Flange: EN1092-1/GOST 33259-2015. Face to Face: EN558-1-Series 13; Series 14. Materials: Body and disc : GGG40/GGG50/WCB or other as request.
