Hendy Solutions products

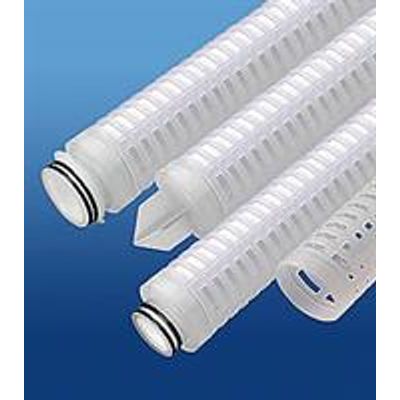

Microfiberglass pleated filter cartridges with polypropylene hardware. Beta 10/90% efficiency rated at labeled rating of 0.2 to 30 microns. High surface area pleated construction delivers long on-stream life. Excellent flow characteristics.

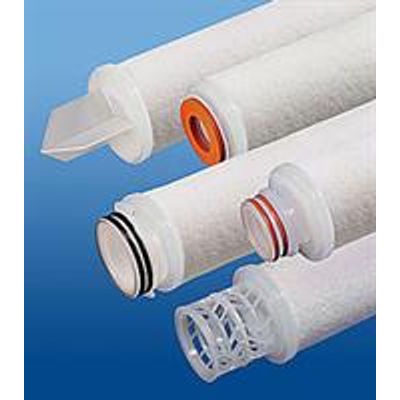

Absolute retention ratings from 0.5 to 70 microns. Multi zone melt blown depth filter with a graded pore structure for maximum dirt holding capacity. Thermally bonded fibers for high void volume and long on-stream life. Lot traceable filters come with certificate of conformance.. 100% polypropylene FDA listed materials of construction. All components meet USP Class IV criteria and are safe for use in pharmaceutical applications. Molded center core for higher temperature and pressure capability. Certified to NSF/ANSI 61 for materials requirements only – Component.

Multi zone melt blown depth filter with a true graded pore structure. Thermally bonded fibers for high void volume and long on-stream life. Available in precise 90% removal efficiencies from 0.5 to 75 microns. 100% polypropylene FDA listed materials of construction. All components meet USP Class IV criteria and are safe for use in pharmaceutical applications. Molded center core for higher temperature and pressure capability. Free of surfactants, binders and adhesives. Certified to NSF/ANSI 61 for materials requirements only – Component *.

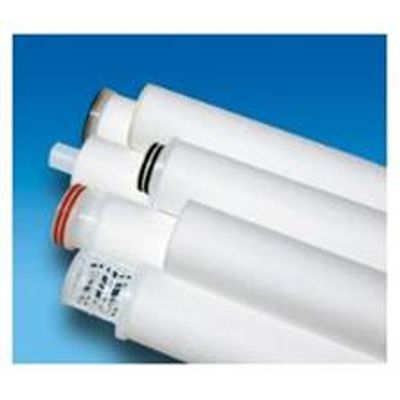

Melt blown polypropylene depth filter cartridges. Nominal ratings from 1 to 75 microns. Non-shedding extruded fibrous core. Graded pore structure for long on-stream life. Free of binders, adhesives and surfactants.

Microfiberglass pleated filter cartridges with polypropylene hardware. Beta 10/90% efficiency rated at labeled rating of 0.2 to 30 microns. High surface area pleated construction delivers long on-stream life. Excellent flow characteristics.

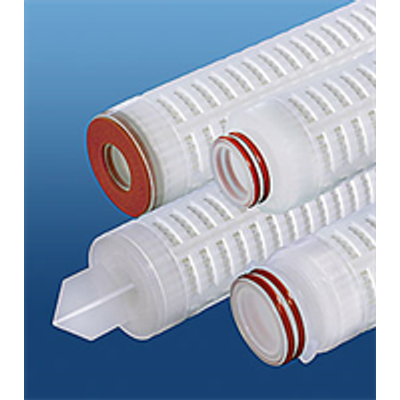

High surface area, polyethersulfone membrane filter cartridges for beverage applications. Consistent, reliable removal of contaminants and microorganisms. Absolute retention ratings from 0.2 to 1.2 micron. FDA listed materials of construction. Meets USP Class IV biological test for plastics. Lab validated bacterial retention performance. 100% manufactured, flushed, and integrity tested in ISO Class 7 cleanroom.

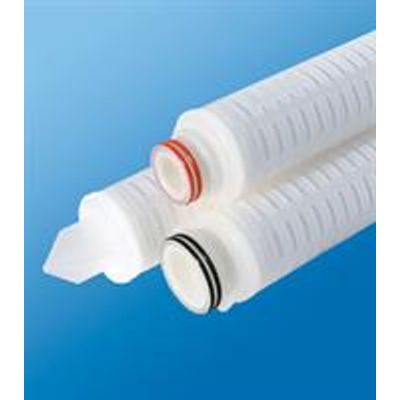

Economical polyethersulfone membrane pleated filter cartridges . Excellent flow rates and high throughputs. Absolute retention ratings from 0.05 to 0.65 micron. All polypropylene hardware. High dirt holding capacity minimizes changeout frequency.

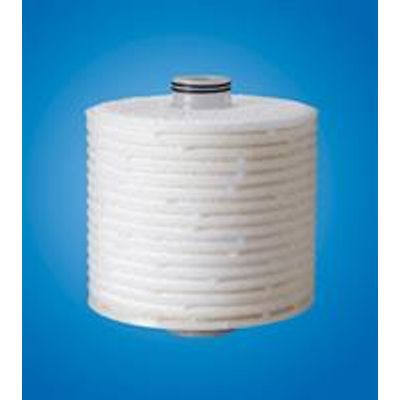

Depth filter modules. Cellulosic media with either DE or Perlite. Pharmaceutical grades available. Choice of flat gasket or double o-ring seal. Molded center core available for added strength. Water absorbing grades offered. Typical Applications.

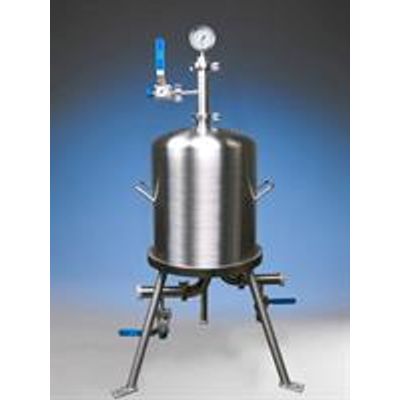

Sanitary housing designed for use with GSTACK lenticular depth filter modules. 316L stainless steel with 180 grit finish. 12 and 16” diameters. Accommodate 1-4 modules. Split dome in 30 and 40” for ease of cleaning. Select from double o-ring or flat gasket styles. 1.5” tri-clamp inlet/outlet.
