Hengst SE products

Filters for a variety of media (air, oil, fuel, water), Custom-made production (splash water, rust particles, fibres), From filtration to separation (separation for reuse).

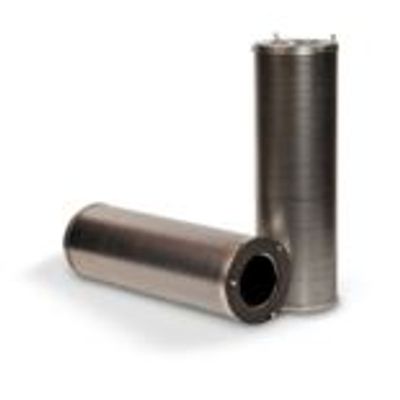

Activated carbon cartridges consist of concentric perforated cylinders steel sheet or stainless steel or synthetics. The carbon content of the steel sheet cartridges can be replaced, connection is performed via 3-point bayonette.

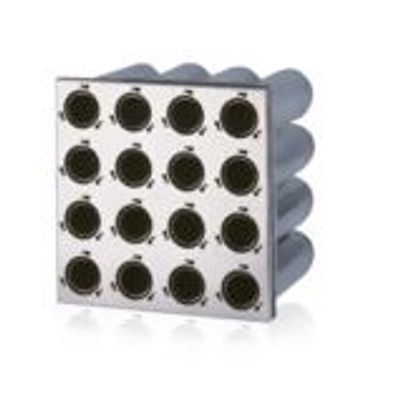

Holding frame CKG is a holding frame for activated charcoal cartridges. This frame comes in various sizes and is optionally avaiable in galvanized or sainless steel.

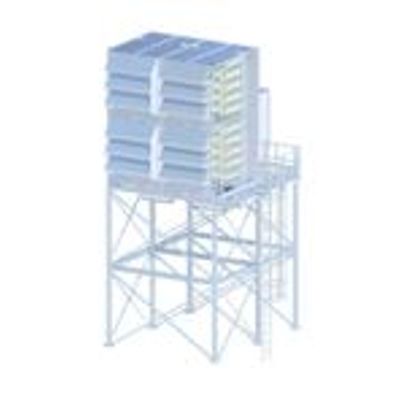

In regions with relatively low dust concentration, a static filter system is the most practical solution. Usually a two-stage arrangement with pre- and fine filter is selected in order to achieve the required filter class and endurance. Customarily, bag filters are employed in the first and compact filter elements in the finefilter stage. For long-sustained periods of high air humidity and mist, a droplet eliminator is additionally integrated. In zones with extremely high open wetness, such as in coastal regions, an additional upstream coalescer filter system is recommended.

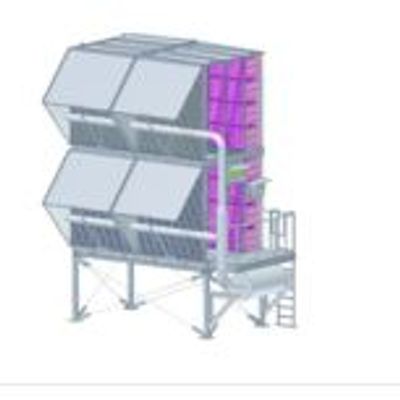

Self-cleaning pulse filter plants are employed wherever there is high dust concentrations, like in desert areas and especially burdened industrial regions. The dust particles are separated on the surface of the filter medium. The dust cake that forms is effectively removed on-line by counter-current pulse-jet cleaning with compressed air. There are the horizontally arranged pulse filter cartridges (Cross Flow System) or vertically-arranged (Table Filter System) systems depending on the local conditions. DELBAG® pulse filter systems are operated without an additional anti-icing system.
