HEROSE products

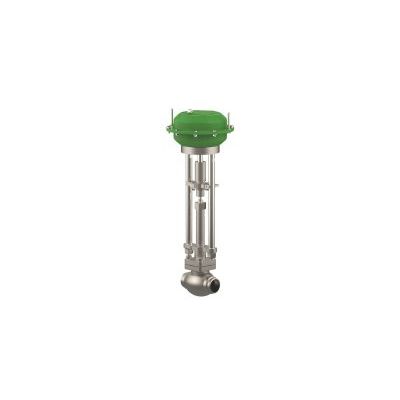

Cryogenic-Globe Valves with Pneumatic Actuator, (DN100=PN40, DN150 = PN25)Stainless steel body and topworkActuator - air opens, spring closes or contrary`live loaded` gland packing` cleaned and degreased for oxygen service ` - the actuator is not cleaned andDegreased for oxygen.

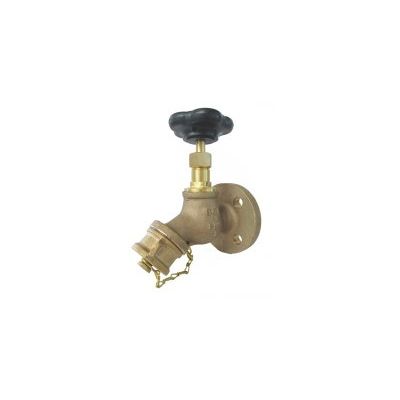

Bronze body, screwed topwork in brass, Outlet with cap and chain, Part No. 03199.0150.0060, Inlet: round flange drilled acc. to DIN PN 6, Part No. 03199.0320.0060, Inlet: square flange drilled acc. to DIN PN 6.

Bronze body and topwork with maintenance-free gland packing (O-Ring) and non rising stem flanged connection acc. to DIN EN 1092-3 PN10 or PN16.

Control valves, pn16, din 3844Control characteristic: linear,bronze body, screwed topwork in brass, with opening indicator, part no. 04020.x.0000, female thread connection (g) acc. To iso 7-1 rp.

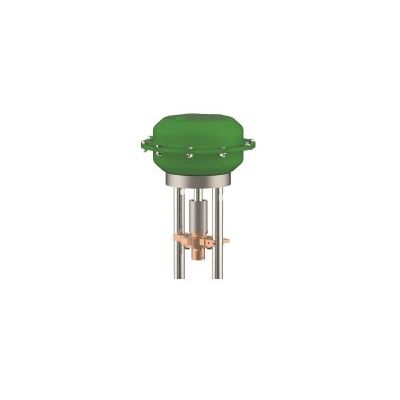

Pneumatic Actuators for Control Valves; Actuator - spring to open, air to close maximum air pressure for operation 6.0 bar g Actuator coating outside - Epoxy resin. Available options - on request only: Pneumatic actuator with override handwheel Ambient temperature limit: 20°C / -4°F (253K) up to +80°C / 176°F (353K).

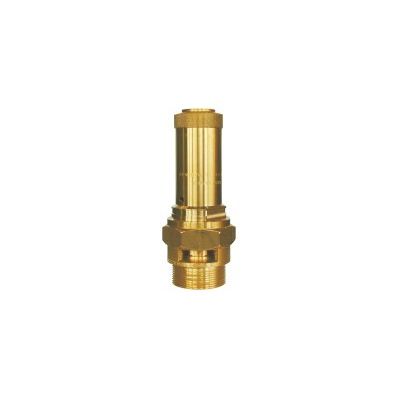

Safety Valves, brass, type tested TÜV-SV.1090 D/G. Standard safety valve with FPM valve seal, open bonnet, with discharge holes, with lifting device Inlet: male thread type G (BSPP) acc. to ISO 228.

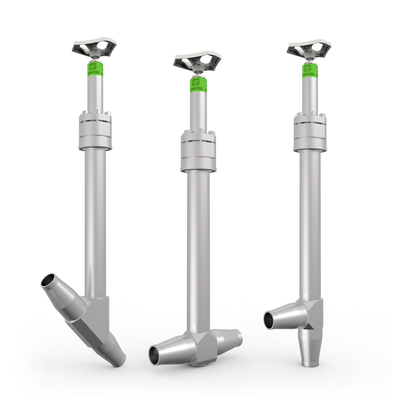

This cryogenic top-entry shut-off valve from HEROSE is engineered with a stainless steel housing suitable for applications demanding extreme low temperatures, down to -269°C (4K). It is primarily designed for the isolation of process streams in the cryogenic temperatures encountered in the industrial handling of hydrogen, air gases, steam, and liquefied natural gases (LNG). The valve features a 'live-loaded' spindle seal to ensure reliable sealing even under thermal expansion conditions. Manufactured to withstand pressures of up to PN63, the housing materials include EN 1.4571, which corresponds to ASTM 316TI stainless steel, known for its robustness and resistance to corrosion. Optional features include bellows seal configurations and monitoring options for added protection against leakages. The valve is available in different construction types, including straight-through and angle designs, with dimensions specified along with flow coefficients for precise operational control.

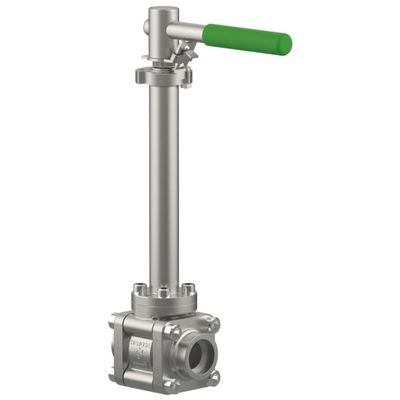

The HEROSE Type 15C01 is a cryogenic ball valve designed for use in low temperature applications involving air gases, vapors, and cryogenic liquefied gases, including LNG. This valve features a unidirectional flow design with a relief bore and is available with weld sockets or threaded ends suitable for stainless steel pipes as per ISO 1127 or ASTM A312 standards. It operates within a temperature range of -196°C to +65°C, making it well-suited for demanding thermal environments. The construction materials include robust options such as A 351 CF3M for the body and 316L stainless steel for the ball. The valve's upper extension and other components are crafted to ensure durability and reliability even in harsh conditions. Additional equipment like locks for closure devices is also available. This valve is oil and grease-free for oxygen use and is engineered to strict EN ISO 5211 standards, ensuring secure operation in cryogenic environments.
