Heyco products

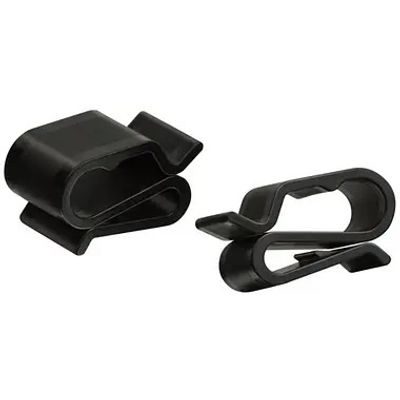

Low cost option to popular SunRunner Wire Management Clip. Route 2 PV wires in one clip. Slide on to the edge of a PV Solar panel. Lock in place in any 7×10 or larger oval wire management mounting hole. Made of rugged Nylon 6/6, F1-rated for outdoor use. For added security, also available in super-tough Nylon 12 material.

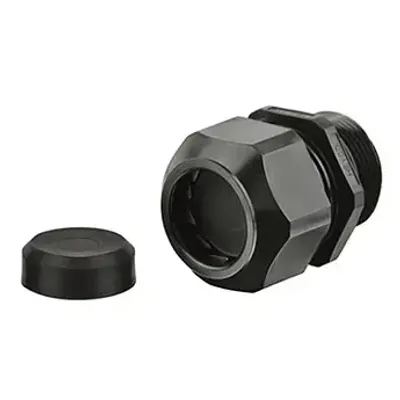

The New Tear-Away Liquid Tight Cordgrips install as a plug to keep rain, insects and air contaminants outside of an enclosure that is waiting at field installation sites or even within a manufacturing setting for a prolonged period of time. Note: UL Certifications apply only when used as a cordgrip, not as a plug; When used as a plug, we meet IPx8 @ 2.6 PSI for 24 hrs, and IPx5. Units remain internally clean and moisture free until cable installation as a Heyco standard, and market-leading Cable Gland with full functionality that you have come to expect. Simply puncture the gland edge with a flat-head screwdriver and Tear-Away the ID for cable pass through like a standard Heyco Cable Gland.

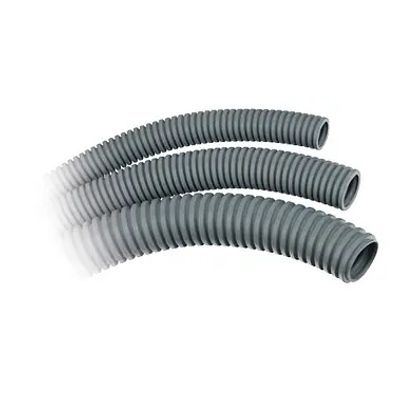

Slit design allows side entry and encirclement of preassembled harnesses and capillary tubes. Unique slit design allows for wire breakouts. Heyco-Flex V is lightweight and flexible, yet durable enough to meet your wire management requirements. Multiple sizes 1/4″ to 1-1/2″. All nylon construction resists salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. Quick installation; cuts with utility knife, PVC cutter or Heyco cutting tool #8340.

Durable, nonconductive and rigid PVC construction. Phthalate free. Compatible with any UL approved fittings. Suitable for encasement in concrete or in walls and ceiling (per NEC code).

Smooth inside for easier wire pulling; no hazardous sharp edges or burrs; will not damage conductors. Lightweight and lower installed cost. Integral rigid and flexible PVC construction. Use with nylon Heyco-Flex Connectors; Straight or Snap-in, or Sweep. Also use with NPT Quick Twist Fittings. Straight or Sweep. May also be used with Heyco’s Metallic Fittings for Liquid Tight Conduit: Straight-Thru or 90° Sweep. Resists corrosion, abrasion, oil, water, acid, metal shavings, and rough environments.

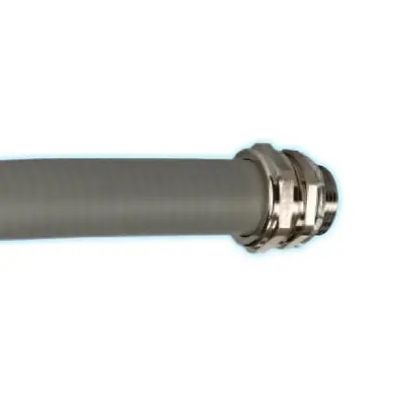

Constructed of PVC jacketed, continuously interlocked hot dipped zinc galvanized steel core for exceptional crush and corrosion resistance. Used with standard liquid-tight fittings for easy installation. IP 67 Rated when installed with approved connectors. Durable, sunlight resistant and flame retardant thermoplastic PVC jacket that resists heat, oil, and chemical breakdown. Approved for both exposed and concealed locations, direct burial and in concrete. Approved as an equipment grounding conductor if the total grounding path is 6 ft. or less and the circuit conductors are protected by over 20 amps for 3/8″ and 1/2″ and 60 amps or less for 3/4″ through 1-1/4″. Suitable for use in hazardous locations per NEC Articles 501 Class I Div. 2, Article 502 Class II Div. 1 & 2, Article 503 Class III Div. 1 & 2. Complies with UL Standard 360 File No. E18917; CSA C22.2 File No. 158897; and NEC Article 350. DFARS Compliant.

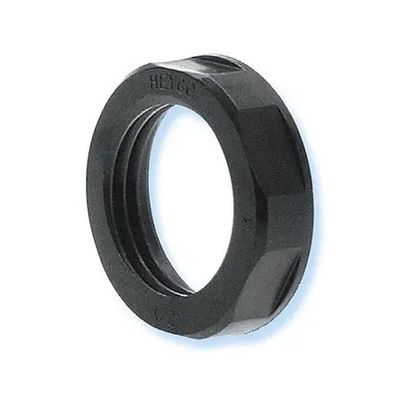

Flammability Rating94V-2 Standard-Consult Heyco for VO material. Material: Nylon 6/6. Temperature Range: -40°F (-40°C) to 221°F (105°C).

Heyco LabKits are perfect for product design departments, environmental labs, and for all prototype work. The Heyco HVAC/R & White Goods LabKit #4 contains an assortment of our most popular fittings, conduit, bushings & other accessories. Heyco also offers LabKits for Liquid Tight Cordgrips, Strain Relief Bushings, Hole Plugs, HEYware, and Grommets. Parts in LabKits are available in various sizes and colors.

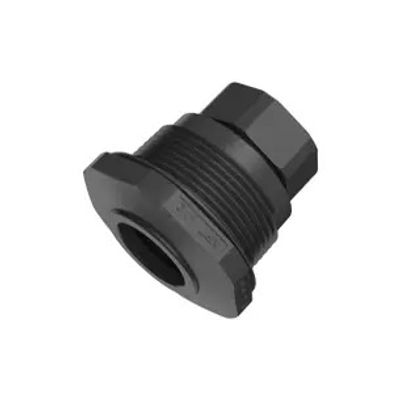

The revolutionary new Low Profile Cord Grip incorporates traditional sealing nut design blended with knockout hole size to offer a Cord Grip with a Low Profile look that is sleek. The low profile design provides the traditional Heyco performance in a package that can be used where height real estate is limited. The low profile design is tamper proof from outside of an enclosure providing security on the cable assembly. Integral Sealing Ring ensures a superior seal at the clearance or threaded mounting hole location, every time. IP 68 rated. Approval for NEMA 4, 4X, 6 and 6P applications – Pending.

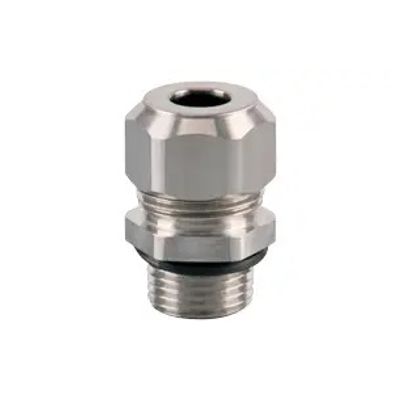

HEYCo-molded gripping finger/gland technology accommodates the widest cable range over the fewest sku’s. Rolled grease-free threads prevent galling and allow for multiple assemblies and disassemblies. No messy, unsightly thread lubrication required. Self-retaining sealing rings eliminate the need for an O-Ring groove, thus reducing cost. Approved for NEMA 4, 4X, 6 and 6P applications. Sealing washer required for through hole applications only. Typical applications: Control cabinets, marine, car washes, hot tubs, instrumentation, carpet cleaning machines, food processing equipment, underground for direct burial or submersed up to 130 ft. (70 PSIG). Ideal for corrosive environments. Constructed from corrosion resistant 303 stainless steel. Resistant to salt water, acids and most chemicals. Locknuts not included. To order locknuts separately, see NPT Metal Locknuts. Patent pending. DFARS Compliant.
