Heyl & Patterson products

When looking for the best in rail unloading equipment, look no further than Heyl & Patterson’s Rotary Railcar Dumper. With high speed, semi-automatic dumping –- plus cycle times as fast as 35 seconds per car, and a dumping rate of 10,000 tons per hour in a tandem configuration – it’s the ideal choice for dumping of rotary-coupled cars. Control is made simple with just one operator and is ideal for random car or unit train applications.

When your operations need to off-load random, rotary and non-rotary coupled cars, you need Heyl & Patterson’s high-speed, C-Shaped Rotary Railcar Dumper, or “CR” Dumper. Able to operate at low power and combined with fast cycle times and full positioned access, the CR Dumper can help you achieve maximum productivity with maximum results.

Heyl & Patterson offers a complete line of railcar movers that provide state-of-the-art modern operation and efficiency. Without locomotive assistance, our railcar movers can be used for a variety of loading, unloading and other types of applications. These machines push or pull railcars manually or automatically, offering more unloading capabilities.

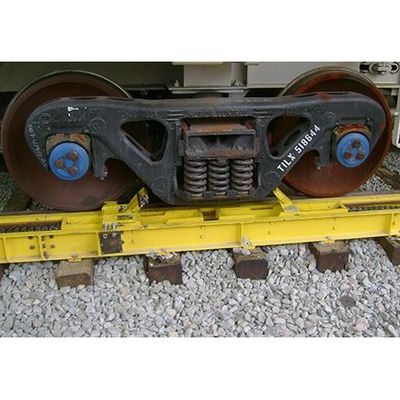

The Heyl & Patterson CUB is a compact, capable and cost-effective mechanical drive that is custom designed to move single railcars or groups of cars with sturdy construction and safe, reliable operation. Backed by Heyl & Patterson’s experienced engineers and technicians, The CUB is environmentally sound, easy to install and operate, less costly than larger systems and requires very little maintenance. It is the ideal solution for small to mid-size loading, unloading and repositioning applications.

Heyl & Patterson’s Train Positioners & Indexers can be used for a variety of railcar handling, loading, & unloading applications for any industry. Frequently used in the handling of crude oil, frac sand, general purpose sand, ethanol, ethane, butane, minerals & waste, these machines are capable of moving a loaded train (up to 200+ cars, or a single car) for precise distances at variable speeds, and can also be used in conjunction with our Rotary Railcar Dumper. A train positioner can be retrofit into existing installations, and are used where fast automatic or semi-automatic cycle times can eliminate the need for operator intervention. Train positioners are often employed in high capacity, rotary-coupled, unit train railcar applications.

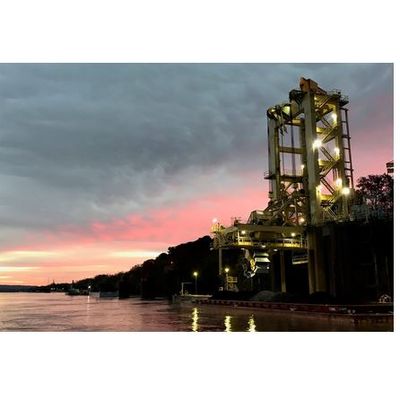

The Heyl & Patterson Continuous Barge Unloader (CBU) is designed to unload materials at free digging rates of up to 5,000 tons per hour, maintaining a much higher average offloading rate than other types of barge unloaders. The horsepower requirements are much less than pneumatic systems, making it easy to operate, and the CBU does not degrade fragile commodities.

Often referred to as “The Workhorse of the Rivers,” Heyl & Patterson’s Grab Bucket Barge Unloader is field proven to offer maximum capacity with free digging rates of up ato 1,500 tons per hour. Environmentally sound, the stationary or traveling style units can accommodate dust suppression or collection systems, depending on your site requirements, and can also be used in complement with barge hauls.

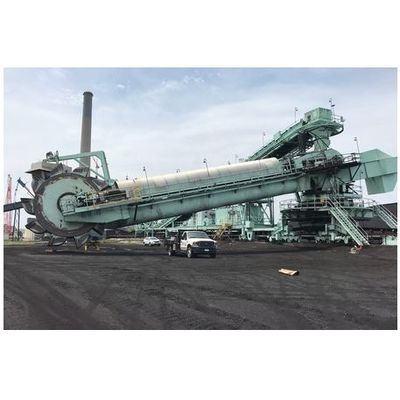

Heyl & Patterson has been engineering stacker reclaimers since the 1960s. HP’s Outdoor stacker/reclaimers are custom designed to meet site specific requirements such as capacity, yard limitations or environmental conditions. H&P’s light to medium duty stacker reclaimers range between 2,000 and 4,000 tons per hour, handling materials from coal to iron ore pellets and are located in the most rugged environments, including steel mills, coal yards and transfer sites.

The innovative Heyl & Patterson Hammermill is your answer to frozen and oversize material that hamper your railcar unloading process. The safe, rugged, energy efficient hammermill helps clear frozen materials from clogged grates and grizzlies, eliminating the need for expensive crushing equipment and keeping site personnel out of hazardous areas. The labor intensive, dangerous job of manually cleaning the grizzly is eliminated.
