Hi-Force Limited products

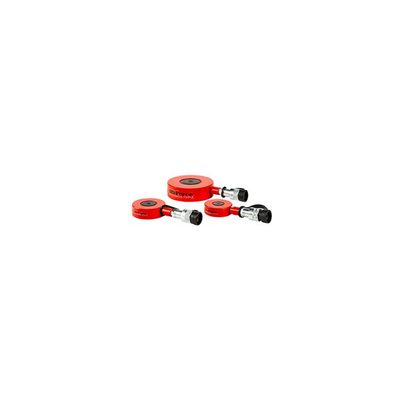

The HVL pancake cylinder range combines a very low closed height with a 0.24 inch stroke, providing a precise adjusting and lifting force in very confined work areas. Ideally suited for applications requiring alignment of machinery, turbines, heavy structures etc. All models are single acting, load return design. The base of all HVL cylinders must be fully supported during use.

Hi-Force PCS pump and cylinder sets provide the simplest and most cost effective way to start your job immediately. All sets comprise of a Hi-Force hydraulic cylinder (wide choice available), suitable Hi-Force manual pump and a two metre hose with high flow, quick release coupler.

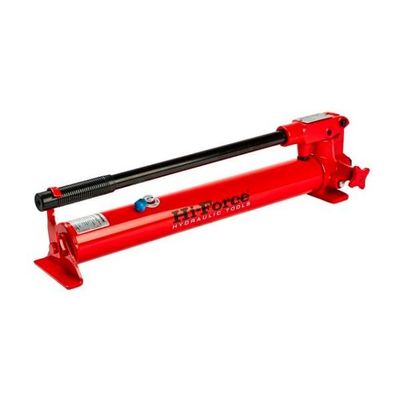

The HP manually operated pump range offers a choice of single or two speed operation and all models are supplied complete with a pre-filled oil reservoir, ready for immediate use. All models have a maximum working pressure of 10000 psi and the range includes pump models suitable for use with either single acting cylinders or tools. The HP range offers the ideal solution for applications where completely independent, portable hydraulic power is required. With low handle effort characteristics for easy operation, all models are of strong durable construction. Hi-Force HP manually operated pumps have a proven track record industry wide and offer excellent value for money in portable hydraulic power. A full range of system components suitable for use with HP manually operated pumps are available.

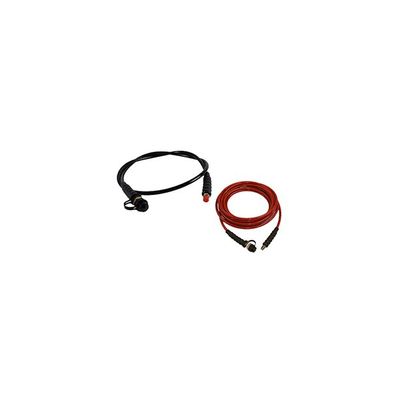

Hi-Force high pressure hydraulic hoses provide the vital, high quality, safe connection for your hydraulic equipment. Available in black and red and supplied complete with an ergonomically designed protective strain reliever at both ends, Hi-Force high pressure hoses are suitable for working pressures up to 10000 psi with a 4 : 1 factor of safety.

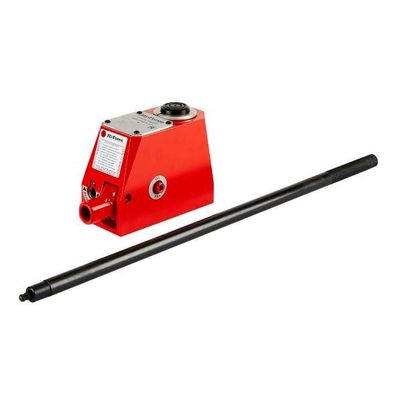

The JAS range of plain ram lifting jacks are used extensively in maintenance, construction, heavy plant and machinery applications. Constructed predominantly of lightweight aluminum alloy with all critical functioning parts manufactured from high quality steel, these high quality jacks are the proven industry standard.

The Hi-Force ToughLift jacking system offers users the easiest and safest method of lifting material haulers in the mining and construction industry and locomotives in the railway industry, when critical maintenance and breakdown repair work is required. Suitable for lifting even the largest earth haulers in the world, the Hi-Force ToughLift is available in 55, 110, 165 and 220 ton lifting capacities.

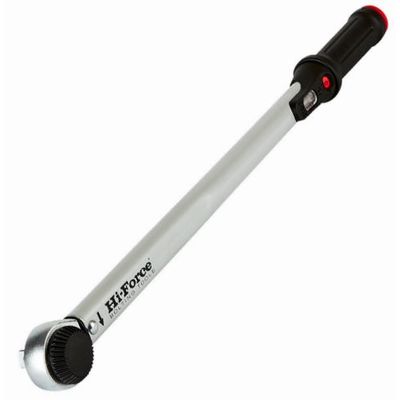

The TWM range of industrial manual torque wrenches offers 7 models with torque capacities from 7 to 630 lbf.ft (10 to 850 Nm) having square drive sizes from 3/ 8” to 3/4”. All models are designed and manufactured to meet or exceed the highest demands of industry and are marked with a unique serial number and supplied with a calibration certificate.

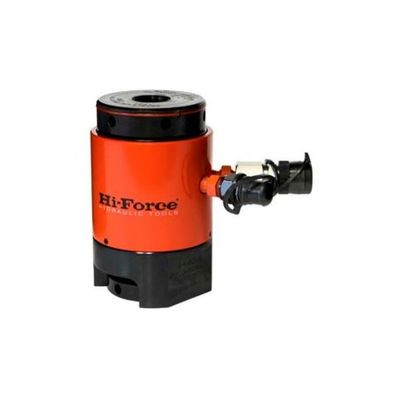

The SBT imperial range of hydraulic bolt tensioners, offers all of the features and benefits of our standard STS range, but with the added feature of spring assisted return hydraulic pistons. Designed primarily for topside operation, this additional spring return piston feature will reduce bolt tensioning cycle times considerably, as the tensioner piston will automatically retract, after the hydraulic pressure is released. The range currently comprises of 22 models, suitable for standard size bolts from 1¼” to 4” diameter.

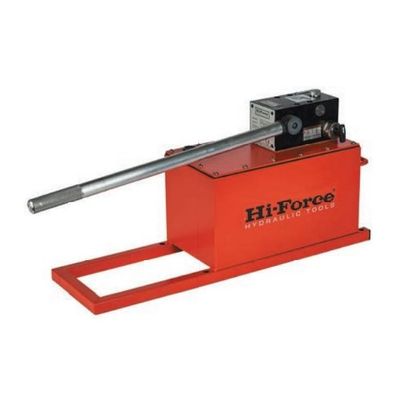

The Hi-Force MHX series of manually operated two speed hydraulic pumps are suitable for use in several applications including hydro-testing of pipes, pressure vessels, valves, and also back-up systems and other pressure retaining equipment, prior to commissioning. The pump`s two stage piston design gives a high flow low pressure stage of 3.05 in3 up to 725 psi pressure and incorporates a reliable smooth manual changeover from low to high pressure output.

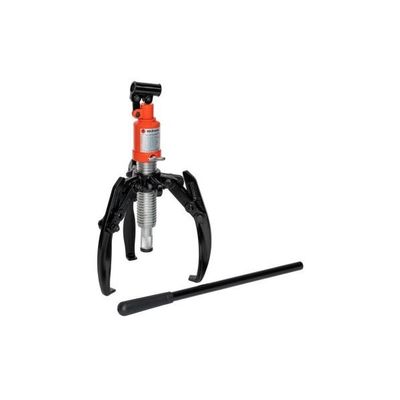

The SCP range of self-contained hydraulic pullers offers a choice of 3 models, each with integral manually operated hydraulic pump and multi-position operating handle. The completely sealed hydraulic system of the SCP pullers enables use of the tool in any position and all models are easy to operate and provide an efficient solution for many pulling applications.
