Hidritec products

Production and delivery of compact purification plants, easy to install and transport. These plants are designed in a container structure, inside a container or on a frame. Generally, plants include a process of lamellar sedimentation for turbidity reduction, filtration systems and a final process which consists on water disinfection before delivery and distribution.

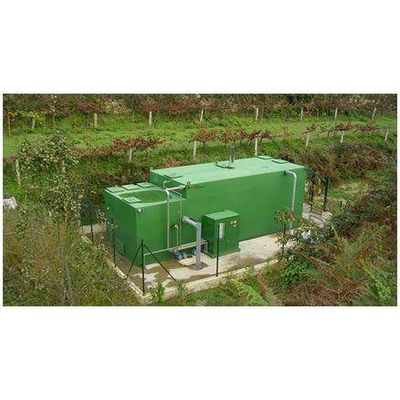

HIDRITEC designs and manufactures different wastewater treatment plants: compacts, modular and in containers which cover the basic needs of a medium or large population. They are easy to transport and install.

MBR equipment, completely modular and transportable in a sea-based 40-foot container for wastewater treatment using biological membranes. Biological membranes technology enables a high quality of purified water, totally disinfected without using any secondary decanter or any further tertiary treatment for its reuse (chlorination, ozone, UV, etc.)

Mobile water treatment plants from HIDRITEC provide drinking water immediately, for a population in between 4000 and 8000 inhabitants, ensuring the high quality standards with fully proven technologies. They are suitable for humanitarian emergency situations. These plants are designed in trailers to make their transportation easier, using land transport with trailers or maritime transport with 20` containers. They can be designed for the collection of river water or ground water with a high salt content. They include the possibility of power supply with solar panels.

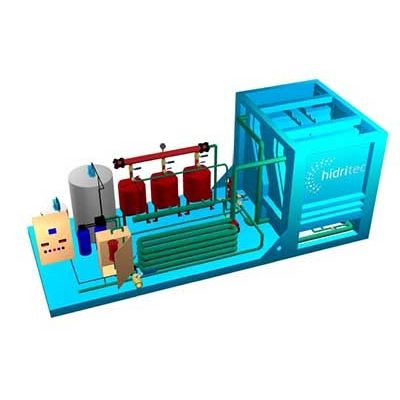

For water supply in small towns and cities we have compact water treatment plants already assembled in Skid for an easier transportation both sea-based and land-based. This type of plants are adaptable to standard measures in containers, with the possibility of it being included or not in the supply.

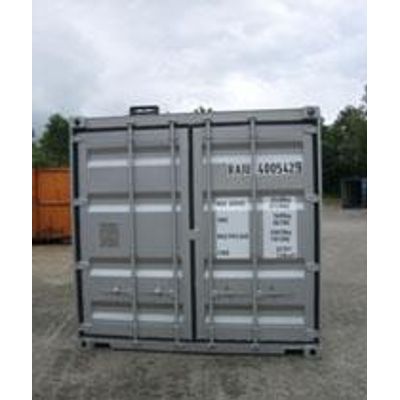

The reverse osmosis plant in container allows the treatment of potable water that is high in dissolved solids, brackish water or even sea-water. The plant is assembled in a maritime container of 20-foot or 40-foot, depending on the model, making transportation and the location of its final destination easier.

Mobile containerized plant, designed by HIDRITEC for water treatment and bottling system. Its function consists on treating water, to make it suitable for human consumption, and bottle it in plastic bottles to make their distribution easier. The plant is designed in a 40-foot container, which makes it easier to transport and assemble. Ideal for areas where it is difficult to reach potable water, work camps, emergency situations or simple distribution and selling of purified water in bottles.

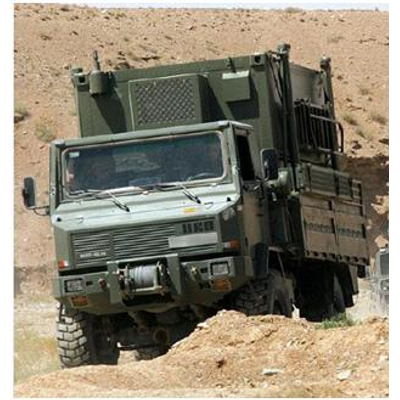

Water purification vehicles with four-wheel drive 4x4 allow a fast and efficient way of treatment and transport of water, with a capacity up to 3 cubic metres of treated water.

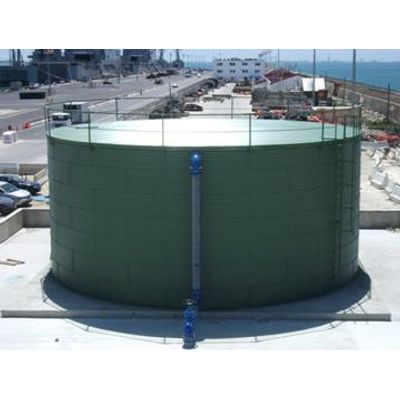

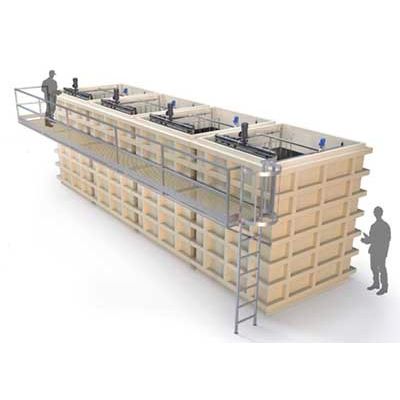

Pre-assembled tanks make transportation easier and minimize civil work performance. Drinking water storage. In the case of high-level tanks it can be distributed by its gravity flow without the need of a pressure pumping system. Wastewater settlings. We have pre-assembled circular settlings, adaptable to perimeter drive sludge scrapers. Pre-assembled tanks for full aeration chambers in waste water treatment plants. These tanks have a circular base, and corrugated galvanized metallic steel plating walls, as in CTESE–A from the CTE, with additional protection both external and internal.

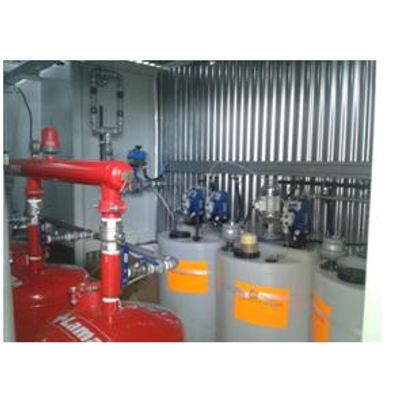

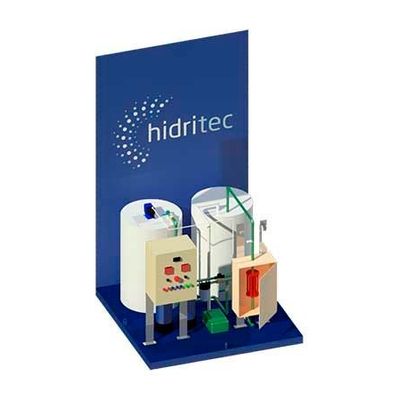

Using water, salt, and electric power, electrolytic chlorine can be generated for its use in drinking water or disinfection in general. In some countries, there is a problematic issue on the transportation of commercial sodium hypochlorite, which decomposes easily in a few weeks.
