Hidroconta, S.A. products

Centaurus, are smart water meters composed of a mechanical body which includes the measuring chamber through which the water flows, and an electronic indicator with integrated LCD display and communications included (Nb-IoT, Cat M1, GPRS) being IP68 watertight.

Single jet water meter Atlantis for domestic water consumption with MID homologation certified by the Spanish Metrological Centre (CEM). Atlantis is manufactured in copper alloy body and includes a pulse output pre-equipment. Straight sections are not necessary at the Atlantis water meter input or output U0-D0. Ratio accuracy R160. ATLANTIS water meters ranges from DN 13 to DN 20.

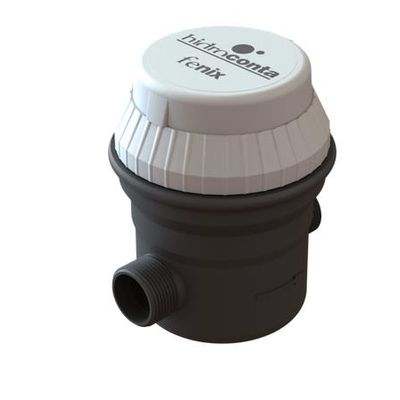

Volumetric water meter FENIX for portable water with MID approval and CE marking. Fenix is manufactured in brass body for DN 13 to DN 40 diamteres and composite for DN 13 to DN 15. Straight sections are not necessary in Fenix water meter input or output installation U0-D0. Fenix water meters ranges from DN 13 to DN 40.

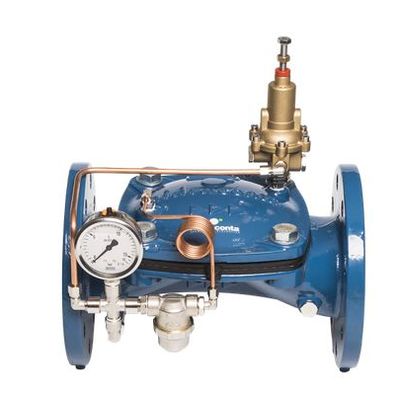

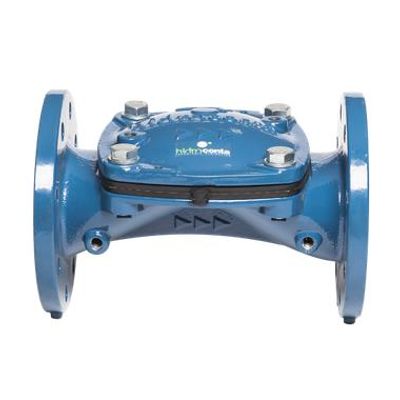

The Leopard Hydroconta valve could be configured as follows: pressure reducer, pressure sustainer, electrovalve, pressure relief, level float valve… Leopard valves are available from DN 20 to DN 300 diameter. Leopard membrane hydraulic valve with body in nodular cast iron. It has a smaller structural dimension; it reduces equipment weight. The new hydraulic design improves hydraulic valve KV conditions.

LEOPARD hydraulic diaphragm valve with accessories. These valves are designed to open and close water flow through a 3 ways valve. Leopard with accessories valves are available from DN 20 to DN 300 diameter.

LEOPARD hydraulic diaphragm valve with float. This valves control the reservoirs filling. Leopard with float level valves are available from DN 20 to DN 300 diameter.

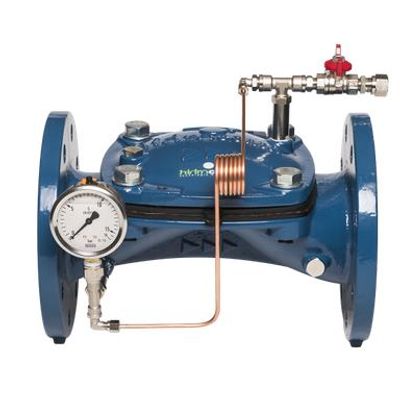

LEOPARD pressure relief hydraulic diaphragm valve. The valve is designed to open automatically if the installation exceed a maximum settled pressure.

The Hidroconta backwash valve combines in a single body the two valves that are traditionally used, reducing hydraulic fittings and connections thanks to its special actuation system. Possibility in line and angle and many couplings: thread, flange and victaulic.
