Higuchi Group products

UV spectrum peak 254 nm. Germicidal lamps efficiently emit a large amount of ultraviolet rays 253.7nm (nanometers) which have excellent germicidal effect. Quartz germicidal lamps are made with robust Quartz glass which makes it the preferred choice for heavy duty commercial/industrial applications. Quartz germicidal lamps can be made in various custom size and forms making it a preferred choice for optimizing the lamp performance to meet your requirements.

UV spectrum peak 185 & 254nm. The ozone lamp(a short-wave germicidal lamp) made of quartz glass transmits UV rays at 185nm wave length that generates ozone(free radical), as well as germicidal UV rays at 253.7nm. The ozone lamp is best used for air disinfecting, deodorizing, surface & chamber disinfection, TOC reduction in water, photomask and display cleaning. Ozone can be hazardous when the amount exceeds limits. We can control the amount of ozone by splice fusing together non-Ozone quarts and Ozone glass at various ratios. This ratio can change the amount of Ozone from 10% to 100% of desired ozone gas output. We use high quality ozone glass to meet industrial heavy duty requirements.

UV spectrum peak 254 nm. Germicidal lamps efficiently emit a large amount of ultraviolet rays 253.7nm (nanometers) which have excellent germicidal effect. Soft glass germicidal lamps have structures and electrical characteristics similar to those of general fluorescent lamps used for illumination but instead use ultraviolet transmission glass which efficiently transmits ultraviolet rays at 253.7nm. These lamps are made with standarized specification and available to replace other common UV lamps.

UV spectrum peak 306 nm. UV-B lamps emit ultraviolet rays between 280nm and 360nm (at peak 306nm). The spectral energy distribution suits to test the ultraviolet resistance of paints, plastics and rubbers. They are also used for the special light sources for inspection and analysis.

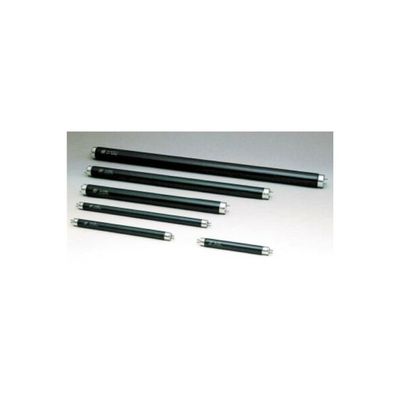

UV spectrum peak 352 or 368 nm. These lamps efficiently emit near ultraviolet rays at 315nm- 400nm which have strong photochemical and fluorescent effects. They have special deep blue filter glass which absorbs visible rays and transmits near ultraviolet rays. There are two types of phosphor are used with radiation peak at 352nm and 368nm, respectively.

UV spectrum peak 352 or 368 nm. BL (Blacklight) lamps, emit a highly concentrated radiation between 315nm and 400nm. There are two types of phosphor are used with radiation peak at 352nm and 368nm, respectively. They are used for trapping insects, luring lamps, photosensitization and photochemical reactions.

Our plug and play UV module comes with Stainless steel constructed lamp frame with an reflector. We can accommodate various lamp length from 212mm up to 843mm. Mounting hardware variations are available upon request. The purpose for this product is to facilitate the incorporation of UV lamps into your final product. The kit comes with lamp housing frame, socket and ballast.

Cold Cathode UV lamp kit. Cold cathode lamps are designed to withstand frequeny on/off operation. Lamp diamiter is 3mm and the lamps can be made in various lengths. These lamps are useful in small areas. Our kit comes with 2 lamps and 1 driver with universal 100V-240V input. miniature & low profile UV lamp for disinfection of small spaces. Cold Cathode electrode is recommended for frequent On/Off operation and long service life. CCUV lamps can be made in linear or U shape in various length, UVC or Ozone producing – call for options.

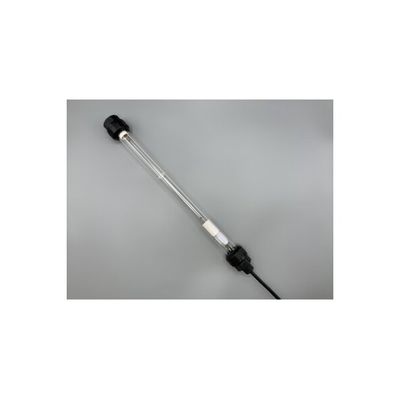

Utilitarian design waterproof jacket with power cord. Insert lamps inside the jacket for moisture or water proof applications. Extra waterproof silicone applied to all critical components. UV lamp length can be modified to your specification. up to 60″ long.

UV LED Evaluation Kit – Plug & Play, Module Produced in the USA. UV spectrum peak 265 nm. This module is designed for plug and play evaluation purposes. Comes with heatsink, on/off switch & AC Adapter(universal 100V-240VAC input).
