Hirox-USA Inc products

The Hirox digital microscope is a system with a main unit, lenses attached to a camera that maximizes lens performance, optimal lighting for objects, precisely controllable stands, usability-rich applications, and comfortable observation. Furthermore, ACS communications makes it possible to control speed based on lens information, instant measurement on the monitor, automatic judgment of shooting conditions according to the operation of an operator, and to observe, capture, and measure by intuitive operations of the user. Hirox Makes it possible to observe, capture and measure with smooth, intuitive operation.

Hirox developed a new and unique telecentric zoom lens covering a wide zoom range from 10x to 200x with guaranteed measurement results.

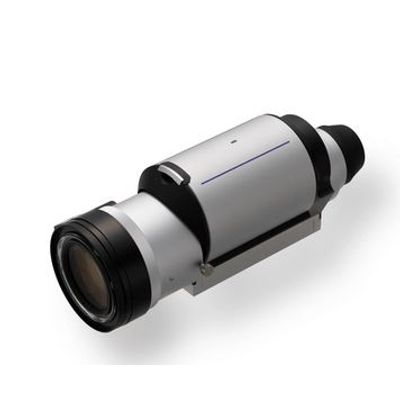

This high-performance zoom lens features compact body and high resolution image covers a total magnification range from 6-320x, while offering a large optical depth of field.

Hirox created a completely new angle stand featuring multiple integrated sensors and a high precision 80 mm motorized Z movement, providing the highest level of accuracy for various applications. The XY stage can be manual or motorized (50 x 50 mm or 100 x 100 mm) for automatic XYZ acquisition. The stand also integrates built-in transmitted illumination, controlled by the HRX-01 software, increasing the observations capabilities, as well as antivibration feet for improved stability. A rotary plate can be added to spin the sample in any direction!

Special made horizontal motorized stand for inspection of vertical objects with counterweight:

High-precision large Stand with adjustable horizontal Arm. On wheels or attached to a table, it facilitates observations of large-size objects: L-shape or rotational ball-head extension for 360° free angle lens position. Adjustable columns for any alternative work. Carrying-case and more options.

New high precision stand with an XYZ-axis designed for motorized & manual observation over large areas. Customizable depending on required height and area specification.

Metal and other reflective samples can be especially difficult to image, as wherever the light source is will be reflected on the sample. With this accessory however, the lighting is coming from 360 degrees around the sample, giving even lighting across the sample. This is especially useful for challenging samples like metal ball bearings.
