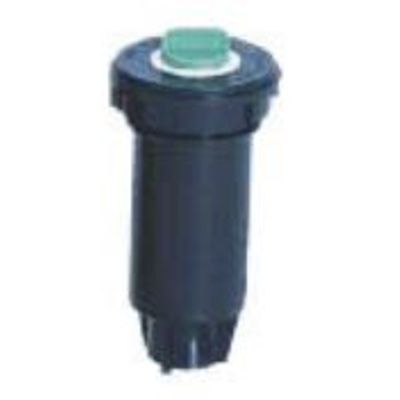

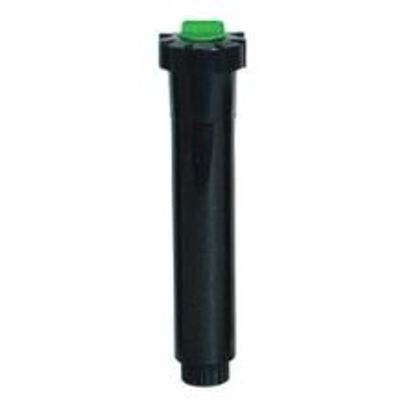

Heavy duty internally supported wiper Seal. Patented lateral discharging flush plug. High impact virgin ABS plastic construction of body, piston, and cap. Stainless steel retraction spring. Spring-loaded ratchet on all models for directional adjustment of Spray pattern. Easy service from top of head. Available with female (red flush plug) or male (green flush plug) threaded pistons.

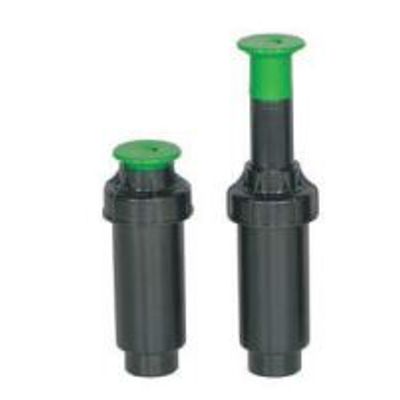

Double acting telescoping piston. Two independent heavy duty stainless steel. retraction Springs. Integrally molded  Leak-Stopper  gaskets present any body-cap leaks. Designed for shallow trench and labor savings. Patented Lateral discharging flush plug to aid installation. High impact virgin AB5 plastic construction of body, pistons and cap. Spring-loaded ratchet on all models for directional adjustment of Spray pattern.

Unique integrally molded   Leok-Stopper gasket prevents any body-Cap leaks. Cop and seal utilize a  co-molded  design which provides internal support for the long term integrity of the wiper seal. High impact virgin ABS plastic construction of body, piston and cap. Patented Lateral discharging flush plug to aid installation. Heavy duty stainless steel retraction spring. Spring-loaded ratchet on all models for directional adjustment of Spray pattern. Available with female (red flush plug) or male (green flush plug) threaded pistons.

Efficient design for maximum value. Internally supported wiper teal design. Patented lateral discharging flush plug. Stainless steel retraction spring. High impact virgin ABS plastic construction for body, piston and cap. Spring-loaded ratchet on all models for directional adjustment of spray pattern. Pressure activated chevron seal design minimizes flushing blow by and seals at low pressures. Male threaded piston, to accept fixed or adjustable arc nozzles with female threads.

Provides the ability to utilize an in-stem pressure regulating d« (PRD) for above ground shrub adapter applications.

Features: Motched precipitation rates. Full uniform coverage. Color coded for easy radiui identification. Stainless steel screw for flow and radius adjustment. High impact virgin ABS plastic construction. Available with female or male threads to fit all HIT. RainPro and other brand Pop-Up spray bodies. Screen included with each nozzle. No special tools required for arc adjustment. Large Droplets.

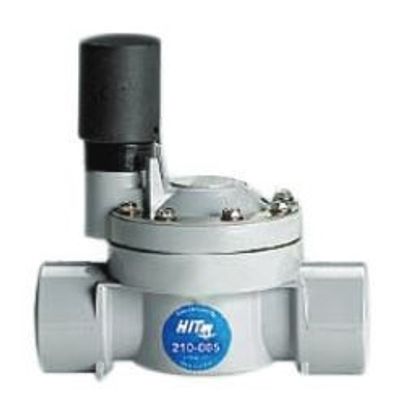

Virgin PVC material construction (N5F approved material). Internal manual bleed lever standard on all valves, Manual bleed can be removed for  tamper prooF operation. Heavy duty diaphragm. 1 1/2  and 2  provided with both bottom (angle) and side inlet. All stainless steel fasteners and components. Standard 24 VAC 60 Hz solenoid (black wire) Hex plunger design for sandy water conditions. 3/4,1  available with or without flow control. 1 1/2  and 2  standard with flow control stem. Suitable for residential and commercial applications.

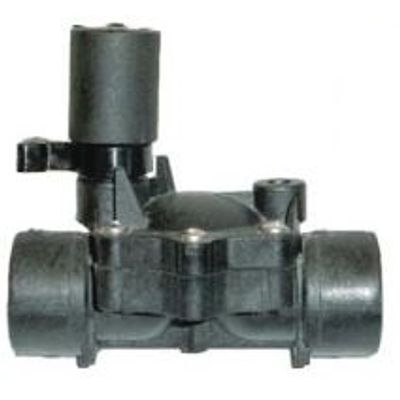

A straight flow volve has a patented open flow design. Thee are no 90 degree angles that the flow of water has to maneuver around. This allows for flow rotes as far low a5 1 GPH. The diaphram inside does not cause hammering when closing like a typical valve.

1" 33% Glass filled Nylon Straight. Flow Valve Female Thread inlet and outlet Overall Height: 4 - 1/2" Overall Width: 3 - 1/2" Overall Length 5".

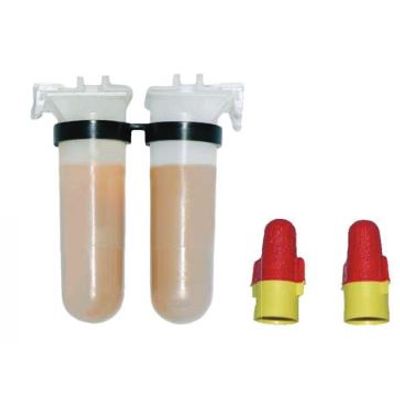

Features: Do not store above 1508F. U.V. Stabilized. Insulation material is non-toxic, waterproof and petroleum free.. Operating temperature 20-150`F. Voltage 36V Maximum.
