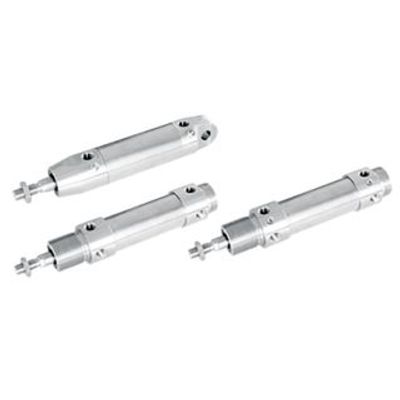

The standard UNIC Stainless Cylinder conforms to the DIN/ISO 6432 specification, featuring diameters ranging from Ø12 to Ø25 mm. These cylinders incorporate a permanent magnet and come with end stroke-cushioning, with the Ø25 variant offering adjustable end stroke-cushioning. Built for robust performance, these cylinders are fitted with nitrile rubber (NBR) or polyurethane (PU) packings and a POM piston. They can withstand maximum pressures up to 10 bar and operate effectively within a temperature range of -20°C to +80°C. Designed with a standard stroke length between 10 and 500 mm, these units are constructed from AISI 316L stainless steel, providing benefits such as chemical resistance and heat resistance. Optional features include ATEX certification, a variety of mounting options, and custom adaptations. Replacement kits are available to facilitate easy maintenance.

The Standard UNIC Stainless Cylinder, compliant with DIN/ISO 15552, is engineered with precision and durability for industrial applications requiring robust pneumatic solutions. It features a diameter range from Ø32 to Ø125 mm, embracing a design that integrates a permanent magnet and adjustable end stroke cushioning to enhance operational efficiency. Constructed with nitrile rubber (NBR) or polyurethane (PU) packings and a POM piston, it is capable of withstanding a maximum pressure of 10 bar and operates within a temperature range of -20°C to +80°C. Its standard stroke ranges from 10 to 500 mm, providing extensive customization options like AISI 316L enhancements and ATEX certification. Specific variants offer chemical resistance, heat resilience, and integrated adapters for versatile industrial employment. Complementing its robustness, renovation and repair kits are available to ensure prolonged service life.

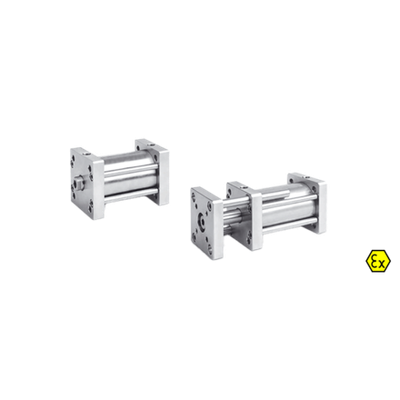

The UNIC Stainless Steel Compact Cylinder is engineered to DIN/ISO 21287 standards, accommodating diameters from 20mm to 100mm. It features a permanent magnet for precision applications, adjustable end stroke cushioning, and integrates nitrile rubber (NBR) and polyurethane (PU) packings with a POM piston. Specifically designed to handle a max pressure up to 10 bar and operational temperatures ranging from -20°C to +80°C, this cylinder is adaptable for diverse environments. It can be configured for ATEX certification, allowing for operation in explosive areas, and offers an FDA-approved piston rod seal, which is critical for environments demanding FDA compliance. Additional options include chemical and heat resistance, AISI 316L construction, and customizable features. The standard stroke varies from 10mm to 500mm, enhancing its versatility in a multitude of engineering scenarios.

The Stainless Steel Cylinders from HNC Group are designed in compliance with DIN/ISO standards, featuring adaptability with Festo equivalent models, specifically in the Ø32 - Ø63 mm range. These cylinders incorporate a solid construction using AISI 316L stainless steel for enhanced chemical and heat resistance. Each unit comes equipped with a permanent magnet, adjustable end stroke-cushioning, and is assembled with components like nitrile rubber/polyurethane packings and a POM piston for reliable performance. With a maximum operating pressure of 10 bar and a temperature range from -20°C to +80°C, these cylinders suit harsh industrial environments. Standard stroke lengths vary from 10 mm to 500 mm, and customizable options, including renovation and repair kits, are available. These features make them suitable replacements for Festo cylinders, ensuring long-lasting durability and robust performance under challenging conditions.

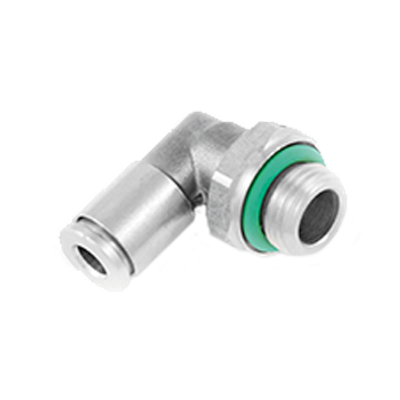

HNC Group A/S specializes in the manufacturing of stainless steel pneumatic fittings and cylinders, adhering to DIN/ISO standards. These components, including parallel swivelling elbow fittings, straight male fittings, swivelling tees, reducers, and various unions, are crafted from AISI 316 (EN 1.4404) stainless steel, ensuring excellent corrosion resistance and strength. The fittings are designed with various thread and tube sizes to meet different pneumatic system requirements. Their compatibility with Festo systems highlights their adaptability in industrial applications. Custom cylinder solutions are available, offering tailored options to fit specific operational needs. HNC Group maintains a comprehensive datasheet library and repair manuals, ensuring clients have full access to product details and maintenance guidelines. As part of the Momentum Group, HNC Group combines robust engineering with a global perspective to deliver high-quality, reliable fittings and cylinder solutions.
