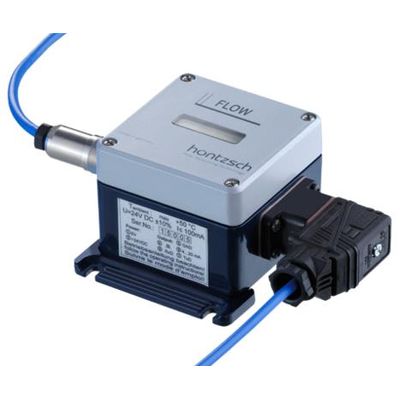

Probe ZS25 ... ZG4 - standard for fixed measuring - with connection housing. Cylindrical vane wheel sensor / insertion probe with probe diameter 25 mm and integrated transducer UFA (optional). Probe material: stainless steel. Working temperature range up to +550 °C. Suitable for fixed measuring of actual flow velocity v [m/s] and flow rate V/t [m³/h, l/min] in clean gases and liquids, briefly also in particle-laden mediums. Signal evaluation with integrated or separate transducer UFA, flowtherm NT.2, flowtherm Ex and system units.

Vane wheel measuring tube with inside diameter 9.7 mm and integrated transducer UFA (optional).  Probe material: stainless steel. Working temperature range up to +100 °C. Suitable for fixed measuring of flow rate V/t [m³/h, l/min] in clean gases, briefly also in particle-laden mediums. Signal evaluation with integrated or separate transducer UFA, handheld flowtherm NT or flowtherm Ex and system units.

For connection with probes FA/FAR (ZS, ZSR, TS, TSR) and measuring tubes FA Di/FAR Di. Conversion of actual to standard flow / flow rate. For ATEX category 2G (zone 1) applications, an additional isolation / suppy unit LDX2 is necessary. With flow-proportional analog output 4-20 mA, relay (potential-free, two-way contact) for use as limit value, quantity pulse or indication of +/- flow direction. Self-diagnosis according to NAMUR NE43. Power supply 12 VDC, 24 VDC or 230 VAC. Configurable via PC interface RS232 and UCOM software.

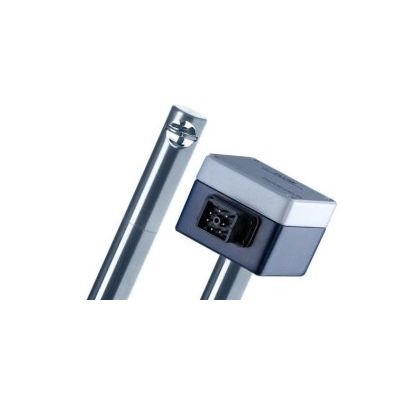

Vortex probe VA40 with sensor head diagonal dimension 40 mm and transducer UVA integrated in the connection housing. Probe material: stainless steel. Working temperature range up to +100 or +180 °C. Suitable for fixed measuring of actual flow velocity v [m/s] and actual flow rate V/t [m³/h] in clean as well as condensate and particle-laden gases. Signal evaluation with integrated transducer UVA.

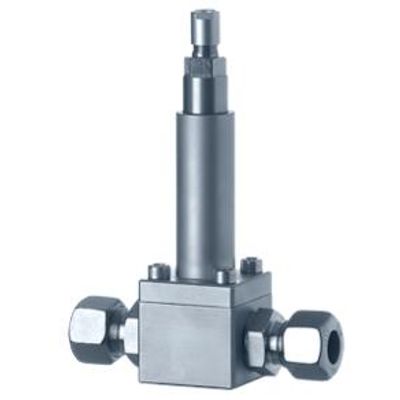

Measuring tube VA Di with inside diameter 25, 40, 50, 80 and 100 mm. Probe materials: stainless steel, Hastelloy, titanium. Working temperature range up to +180 °C. Sensor length 200 mm. Process connection with flange according to DIN EN 1092-1 Form B1. Suitable for fixed measuring of actual flow rate V/t [m³/h], flow velocity v [m/s] in clean as well as condensate and particle-laden gases. Signal evalutaion with integrated or separate transducer UVA or system unit µP-Vortex. An additional isolation / supply unit is necessary for ATEX applications category 1/2G and category 1/2D (zone 0, zone 20).

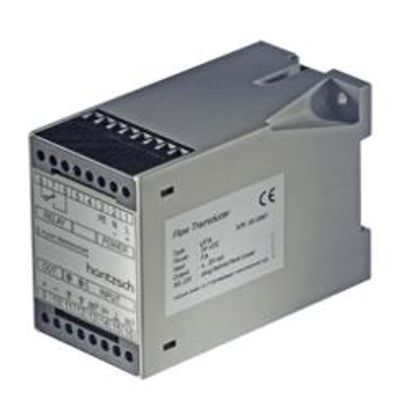

Transducer UVA in top-hat rail mounting for connection with probes VA and measuring tubes VA Di. Conversion of actual to standard flow/flow rate. For ATEX category 2G (zone 1) applications, an additional isolation / suppy unit LDX2 is necessary. With flow-proportional analog output 4-20 mA, relay (potential-free, two-way contact) for use as limit value, quantity pulse or indication of +/- flow direction. Self-diagnosis according to NAMUR NE43. Power supply 12 VDC, 24 VDC oder 230 VAC. Configurable via PC interface and software UCOM.

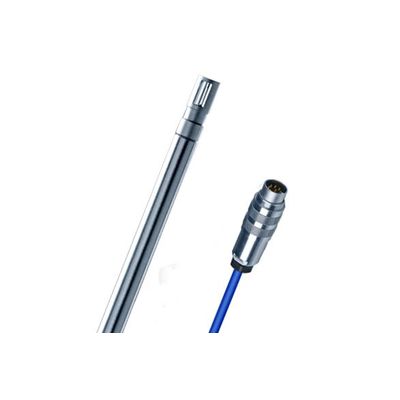

Thermal Probe TA10 ... ZG1b - standard with connection cable - for connection to separate evaluation units. Suitable for portable or fixed measurement of the standard flow velocity v [m/s], the standard flow rate NV/t [m³/h], the mass flow [kg/h], the standard volume NV [m³] and the flow through mass [kg].

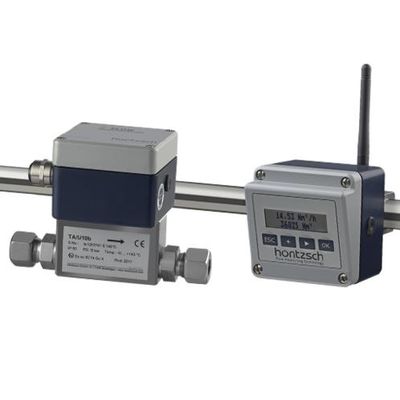

Measuring tube TA Di with inside diameter 8, 16, 21.6, 27.2, 35.9 and 41.8 mm and transducer U10b in sensor connection housing. Via web interface, measuring instruments having a WiFi interface can be accessed by a web-enabled device, performance data can be checked and transferred and the device settings can be customised according to the measuring task. The unit can be used for a variety of gases even in ex-applications categories 3G and 3D (zone 2 and zone 22) That way there is no need for recalibration or return to the manufacturer when there’s a change of gas. The corresponding gas characteristics stored in the device simply have to be selected on the sensor.

Two free adjustable analog outputs 4-20 mA, relay output (limit value or quantity pulse), M-Bus output.  Power supply 24 V DC. Configurable via an optional keypad in the housing lid or via WiFi interface.

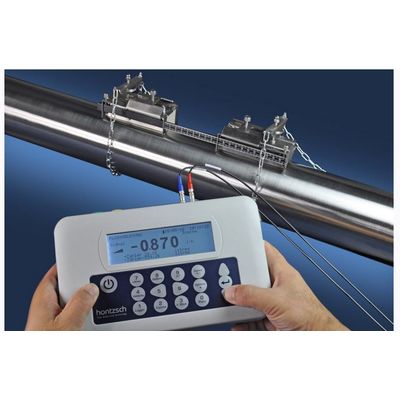

This principle of measurement is also referred to as the transit time difference method. For measuring the flow rate of liquids using this technique, ultrasonic pulses are sent and received simultaneously through the medium in the direction of flow and against it. The sensors work alternately as transmitter and receiver. The transit time of the acoustic signals filtered through the medium in the direction of flow is shorter than that against it. The difference in transit time Δt is measured and can be used to calculate the average flow velocity of liquids filtering through the acoustic path. After measuring the flow velocity and with the pipe cross-sectional area, volumetric flow can be calculated.
