HottScan Room-Modeler Software

Room modeling: Fast and intuitive software for modeling planes. Determination and documentation of dimensions, measurement of certain spots and the control of complex conditions. As soon as ground or ceiling plane is created all other planes can be created with the useage of the prism function. Each plane or opening can be allocated to a component. Interfaces: Export of quantity analytics via CSV files. Geometries can be exported in Collada and DXF/ DWG files to CAD programms. E.g. for room design, bathroom and building planning. Tachymeter function: The tachymeter function generates additional laser measurement spots to the automatic aquisition programms. This add-on simplyfies the aqusition of planes and areas and enables more flexibility.The positioning of the laser can be effected with the integrated remote control of the HottScan room modeler or by manual positioning.

HottScan Project CAD-Modeler Software

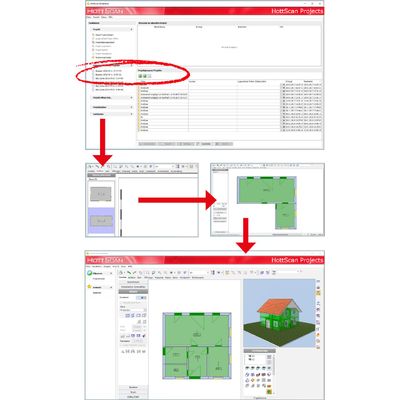

Merger of exports of the HottScan Modeler rooms to a complete building, adaption of the building model and transfer for further evaluation. HottScan Projects assembles exported HottScan Modeler rooms to a complete building model. Rooms are placed on the floorplan with drag and drop. The user profits from the automatic room allocation function e.g. at door openings. Additional functions such as rotating and moving of 3D components walls, doors and windows are accessable. Manual and automatic wall functions enhance the construction of a complete floorplan. The building model can be adapted and used for further calculation with the technical software of HS/ETU.
