Huada Heavy Industry products

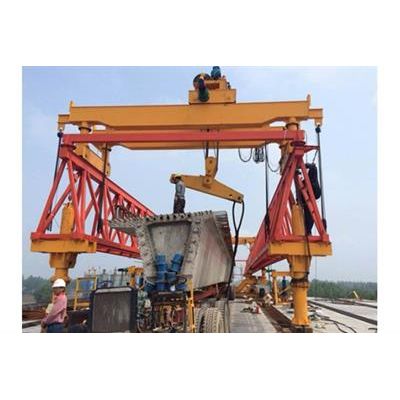

Beam Launcher is widely used for erection of precast concrete girders with almost all types of cross-sections, including I-beams, T-beams, U-beams, etc., It is designed for highway and railway. A Beam Launcher is commonly used to lift the pre-cast beams in place. The precast beams are delivered with a Beam Trolley on top of the completed deck to the rear of the Beam Launcher, and subsequently picked up by the Launcher for placing into the final position. There are 2 types of Beam Launchers supplied by Huada Heavy Industry: the Single Box Beam Launcher and the Twin Truss Beam Launcher.

Precast Segmental Method with a Segmental Launching Gantry (LG) is a very popular way used for the construction of bridges and viaducts with small curve and long span. Segmental Launching Gantries are used for erecting Precast Segmental Bridges and it uses Balance Cantilever Method or Span by Span Method. Launching Gantry can be designed as Under-slung or Overhead Model to meet the site requirements.

Precast Segmental Method with a Segmental Launching Gantry (LG) is a very popular way used for the construction of bridges and viaducts with small curve and long span. Segmental Launching Gantries are used for erecting Precast Segmental Bridges and it uses Balance Cantilever Method or Span by Span Method. Launching Gantry can be designed as Underslung or Overhead Model to meet the site requirements.

MSS is a Quick. Reliable & Economical Solution for Bridge Construction, it`s a fully self-supporting formwork system that builds the bridges with span-by-span cast-in-situ method, it builds and relocated by itself from span to another span. MSS is very useful when Segmental construction or other cast-in-place methods are not economical or are not possible. MSS can be used for Double-T, Box girder or U-Shape bridges. MSS become most economical when the bridges to be built are below 50 spans.

Huada Heavy Industry s system of operating is the Movable Scaffolding Systems.This system is designed as an Overhead or Underslung Systems which consist of a cost-effective Self Movable Formwork and Falsework System. MSS is modern equipment designed to reduce cycle time and manpower with safety being a paramount concern for all types of bridges designed with cast-in-situ methods of construction. Our MSS can be configured to many bridge cross-sections, including single, double, and even triple Box Girder. U-section. T-section and more.

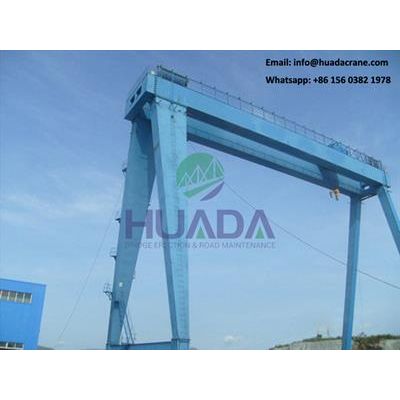

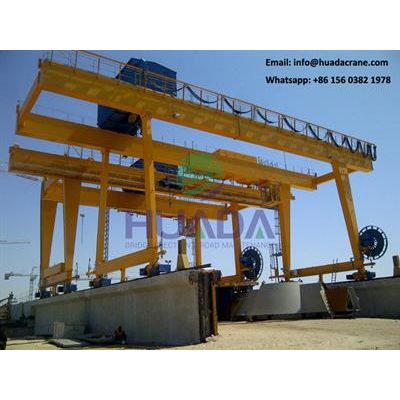

Huada Heavy Industry Gantry Crane, are designed for a comprehensive use in the fabrication industry including casting yard or fabrication yard and most of the case it is outdoor usage. Standard and special portal cranes are manufactured and supply by Huada Heavy Industry. Huada Heavy Industry currently is supplying crane with the capacity up to 450 ton. With our experienced in house design and technical team we are anxious to get a new order on supplying special design crane over that current limit.

Huada Heavy Industry also specializes in the design, manufacturing and supply of Transporters for transportation of precast full span girder, pre-cast segment or other structures. These Tyre Transporters" lifting capacities normally range from 50t to 900t.

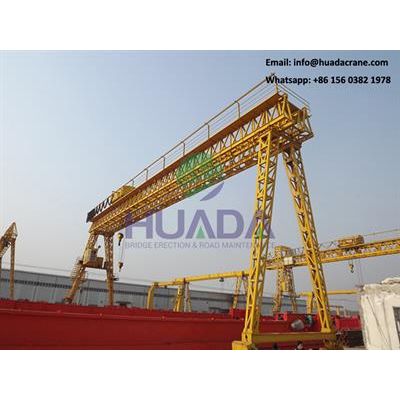

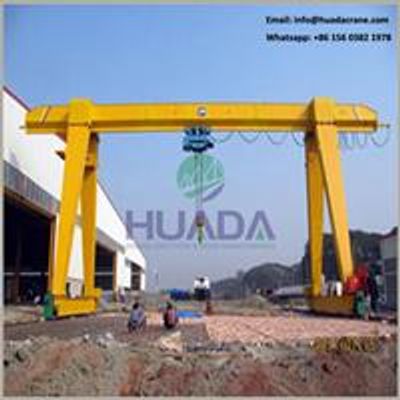

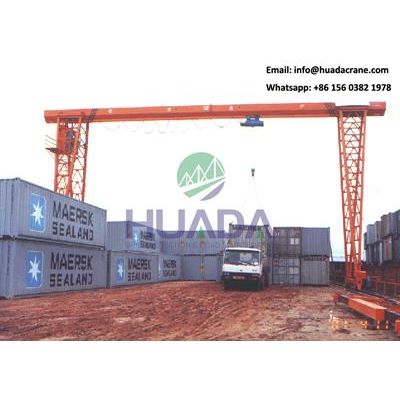

Gantry Crane is widely used outdoor on the big work yard to lift material. There is no need to install the steel stand column, therefore. Gantry Crane will not occupy too much ground space. Generally. Gantry Crane can be divided into 5 kinds, namely Single Girder Gantry Crane. Double Girder Gantry Crane. Truss Type Gantry Crane. Box Type Gantry Crane, and Semi-Gantry Crane.
