Huba Control AG products

The type 400 pressure transmitter, with its  proven ceramic lever technology, has  adjusted temperature compensated sensor  signals and is available with a voltage output. The (VDC) voltage output is an amplified, linear  signal suitable for direct processing in electronic control systems. The sensors are ideal for continuous level measurement in washing machines, dishwashers etc. OEM Pressure sensor 400 0 ... 10 - 100 mbar.

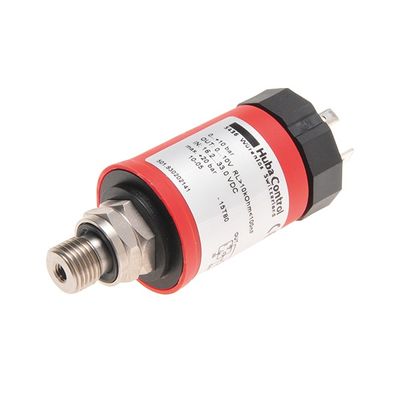

Type 501 pressure transmitters, with partially automated production processes, are suitable for larger quantity industrial OEM applications. Various pressure and electrical connections, together with several standardised output signals, provide suitability for a wide variety of applications. OEM Pressure sensor 501 -1 ... 0 - 60 bar.

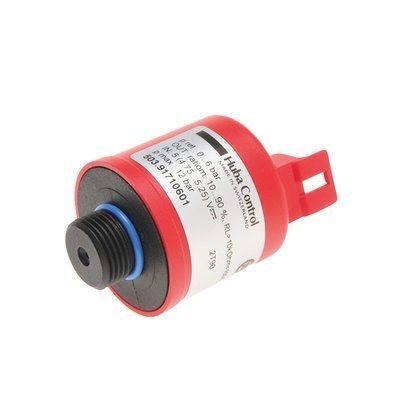

The relative pressure transmitter type 503 with proved ceramic technology features, adjusted and amplified sensor signals which are available as standardized voltage outputs. Designed for large batch production in OEM applications.

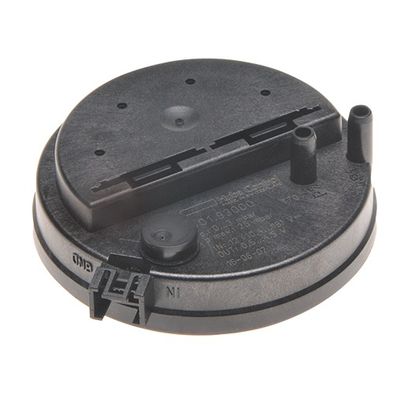

The type 401 pressure transmitter, with its unique proven ceramic lever technology, has adjusted, temperature-compensated sensor signals, available as a voltage output. The (VDC) voltage output is an amplified, linear signal suitable for direct processing in electronic control systems. OEM Differential pressure transmitter 401 0 ... 3 - 8 mbar.

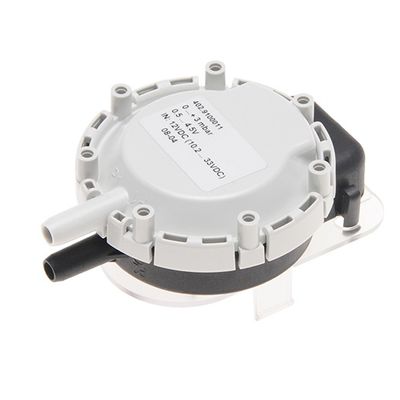

The differential pressure transmitter of type 402 with their proven ceramic fulcrum lever technology have adjusted, temperature-compensated sensor signals that are available with voltage outputs. They are ideally suited for registering fine air flow in air conditioning technology and for measuring fine pressures in the environmental / medical technology sectors. Differential pressure transmitter 402 0 ... 3 - 50 mbar.

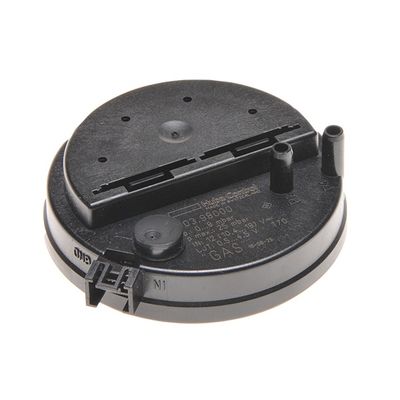

The differential pressure transmitter, with its unique proven ceramic lever technology, has adjusted, temperature-compensated sensor signals, available as a voltage output. The (VDC) voltage output is an amplified, linear signal suitable for direct processing in electronic control systems.  OEM Differential pressure transmitter 403 0 ... 3 – 8 mbar.

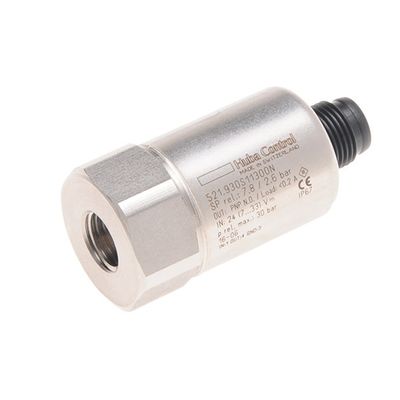

The compact type 521 pressure switch is based upon the Huba Control developed thick film technology where the pressure measuring cell is fully welded. Switching points set in factory are available both N/C and N/O function. Various electrical and pressure connections are available to suit given applications. Electronic Pressure Switch 521 0 ... 2.5 - 600 bar.

The compact type 529 pressure switch is based upon the Huba Control developed unique ceramic technology used for the last 20 years in millions of applications. Switching points set in factory are available both N/C and N/O function. Various electrical and pressure connections are available to suit given applications. Electronic Pressure Switch 529 -1 ... 0 - 60 bar.

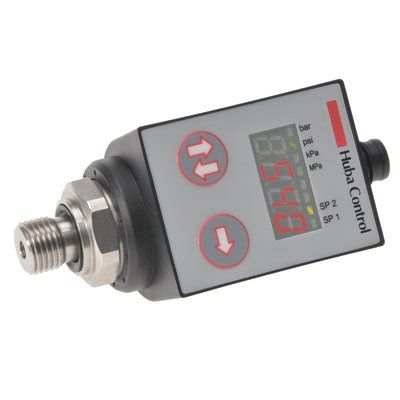

The µP-regulated, programmable electronic pressure switch type 540 has a robust industry design. The parameters are easily adjustable with two function keys in the configuration menue which disposes of up to two programmable switching points. All systems are equipped with a diag nostic function. The large 4 digit LED display assures a good accuracy of reading. The pressure transmitter type 540 is based upon the Huba Control developed thick film technology where the pressure measuring cell is fully welded. Electronic pressure switch 540 with display 0 ... 60 – 600 bar.

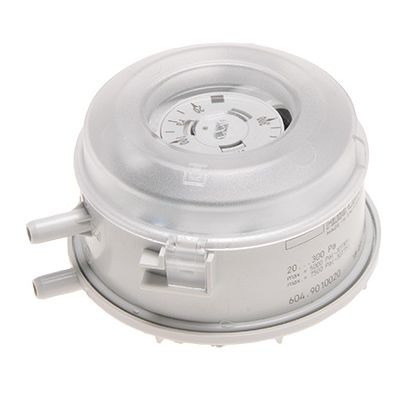

The ideal pressure switch to control air flows in air conditioning and ventilation systems, but equally effective in industrial air monitoring applications. This product range, which is classified in 5 pressure ranges, makes installation easy with features such as combibracket, screw terminals and snap-on cover. Of unique benefit is the high adjustment accuracy resulting from individual scale engraving. Mechanical Pressure Switch 604 0.2 ... 3 - 50 mbar.
