Huber+Suhner AG products

Key features: 4TX / 4RX channels covering the full automotive 77GHz radar band (76-81GHz). Compact port area of 125 mm2. Proprietary interface for direct RF coupling to the radar MMIC.

Key features: Directional low gain 3x3 MIMO antenna for Wi-Fi bands between 5150 and 5935 MHz. Vertical and +/-45° polarisation for MIMO performance. Narrow beam width and very low directional gain to prevent interference. Three connector ports directly on the rear, 3 x QMA jack (straight).

Key features: Omnidirectional antenna for Cellular bands from 1695 MHz till 6000 MHz. VSWR 1.5 in all bands with Vertical polarization. PIM better than -153 dBc at 2x43 dBm. Smart bracket system is included. Nex10 female connector.

Key features: Push-pull connector. Miniaturised space-saving design. Blind-mating and excellent usability in tight environments. Integrated Pulling-eye.

Product configuration - Interface type: SMP. Gender: plug. Standard: MIL-STD-348 SMP. Material data. Centre contact: Copper Beryllium Alloy / Gold Plating (Nickel underplated). Outer conductor: Stainless steel. Body: Stainless steel. Insulator: PTFE (Polytetrafluoroethylene). Electrical data. Impedance: 50 Ω. Interface frequency: 40 GHz. Mechanical data. Weight: 0.0007 kg. Mating cycles: 1000. Environmental data. Operation temperature: -55 °C ... 125 °C.

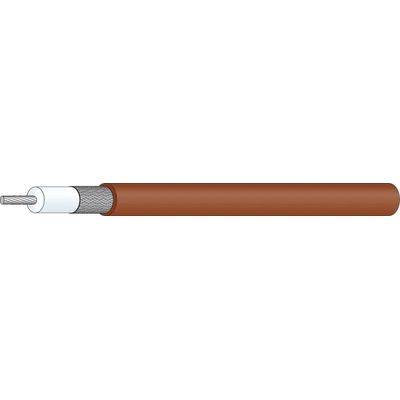

Key features: Flexible RF cable with PFA Dielectric. PFA jacket. Suitable for use in applications upt to 3 GHz. Extended temperature range.

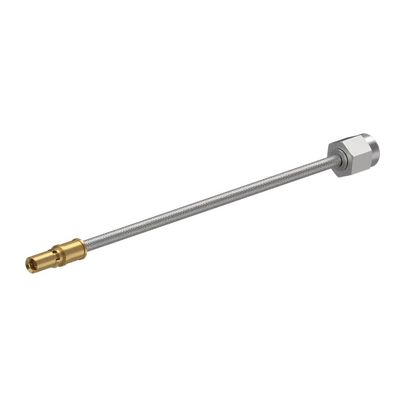

32024E-29972SVCR3-29094CR-12, VITA 67.3 SMPM (male), SMA (male), 50 Ohm, 26.5 GHz, 12 in, 304.8 mm. Key features: Assembly with VITA 67.3 compliant SMPM connector. Part of the "bend-to-the-end" MINIBEND product family. Direct replacement for 086 size Semi-Rigid cables. Compliant to MIL-DTL-17 (cable) and MIL-PRF-39012 (connectors). Applicable up to 26.5 GHz. Low loss PTFE dielectric.

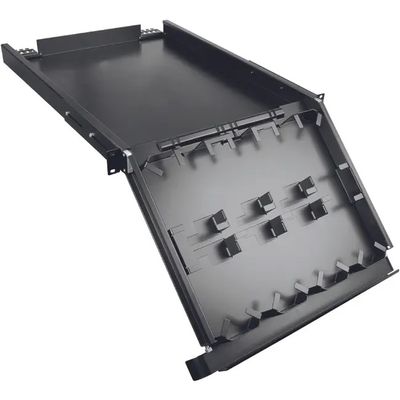

Key features: 19inches 1U size. Robust steel construction. Cable tie feature at rear. Telescopic drawer with tilt of 35°. Cable management bar at front. 4 individual sections. Storage function: 24 x 3 m cable with a diameter of 2.1 mm per section. Total storage capacity up to 96 x 3m cables. Adjustable lateral mounting brackets.

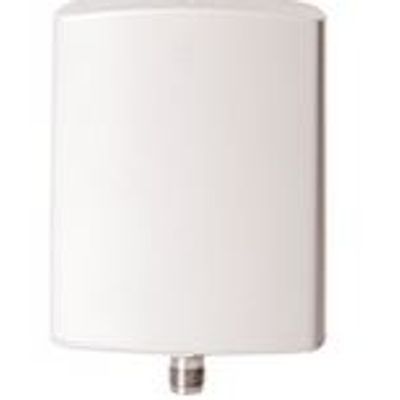

Small, directional medium gain WLAN / WiFi / ISM / DECT / cellular band antenna. Variants available optimised for harsh industrial, railway or indoor environment.

Our CAT5 and CAT6 (Gigabit) data line protectors are Power over Ethernet (PoE) compatible and available as IP68 rated robust components for outdoor applications (i.e. backhaul microwave links) or in IP20 specified housings for indoor installations (i.e. data processing centres).
