Humboldt Mfg. Co. products

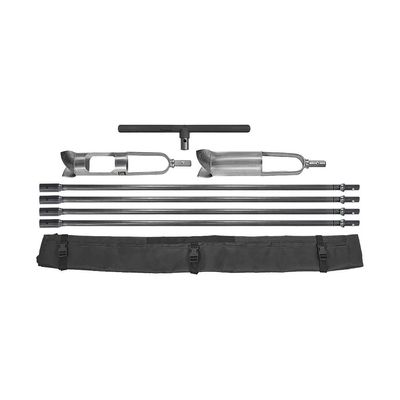

These soil auger kits are complete, compact setups for augering to depths of 12` or 16`. Soil auger kits include (1) regular and (1) mud auger, (4) extensions, an 18" rubber-coated cross handle, and a flexible, poly-canvas carrying case for easy transport and storage. These are supplied with quick-connect connections.

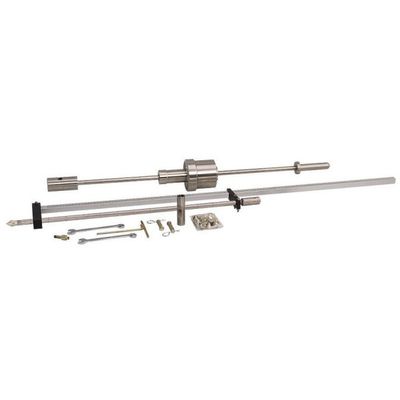

Developed by the Army Corps of Engineers, Dynamic Cone Penetrometers (DCPs) provide a low-cost, efficient test method for quickly determining in-situ CBR values of pavement base, sub base and sub grades. DCPs are primarily used to determine in-place soil shear strength in road construction with CBR values from less than 0.5 to 100% and bearing values ranging from 430 to 10,800 psf. They can readily be used for depths from 30 inches to 6 foot with optional drive rods and extensions. All Humboldt DCPs comply with ASTM D6951 specifications and come with a chart to compute CBR values, as well as an Excel spreadsheet template, which automatically charts the test results.

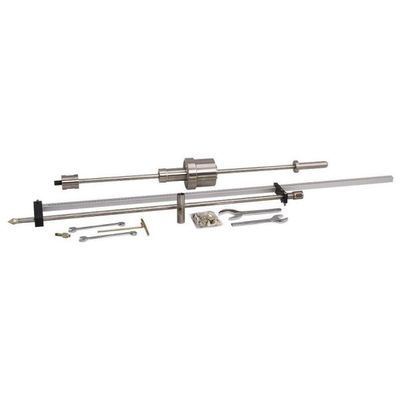

Developed by the Army Corps of Engineers, Dynamic Cone Penetrometers (DCPs) provide a low-cost, efficient test method for quickly determining in-situ CBR values of pavement base, sub base and sub grades. DCPs are primarily used to determine in-place soil shear strength in road construction with CBR values from less than 0.5 to 100% and bearing values ranging from 430 to 10,800 psf. They can readily be used for depths from 30 inches to 6 foot with optional drive rods and extensions. All Humboldt DCPs comply with ASTM D6951 specifications and come with a chart to compute CBR values, as well as an Excel spreadsheet template, which automatically charts the test results.

The Humboldt pocket penetrometer is a 8" penetrometer, which uses an enclosed, spring-operated mechanism for fast estimates of unconfined compressive strength of cohesive soils. While the pocket penetrometer is used widely for checking consistency and providing quick indications of compressive strengths in the field, it should not be used to replace laboratory testing or extensive field analysis, nor should it be used to product foundation design data. It can also be used to accurately indicate consistency and approximate unconfined compressive strength of undisturbed Shelby tube cohesive soil samples.

For use by field personnel to check visual classification of soils. Verifies whether excavation side walls require shoring, based on OSHA cohesive soils classifications. Indicates consistency, shear strength, and approximate unconfined shear strength. Direct-reading scale—in tons/sq ft, or kg/sq cm—corresponds to equivalent unconfined compressive strength. Indicator sleeve retains reading after piston is released.

Adapter foot is recommended when testing extremely low strength cohesive soils. 1" (25mm) dia. foot, compared to the 0.25" (6.35mm) penetrometer piston, increases the effective area measured by 16 times. Divide by 16 to obtain correct unconfined compressive strength when the reading in tons per square foot or kilograms per square centimeter is on the low-load side.

Establishes the moisture-penetration resistance relations of fine-grained soils. Includes these interchangeable needles (area in sq. in. or sq. cm): 1 (6.45), 3/4 (4.84), 1/2 (3.22), 1/3 (2.15), 1/5 (1.29), 1/10 (.65), 1/20 (0.32) 1/30 (0.22cm²) and 1/40 (0.16cm²). Replacement needles available.

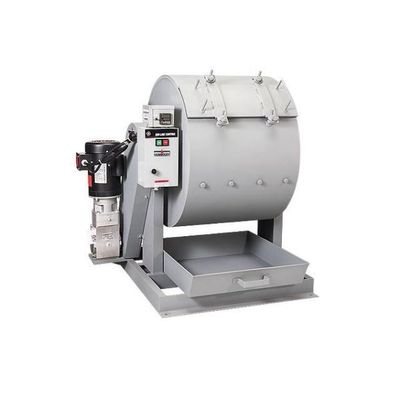

The Los Angeles abrasion machine is used to measure the degradation of mineral aggregate of standard gradings resulting from a combination of actions including abrasion or attrition, impact and grinding in a rotating steel drum containing a specified number of steel spheres. The test is widely used as an indicator of the relative quality of various sources of aggregate having similar mineral compositions.

The Slake durability apparatus is used to determine the durability of rocks and the probable amount of deterioration of weak rocks, over a period of time, after simulated exposure to nature`s continual wetting and drying cycles. The apparatus consists of a base-mounted, motor-drive unit with two mesh drums and two water tanks with quick-release drive assemblies. The drums rotate at a speed of 20 revolutions per minute. Options include two extra drums and tanks for running up to four tests simultaneously. To aid in sample preparation, additional mesh drums are recommended. Dimensions: 48" x 14" x 9.25" (1,219 x 355 x 235mm).

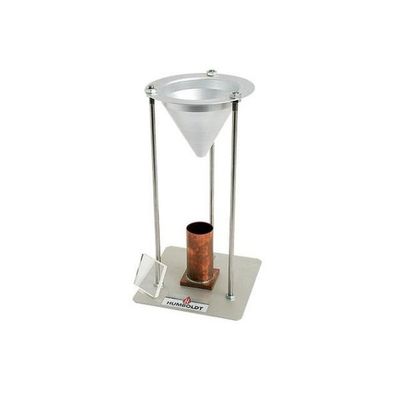

Used to determine the uncompacted void content of a fine aggregate sample. Indicates the angularity, sphericality, and workability of fine aggregate in a mixture. Includes 100 ml brass cylindrical measure, funnel assembly, funnel stand, and glass plate for calibration.
