Hy-Pro Filtration products
ICB Acid Scavenging Elements
ICB (Ion Charge Bonding) acid scavenging elements featuring EPT media technology are critical to maintaining low acid number, avoiding servo valve failure and years of trouble free operation for EHC and other systems utilizing phosphate ester (PE) and POE fluids. Traditional Clay and Alumina based acid remediating medias have low acid scavenging capacity and contribute dissolved metals and ultra-fine particles that lead to the formation of gels and deposits. The metals also cause poor air release properties which leads to thermal degradation from pressure induced dieseling. With over 30 million successful operating hours ICB is used to solve million dollar problems in some of the largest fossil fuel power plants in North America, Europe and Asia. Extend useful life and avoid premature fluid replacement and bleed & feed routines by properly maintaining PE fluids with our total solution including ICB, TMR, ECR, and NSD (non-spark filter element upgrades).PF2 In-Line or Manifold Pressure Filter
PF2 in-line or manifold mount pressure housing max recommended operating 4000 psi / 207 bar. Ideal for protecting servo valves and other low flow sensitive components. Available in bypass or non-bypass configuration.Filter Elements
Hy-Pro - Dynamic Filter Efficiency (DFE ) Element
All hydraulic and lube systems have a critical contamination tolerance level that is often defined by but not limited to, the most sensitive system component such as servo valves or high-speed journal bearings. Defining the ISO fluid cleanliness code upper limit is a function of component sensitivity, safety, system criticality and ultimately getting the most out of hydraulic and lube assets.

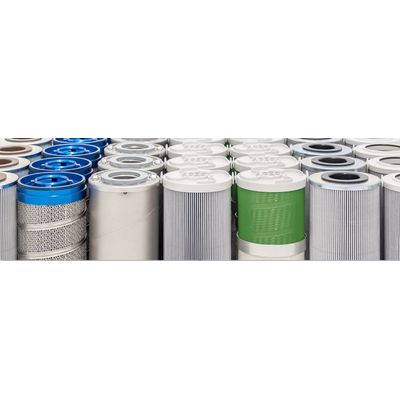

Hy-Pro - Filter Element
Hy-Pro filter element upgrades deliver the highest capture and retention efficiencies ((3X[C] ^ 4000) through advanced DFE rated element media and the removal of particles, water and oxidation byproducts, making Hy-Pro elements the one component in your critical systems that saves you money. Hy-Pro`s advanced media technology is at the heart of our performance. DFE filter element construction goes beyond the lab and is field tested and proven to deliver cleaner oil in industry`s toughest applications, all the time.

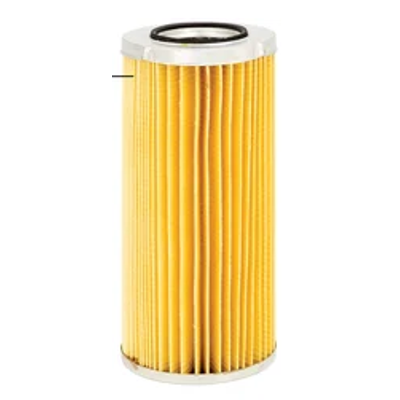

Hy-Pro - Cellulose Filter Media
Nominal ratings refer to a degree of filtration at a particular micron by weight of solid particles. Filters rated as nominal (we`re looking at you cellulose) have no maximum pore size, meaning while they may remove some 10 micron particles, they can still allow larger particles such as 200 micron to pass through and devastate components in the system.

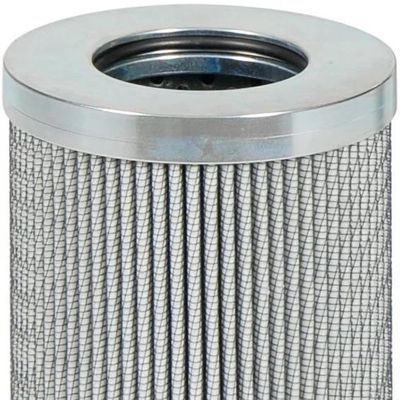

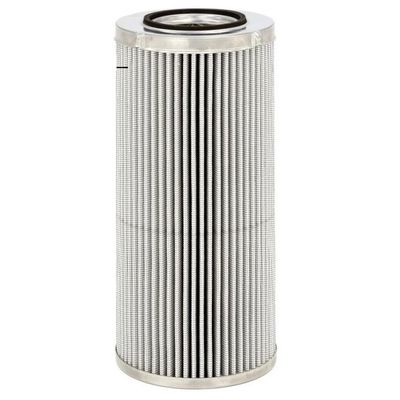

Hy-Pro - Glass Filter Media
Absolute ratings, such as most glass media filter elements are classified under, derive their value from the largest size particle which can pass through the pores of the media. Along with much greater efficiencies, glass elements have superior fluid compatibility versus cellulose with hydraulic fluids, synthetics, solvents, and high water based fluids.
Donaldson- Fluid Conditioning Equipment

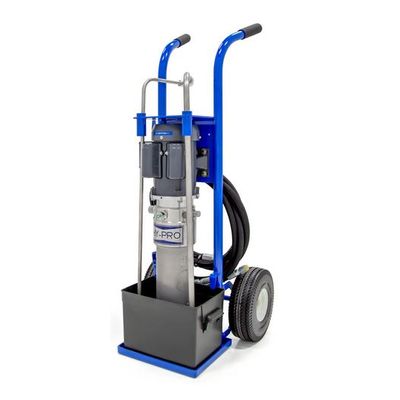

Hy-Pro Donaldson - Compact Offline Filter
Our smallest unit yet, the Compact Offline Filter is able to fit where no other filtration equipment can. Ideal for smaller systems, or where a larger offline system wouldn`t fit, can be permanently installed or portable. Typical applications include gear boxes, plastic injection molding machines, and vacuum pumps, to name a few. Choose between a variety of motors, wands, hoses, and portable cart options. Paired with our unique VTM elements, this unit can remove particulate, water, and varnish all with one filter.
Hy-Pro Donaldson - Compact Filter Unit
Bigger isn’t always better. The Compact Filter Unit provides you with the best filtration at a size you can take anywhere. Tried and true, the CFU is the ultimate filtration system in power and mobility. And with easy to change Spin-On elements or heavy duty MFs, you can rest easy knowing your filtration will always exceed your expectations.

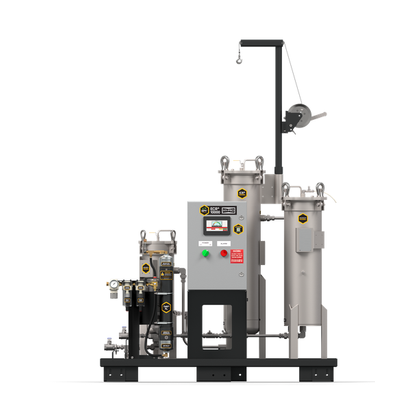

Hy-Pro Donaldson - Diesel Conditioning Systems
Remove water and particulate to extend fuel injector life and increase combustion engine fuel efficiency. Ideal for large mining and construction fueling depots, diesel fueled turbines, backup generators, and smaller day tank dispensing or on-board fueling truck applications. With options for adding non-powered units to existing fuel dispensing lines, there’s a perfect COD for all of your diesel applications.

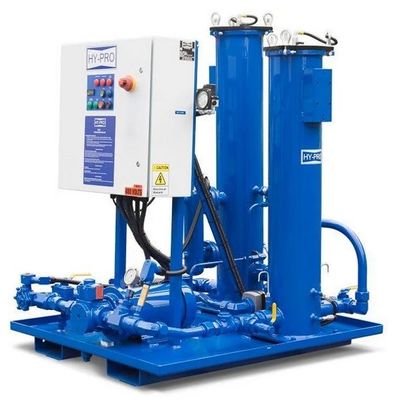

Hy-Pro Donaldson - Fluid Conditioning System
ECR is an integrated skid-mounted kidney loop filtration system designed for phosphate ester fluid, primarily electro-hydraulic control (EHC) turbine systems, equipped with four proprietary filtration technologies to achieve fluid standards as defined in ASTM D8323-21.
