Hydrex Asia Limited products

Hydrex Pressure Filters are custom designed in order to offer a most efficient and economical method of removing dirt, turbidity, iron, color and suspended impurities from water. Depending on the source of the water and the impurities to be removed, a Hydrex Pressure Filter can be installed to filter raw water, chemically treated water, or coagulated water after clarification. A complete range of sizes, types and optional items is available in vertical or horizontal design containing high quality granular media to meet your most stringent water quality requirements.

The Hydrocone Clarifier is a hydraulically operated, conical shaped, upflow, solids contact, sludge blanket type reactorclarifier. It produces high quality treated water and is particularly suited to applications that require clear and clean water for industrial or potable use. The Hydrocone Clarifier combines mixing, coagulation, flocculation, settling and clarification within a single treatment unit. Its cost efficient design results in reduced capital outlay as well as minimal energy and operating expenditure. Furthermore, it eliminates the maintenance problems normally associated with conventional mechanical clarifiers and can be easily operated and maintained by semi-skilled labor.

There are no ready made solutions as each water source presents its own individual characteristics and problems. The highly qualified and experienced process design engineers at Hydrex exhaustively evaluate process alternative with a view of providing the most dependable, efficient and cost effective type of treatment system for a particular project. The Choice of demineralization method and resins depends on many factors including the composition of the water to be treated, flow rate, degree of purification required, chemical efficiency, equipment cost, simplicity of operation, degree of automation desired and available space. Sometimes, Reverse Osmosis system may be recommended ahead of an ion-exchange system when Total dissolved Solids (TDS) is higher than 400~500 mg/l in order to reduce chemical consumption.

A wide range of sewage treatment plants for residential communities, hotels and industries are available from Hydrex. Hydrex plants are compact, low cost, odor free, noise free, efficient, easy to construct and simple to operate and maintain. There is a Hydrex package plant to suit the needs of as few as 100 people to as many as 10,000.

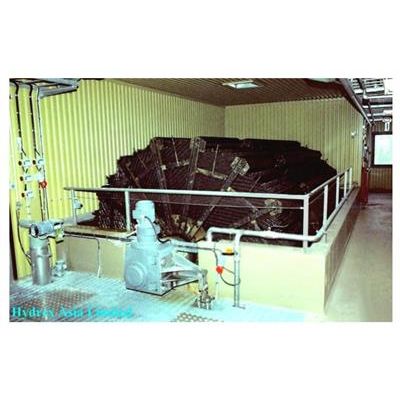

The BIOROTOR is a biological treatment process for oxidizing organics pollutants in wastewater. It consists of a large diameter contact media attached to a central shaft rotating slowly in a wastewater basin. The media is only partially submerged. As the contactor rotate, the media is alternately submerged in the wastewater then exposed to air. This rotating action provides for the aeration of the wastewater while creating the necessary turbulence to mix the basin content to prevent the solids from settling out. The bacteria naturally present in the wastewater grow quickly as they adhere to the media surface. Within 2-3 weeks after initial start-up the entire surface will be covered with 2-4mm of active bacteria growth called biomass. The high concentration of bacteria in the biomass provides for a high degree of purification at a relatively short retention time.

A wide range of sewage treatment plants for villages, towns, residential communities, hotels and industries are available from Hydrex to meet the requirements of as few as 1000 people to as many as 100,000 Hydrex systems are compact, economical, odor free, noise free, efficiency, easy to construct and simple to operate.

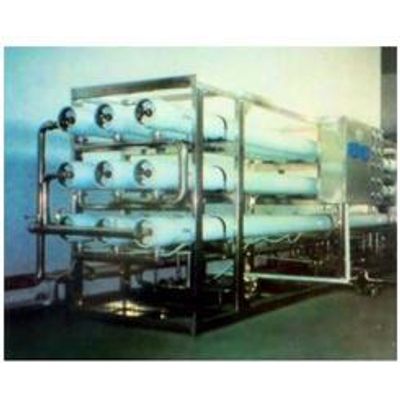

The principle of Reverse osmosis is using high pressure differential across a permeable substance. The purification works by high pressure forcing a pre-treated solution through a permeable membrane in order to separate inorganic salt, organic and bacteria from water. RO frequently works together with ion exchanger to obtain ultra pure water.

CEDI system use ion exchange membranes, ion exchange resins and automation to produce high-purity water continuously. It uses electrostatic and ion exchange principle to obtain ultra pure water in a stable manner. When combine with Reverse Osmosis (RO) pre-treatment, it produces 18 megohm-cm (25 deg C) quality water.

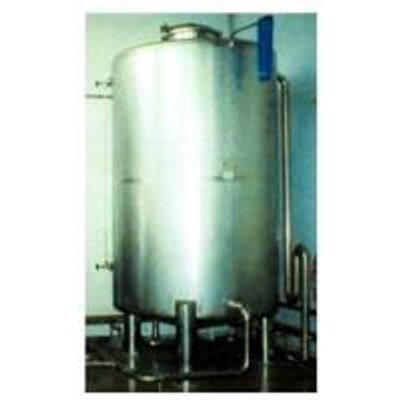

All stainless steel construction; Sanitary Grade design; Polished internal surfaces without dead corner; Storage tank shall complete with cleaning and drain connections, breathing air filter, manhole and mixing device.
