The FC-SERIES™ High-Pressure Liquid Pumps were developed by Hydro-Pac early on for applications requiring constant flow at high pressures. These pumps have proven to be exceptionally reliable and many of the original units are still in operation. Standard units are available for discharge pressures of 10,000 to 200,000 psig (70 to 1380 MPa) in frame sizes of 10 and 200 hp (7.5 and 150). Inlet pressure for these units is flooded suction for pressures up to 100,000 psig (700 MPa). Standard process fluids are lightweight oil, water emulsion and other noncorrosive fluids. Stainless steel units are available for operation with water. These pumps can be customized for operation with other fluids upon request. Single shot versions and pump test systems are also available.

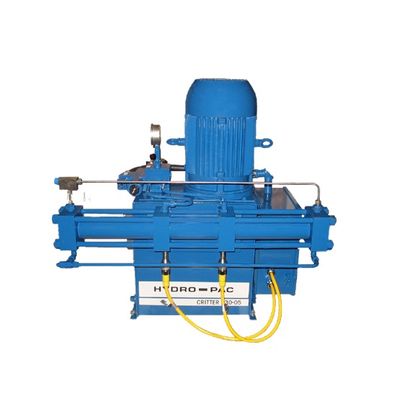

The Li’l CRITTER™ High-Pressure Liquid Pump is used for light production and research applications that require a small flowrate at high-pressure. Standard units are available for discharge pressures of 10,000 to 100,000 psig (70 to 690 MPa) in frame sizes of 3 and 5 hp (2.3 and 3.8). Inlet pressure for these units is flooded suction. Standard process fluids are lightweight oil, water emulsion and other noncorrosive fluids. Stainless steel units are available for operation with water. These pumps can be customized for operation with other fluids upon request.
