Hydro Press Industries products

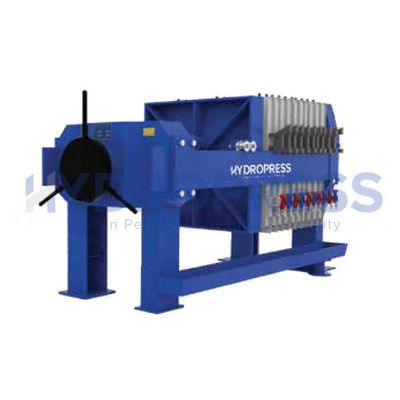

This type of closing mechanism is recommended up to 470 mm X 470 mm, 610 mm X 610 mm, 800 mm X 800 mm, 1000 mm X 1000 mm size filter press. A screw with hand-wheel is used for closing the pack of filter plates and for final tightening. It is ideal for dewatering applications. This type of closing mechanism is recommended up to 355 mm X 355 mm, 470mm X 470mm size filter press. A screw with hand-wheel is used for closing the pack of filter plates and for final tightening. It is ideal for dewatering applications.

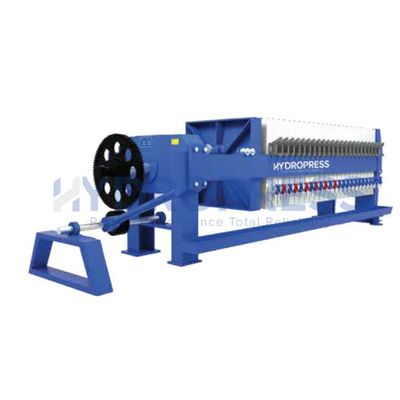

Ratchet is a type of closing mechanism used in a manual filter press. We at Hydro Press Industries offer filter press with ratchet closing device. The system consists of a pressure compensated motorized power pack with a triplex plunger pump, solenoid operated direction control valve, pilot operated non-return valve, differential pressure switch, relief valve, pressure gauge and double acting hydraulic cylinder 800 mm stroke which closes and seals the filter plates pack automatically. By applying a ratchet lever to the pinion shaft, the force is transmitted by a small pinion to a larger gear-wheel which provides the final lighting on the plate pack.

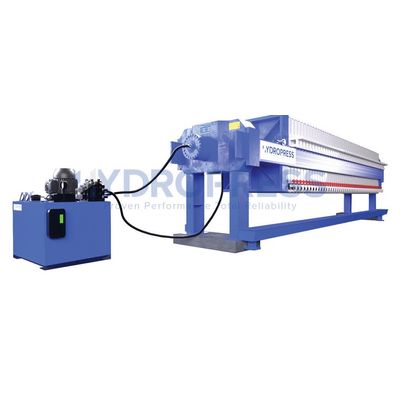

Commonly used filter presses are of Electro Hydraulic type, which comes with a Hydraulic system for closing mechanism.

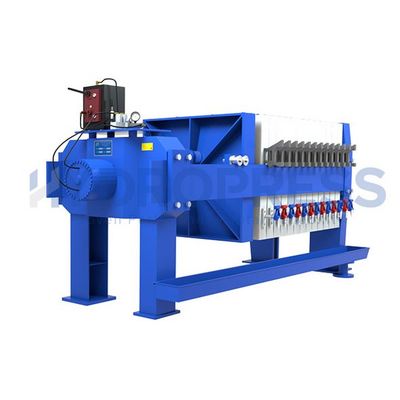

The hand hydraulic closing mechanism shall consist of a hydraulic cylinder and hand operated hydraulic power pack.

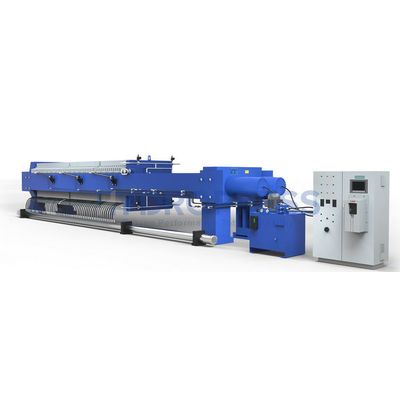

The semi-automatic system has a central control panel where each sequence steps are activated by the operator.

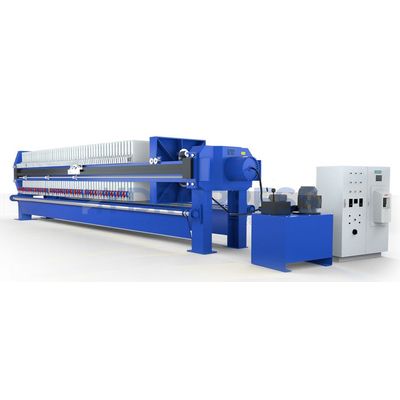

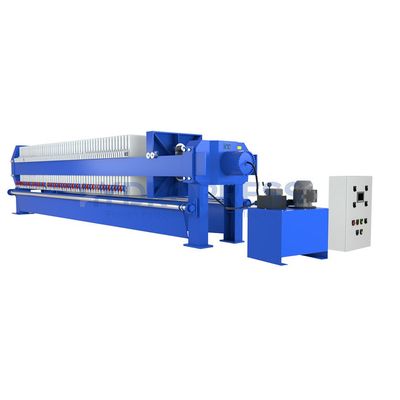

Membrane Filter Presses are used for extra moisture reduction in the cake. Our company is a celebrated name offering excellent industrial membrane filter press to many established industries across India.

At Hydro Press, we take pride in offering cutting-edge solutions for the filtration needs of the Palm oil, Palm Mid Fractionations, Rice bran oil, Edible oil industries, and other applications. We offer a reliable and durable filter press solution featuring 30 Bar Pressure to meet the customer’s requirements of discharging the cake in a short time, improving operational efficiency, and production rate, which in turn maximizes the ROI. Our ultra-high-pressure 30 Bar Membrane Filter Press is specifically designed to meet the rigorous demands of these applications, ensuring optimal filtration efficiency and superior end product quality. With a working pressure of 30 bar, our Filter Press delivers exceptional performance, effectively separating impurities and achieving high-quality oil extraction. Hydropress’ Membrane Filter Press is engineered to function seamlessly, adapting to working conditions, and retaining the desired throughput capacity of edible palm oil extraction.
