Hydromat Ltd products

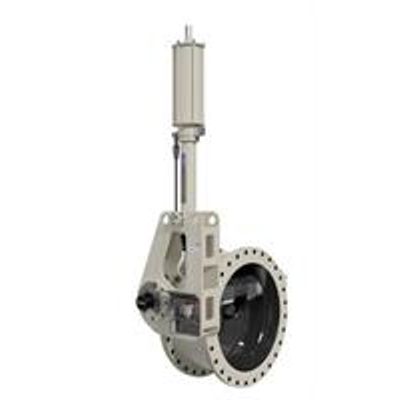

Flow control, On/Off. Emergency shut-down and different safety operations in the most difficult working conditions in different areas of application. Extremely reliable emergency hydraulic functions. A source of hydraulic oil pressure used different types of electro-hydraulic or air-hydraulic power unit. For drive used hydraulic pressure oil, water or water emulsions up to 250 bar. Feedback system to valve openness control as a internal and external type (INCP or EXCP). Drive Combinations: Single acting with options fail to close or fail to open and double acting.

Pneumatic main drive and hydraulic as a emergency drive.

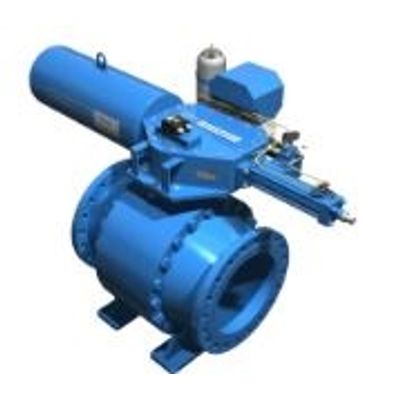

Flow Control, On/Off, Emergency shut-down and different safety operations. Design without hydraulic emergency function. Drive directly with compressed air up to 10 bar . On request possible direct drive with natural gas, carbon dioxide, nitrogen or noble gases or directly with flow medium. Direct drive with flow medium is excellent solution to getting of different automatic valve functions. Very reliable operating in the most difficult working conditions. Simple drive mode and valve design provides a very wide area of application from cryogenic areas to hot steam. Feedback system to valve openness control as a internal and external type ( INCP , EXCP ) . Drive combinations: Single acting with options fail to close or fail to open and double acting.

The most Reliable Valve Concept for flow control and different safety operation.

On customer request HYDROMAT with its electro-hydraulic actuators and control electronics equipping control valves with design based on crank mechanism from other manufacturers.

In this terms HYDROMAT offer different combinations of reliable Emergency Shut-Down ESD actuators based on principle of closing energy:

8 Sizes of actuator body with output torque up to 600.000 Nm.

8 sizes, range of max damping torque is between 1.500 and 195.000 NM per unit. Important! The selection of the HSAU is based on the value of damping torque, i.e. on the value of the back-flow pressure, and not on the nominal diameter DN. This implies that more sizes of HSAU can be applied to the same nominal diameter of the check valve.

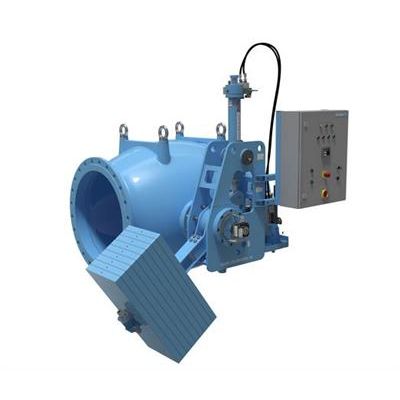

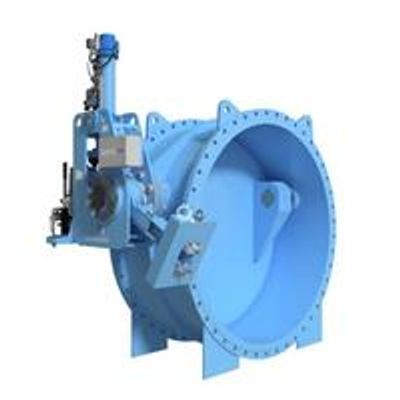

Check valves and automatized damping unit type AHSAU providing combined functions of check valves with flaps or discs.
Provides great functioning and contributions of enormous saving of energy and money.

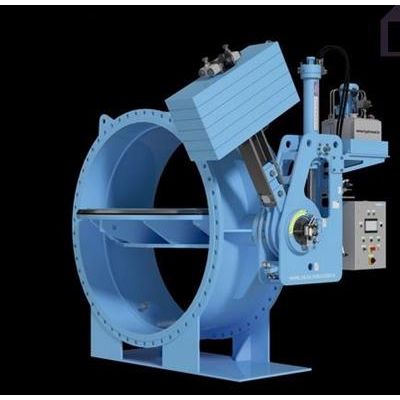

Check valves and automatized damping unit type AHSAU providing combined functions of check valves with flaps or discs.
Provides great functioning and contributions of enormous saving of energy and money.
