Hydromatic Pump products

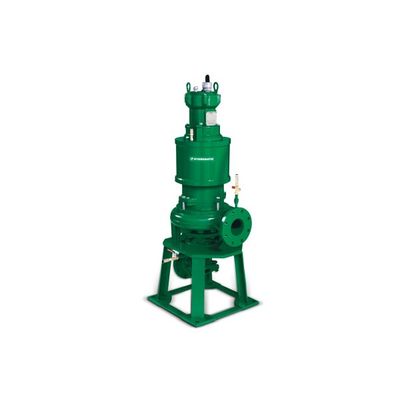

Rugged, submersible, explosion-proof sump pumps for municipal, commercial and industrial use.

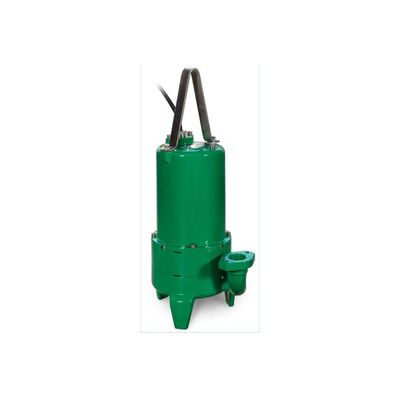

Specifically designed to meet the demands of septic tank effluent applications that require a "high-head" dual seal pump.

Two (2) Carbon/Ceramic Type 21 Mechanical Seals Mounted in Tandem. Oil-Filled Motor with Automatic Reset Thermal Overload for Maximum Protection (single-phase models). Upper & Lower Ball Bearing Construction. Piggyback Plug Available for Easy Maintenance and Switch Replacement. Optional Seal Failure Probe Warns of Seal Leak. Capacitor Start for Increased Starting Torque (single-phase models).

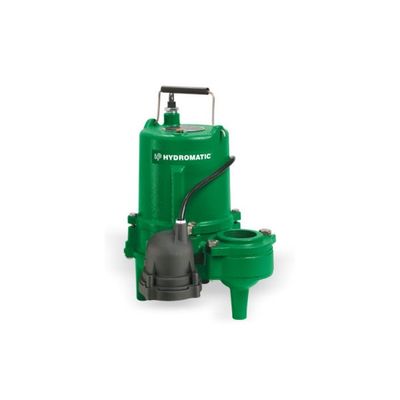

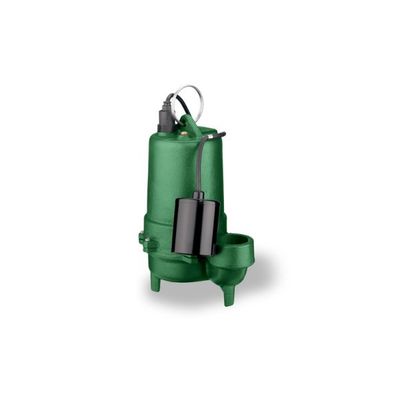

The SHEF42 Series Pump is a rugged, submersible cast iron pump with a clog resistant, semi-open impeller and solids handling capability to 3⁄4”. Unit has a 4⁄10 HP single phase motor complete with power cord.  2” NPT vertical discharge is standard. A full selection of accessories for automatic operation is available, and includes float switches, duplex controllers, simplex controllers, alarms, basins and check valves.

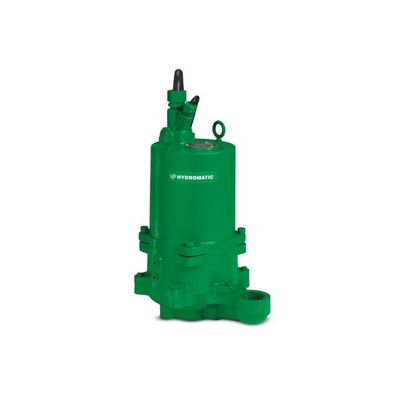

The Hydromatic HVR200 series grinders feature a patented axial cutter technology that easily slices through solids and trash found in domestic wastewater without roping or clogging. They come with plenty of standard features to make installation a breeze. The HVR200 is a rugged and economical solution for residential and pressure sewage systems.

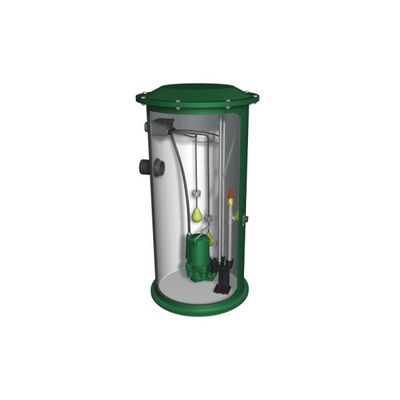

A complete turn key package lift out rail system for centrifugal grinders provides ease of installation and removal for the pump. The TL-Pro System uses a cast iron discharge elbow with integrated ball check valve and is available with spark-proof rails for hazardous locations. Available with HPGR200, HPGX200 or HPG200. Lift out valve features integral ball check valve. Fiberglass basins are optional. Available configurations, rails and accessories:Rail Systems Available. Controls and Accessories Available.

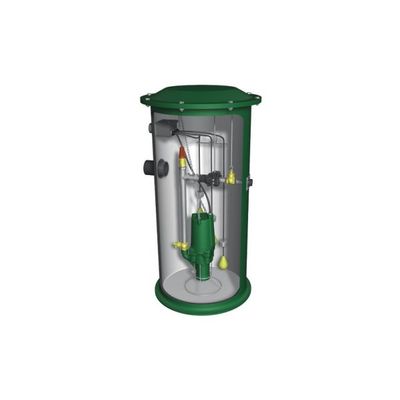

Flexible piping system with slip-fit discharge connection provides ease of installation and removal for all 2 HP grinders. Pumps include a stainless steel stand. Available with HPD200, HPG200 or HPGR200. Heavy-duty 1¼" flexible pipe and easy slip-fit connection allows for quick installations and servicing. Fiberglass basins are optionalAvailable configurations, rails and accessories: Rail Systems Available. Controls and Accessories Available.

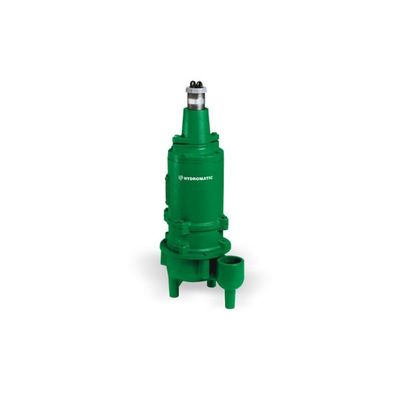

The Hydromatic HV200 Series grinder is engineered from the ground up in order to overcome the increased debris and higher pressure required in today`s wastewater environment. It features a patented axial cutter design and semi-open impeller to effectively macerate challenging sewage solids into a fine slurry.

Explosion-proof; Class 1, Division 1, Groups C&D; Dual seals for maximum moisture protection; Oil-filled motor for maximum heat dissipation and constant bearing lubrication; Exclusive dual cutter design cuts solids to the smallest particle size; Semi-open impeller provides steep non-overloading operating curve; Available configurations, rails and accessories: Rail Systems Available; Controls and Accessories Available.

Available configurations, rails and accessories. Rail Systems Available. Controls and Accessories Available.
