Hydrotec Technologies AG products

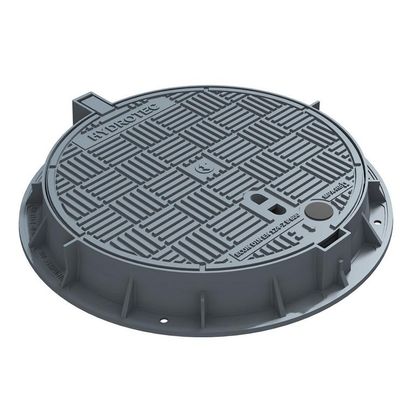

Innovative automatic 3 point locking system. Hinders unauthorised opening = anti-theft. Through the positioning of the locking points the cover is centred in the frame and frictionally locked.

Innovative automatic 3 point locking system. Hinders unauthorised opening = anti-theft. Through the positioning of the locking points the cover is centred in the frame and frictionally locked.

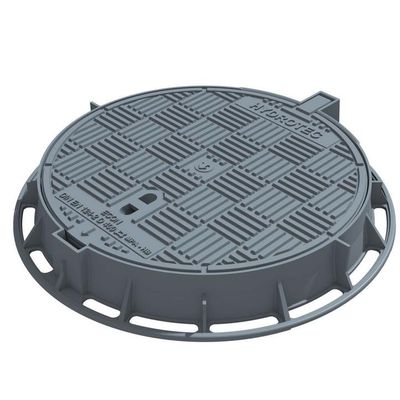

Innovative automatic closing system with 3 flexible bars. Hinders unauthorised opening = anti-theft. Through the positioning of the locking points the cover is centred in the frame and is frictionally locked.

Locking: Hinders unauthorized opening = protection against theft and vandalism. Locking by means of 2 turn-buckle.

Locking: Innovative self-locking 2 spring locking system. Hinders unauthorised opening. Relief from traffic due to location under the gratin.

Loading class F 900. Nominal width 100mm. Construction depth 180mm. Construction length 1000mm. Material ductile cast iron. Type of product type I. Type of element basic element. Inlet cross-section 325cm²/m. Weight 30,50 kg. Pieces per pallet 45pcs. DIN designation DIN EN 1433.

Loading class F 900. Nominal width 150mm. Construction depth 225mm. Construction length 1000mm. Material ductile cast iron. Type of product type I. Type of element basic element. Inlet cross-section 513cm²/m. Weight 53,20 kg. Pieces per pallet 20pcs.. DIN designation DIN EN 1433.

Material cast iron. Outer dimensions 1500x1500 mm. Weight 168,00 kg. Height 41 mm. Geometry square. Internal dimension 700x700mm. Coating textured anti-slip powder-coating RAL 9005. Max. load 50kN. Slot width 16 mm. Design linear design. Segments 4 pcs.
