HYDROTIME products

Pneumatic Valves

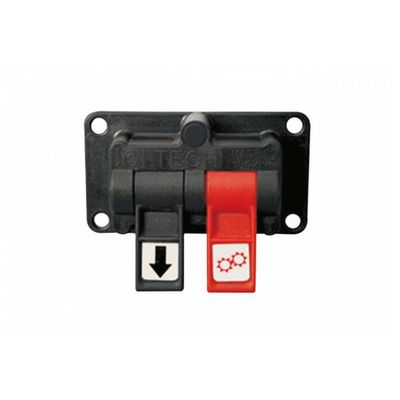

Hydrotime - Model 63022000100 - Pneumatic Valves - 2 WAY SWITCH

Air Inlet : G 1/8". Air Outlet : G 1/8". Max. Pressure : 10 Bar. Permissible Temperature : -40, +80 °C. Permissible Medium : Air. Connection Type : Optinal. Weight : 0.178 kg.

Hydrotime - Model 63021000100 - Pneumatic Valve

Air Inlet : G 1/8". Air Outlet : G 1/8". Max. Pressure : 10 Bar. Permissible Temperature : -40, +80 °C. Permissible Medium : Hava. Connection Type : Opsiyonel. Weight : 0.100 kg.

PTO Pumps

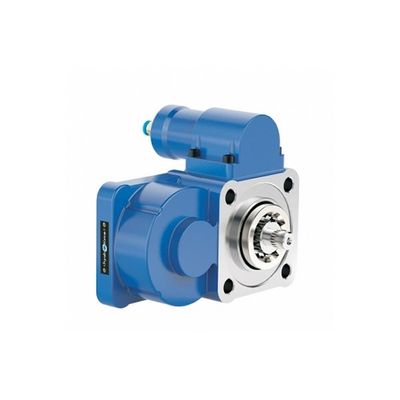

Hydrotime - ZF 2 Casting

Torque : 26,5 Kgm. Power (100 rpm) : 24,5 Hp. Speed : 675 rpm. Ratio : 5/6. Weight : 7,5 kg. Mounting : Rear. Control : Pneumatic. Rotation : Left - ISO.

Hydrotime - Eaton - Hema 475 L-R (Right-Left-Side)

Torque : 23 Kgm. Power (100 rpm) : 15,8 Hp. Speed : 500 rpm. Ratio : 1/1,5. Weight : 11 kg. Mounting : Rear. Control : Pneumatic. Rotation : Left - UNI.

Gear Pumps

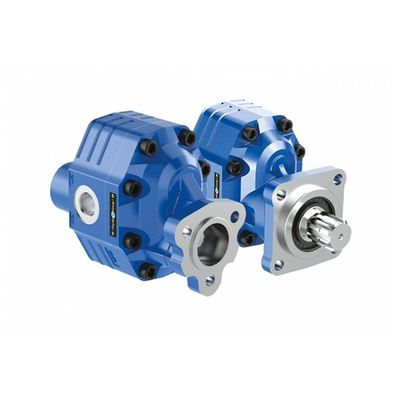

Hydrotime - 17 Lt Gear Pump

UNI T1 CODE 16300170166 CW - 16300170199 CCW 16300170169 CW CCW. ISO CODE 16300170366 CW - 16300170399 CCW 16300170369 CW CCW.

Hydrotime - 27 Lt Gear Pump

UNI T1 CODE 16300270166 CW - 16300270199 CCW 16300270169 CW CCW. ISO CODE 16300270366 CW - 16300270399 CCW 16300270369 CW CCW.

Piston Pumps

Pump Code : Clockwise CW 16220350366. Pump Type : 35 Lt. A (mm) : 114. B(mm) : 139. C(mm) : 237. D(mm) : 107. E (mm) : 164. F (mm) : 102. G(mm) : 99. K (Oil Inlet) : R 11/4". L (Oil Inlet) : R 3/4". Fluid : Mineral Based Hydraulic Oil.

Hydrotime - 65 CC Bent Axis Piston Pump

Pump Code : 16220350366. Pump Type : 65 Lt. A (mm) : 115. B(mm) : 152. C(mm) : 253. D(mm) : 118. E(mm) : 164. F (mm) : 108. G(mm) : 100. K (Oil Inlet) : R 11/4". L (Oil Inlet) : R 3/4".
