HYKO Technologies products

HYKO110 is a Smart Wall mount Clamp on ultrasonic flow meter is designed to measure the fluid velocity of liquid within a closed conduit. This product comes inbuilt feature of SD card for massive flow data storage.

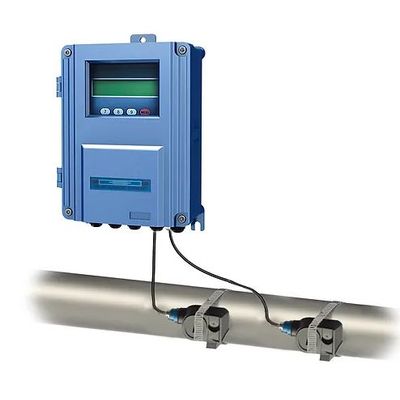

HYKO100 Wall mount Clamp on ultrasonic flow meter is designed to measure the fluid velocity of liquid within a closed conduit. The transducers are a non-contacting, clamp-on type, which will provide benefits of non-fouling operation and easy installation.

HYKO175 is Modular type clamp on Ultrasonic flow meter designed for easy mounting on the electrical panels and fully compatible with digital and analog communcation. Its working principale is based on transit time. When the ultrasonic beam propagates through the liquid, the flow of the liquid will cause a small change in the propagation time, and the change in propagation time is proportional to the flow rate of the liquid. At zero flow, the time required for the two sensors to transmit and receive sound waves is exactly the same (the only technique that can actually measure zero flow). When the liquid flows, the sound wave transmission time in the countercurrent direction is greater than the sound wave transmission time in the downstream direction.

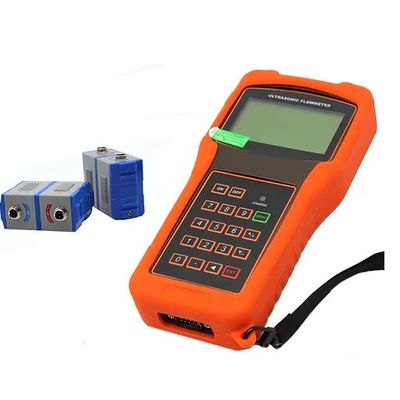

Portable Handheld Clamp on ultrasonic flow meter is designed to measure the fluid velocity of liquid within a closed conduit. The transducers are a non-contacting, clamp-on type, which will provide benefits of non-fouling operation and easy installation.

Radar level transmitters, also known as radar level sensors, use radio waves to measure the level of liquids and solids. They consist of a radar antenna, a transmitter, and a receiver.

Guided Wave Radar Level meter works on principle of time to travel distance. Radar run at the speed of light, the running time can be converted into a level signal by electronic components. When the pulse reaches the surface of the material, the pulse is reflected back and is received by the receiving container inside the instrument, the distance the signal is converted to level signals.

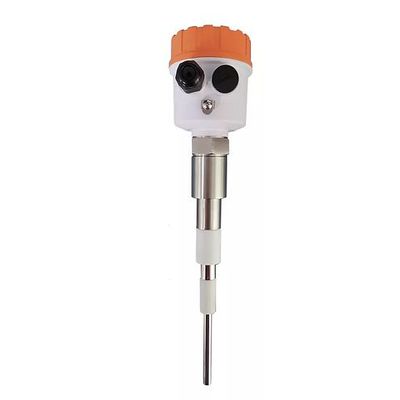

HYKO RF admittance level measurement is a method of measuring the level of liquids and solids using radio frequency (RF) technology. It is a non-contact method of measurement, which means that the sensor does not come into contact with the material being measured.

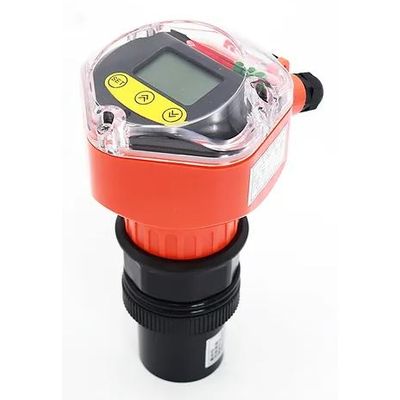

Non Contact type Ultrasonic Liquid Level Transmitter is a kind of no-contact with medium, high reliability, high cost performance, easy installation and maintenance of material level measuring instrument. It doesn`t have to contact medium to meet the requirements of most of the material level measurement. Our product range offer with display type and without display type non contact ultrasonic level meters. Generally Firing pulse and receiving the pulse interval is transalted into measured distance of surface from the sensor face.

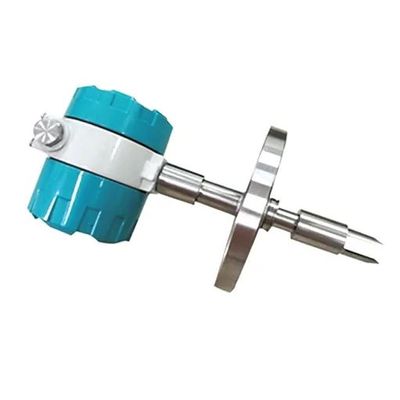

Tuning fork vibration density measurement is a method of measuring the density of liquids and gases using a vibrating tuning fork. It works on the principle that the resonant frequency of a tuning fork is affected by the density of the surrounding medium. The design and working principle of a tuning fork vibration density sensor typically consists of the following components:

Coriolis mass flow meter is a direct and precise measurement of fluid mass flow meter to the main structure of the novel, U shaped two side by side tube, make two tube bent parts to vibrate slightly, then straight on both sides of the vibration will follow, that they will also close or open at the same time, the two vibration tube is synchronous, symmetrical. If the pipe is synchronized with the vibration, the fluid is introduced into the tube to move forward along the pipe, and the pipe will force the fluid to vibrate up and down.
