With the new procedure for the early recognition of building damage in the high and foundation engineering, announced by IBJ Technology to the patent, show themselves damage in the solidium substantially in former times as so far usually.

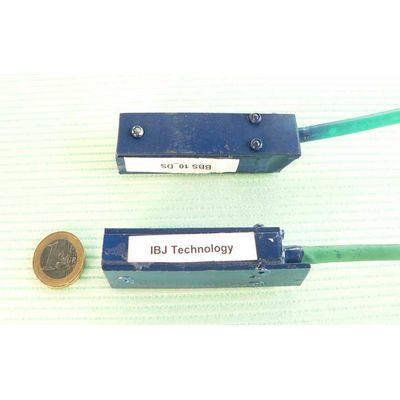

With the sensor BBS 10_DS from IBJ Technology, surface pressure in concrete components can be determined also afterwards. The applications range from the direct stress measurement in the component to the measurement and monitoring of dynamic loads in real time.

Sensor for tensile and compressive stresses in the concrete to measure.  After the patent-pending process of IBJ Technology sensors for strain and compressive stresses can be manufactured in almost all imaginable sizes. The area includes a 1 inches to several 10 foot length. The diameter of the measuring element can be adjusted to the diameter of the reinforcement in the concrete.

The sludge density measurement works according to the principle of the absorption measurement of ultrasonic waves with reflection on the tubing or container wall. According to standard with a sensor with a frequency between approximately 1 MHz… 2 MHz and a transducer one works. Only in cases of extremely large absorption of the ultrasonic waves by very high solid content or when measurements in very large containers, a sensor with low resonant frequency can be necessary.

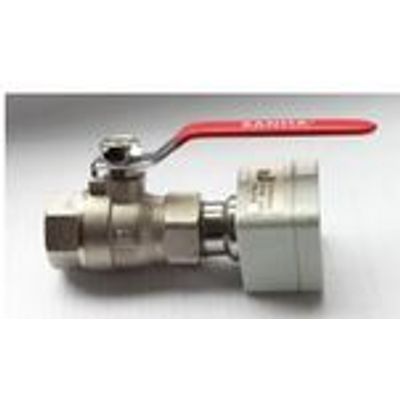

Potential application is the monitoring of the water pipelines from the heat exchanger to the fuel oil heating up.

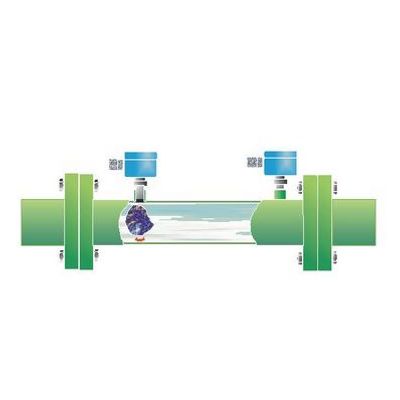

Control of bilge-water pipes. Detection of sand and rubble in feeders for drinking water processing.

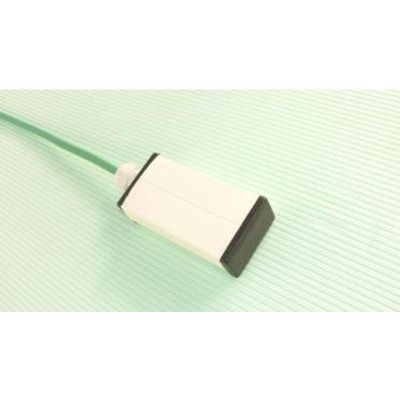

PVDF sensors can measure piston positions sturdily and inexpensive. By several one behind the other angereihte sensors piston positions can be seized quasi-similarly. (digitally from sensor surface similarly to sensor surface, within the sensor surface).

The sensor detects the compression of a metal body. This metal body is 2 components resin and protected housing. The housing is arranged in concrete or in the iron braid of reinforcement. The compression are measured with ultrasonic pulseecho method. In the case of concrete tension sensor, an ultrasonic sensor is included. The RSS-X is offered in two models, RSS-X and RSS2X, that differ in their measured axis. RSS-2 X two systems owned by 90 ° turned. The horizontal and vertical stress is measured. The sensors with Triaxial accelerometer with magnetometer (compass) or without can be equipped. Therefore, the alignment of the bore hole and the position of the sensor for crimping the expansion of cement can be determined.

The sensor detects the compression of a metal body. This metal body is 2 components resin and protected housing. The housing is arranged in concrete or in the iron braid of reinforcement. The compression are measured with ultrasonic pulseecho method. In the case of concrete tension sensor, an ultrasonic sensor is included. The runtime in the measuring element is measured in high resolution with a separate stress meter. All ultrasound devices to the bolt measurement with a maximum frequency of 10 MHz is suitable for the measurement.

The sensor detects the compression of a metal body. This metal body is 2 components resin and protected housing. The housing is arranged in concrete or in the iron braid of reinforcement. The compression are measured with ultrasonic pulseecho method. In the case of concrete tension sensor, an ultrasonic sensor is included. The runtime in the measuring element is measured in high resolution with a separate stress meter. All ultrasound devices to the bolt measurement with a maximum frequency of 10 MHz is suitable for the measurement.
