iCenta Controls Ltd. products

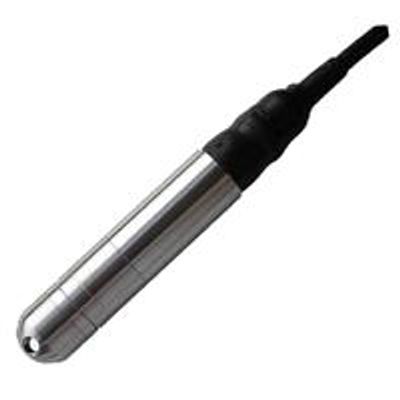

IC-IMCL submersible level transmitters are designed for continuous level measurement of rivers or reservoirs or tank level measurement of water, fuels or oils. The IC-IMCL level transmitter uses a ceramic, piezo-resistive sensor with excellent corrosion resistance and a conventional thin stainless steel diaphragm, which is ideal for applications where the media may be aggressive. Housed within a 316L stainless, steel, high grade Duplex stainless steel or PVC housing, this submersible level transmitter is the ideal product for stable, reliable level measurement in harsh environments.

The IMSL Submersible Level Transmitter is ideal for submersion in liquids such as water, oil and other non aggressive chemicals for extended periods of time.

The IMTG has been designed for use in continuous submersion in liquids such as water, oils and fuels in small tanks and containers where conventional mechanical level switches and sensors are not ideal and more level ‘control’ and measurement is required. The IMTG submersible device uses a silicon pressure sensor which has excellent performance and stability. It is ideal for applications where a small tank level is required from as low as 1m through to 10m high tanks. The housing is stainless steel and with a choice of PVC, PUR, FEP or TPE cable material enables compatibility to water, oils and fuels. Every device is temperature compensated and calibrated, supplied with a traceable serial number and calibration certificate. Submersible Tank Gauging Level Transmitter with Pressure Range from 1 to 10mWG. Hydrostatic level transmitter for continuous submersion in liquids such as fuels, oils and water in tanks and containers.

The Hydrostatic Level Sensor | Transmitter LMK 858 has been developed for continuous level measurement in aggressive media. Usage in more viscous media, for example sludge, is possible because of the semi-flush diaphragm. The basic element is a mechanically robust and highly overloaded capacitive ceramic sensor; the transmitters are among others suited for the measurement of low filling heights with good long term stability. In order to facilitate stock-keeping and maintenance the transmitter head is plugged to the cable assembly with a connector and can be changed easily.

A hydrostatic level transmitter with SDI-12 protocol output via the SDI-12 RS232 interface, fully submersible with measurement ranges from 0.5mWG up to 200mWG. Temperature measurement is made in addition to the level measurement via the SDI-12 interface using standard SDI-12 commands, less than ±0.1% FS accuracy. Options on the IC-S12S level transmitter include the following pressure range and engineering units, pressure reference (G, SG or Abs), cable material, O ring seal material.
