Idro Gas Engineering s.a.s products

Repair joint made with stainless steel band connected to ductile iron jaws, for quick repair of pipes conveying water and gas.

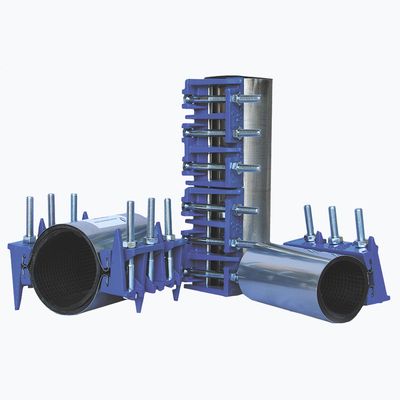

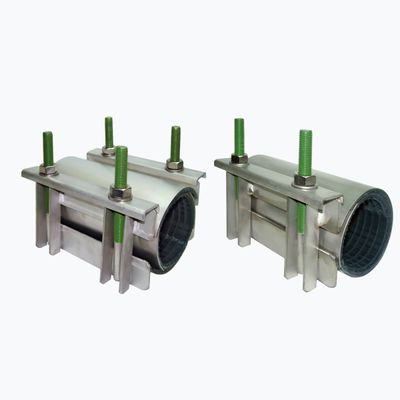

Repair joint completely made of stainless steel, suitable for quick and long-lasting repair of any underground and overhead water piping. Due to its construction characteristics, it is extremely resistant to corrosion and at the same time light and easy to install. In its three versions can be supplied with a threaded or flanged connection.

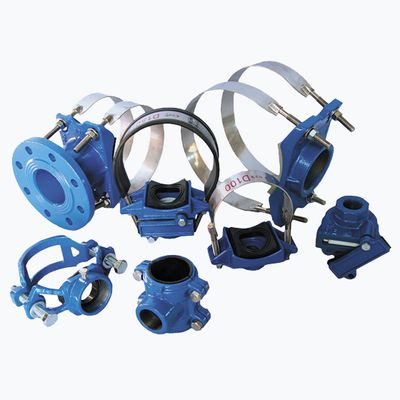

For tapping on steel, cast iron and concrete pipes it is made in one or two bands with threaded outlet, in two bands with flanged outlet.

For repairs of leakages on the bell connections of cast/ductile iron pipes and on fiber cement sleeves, without interrupting the service. Ductile iron sectors coated with blue epoxy resin powder applied with electrostatic procedure.

"TREPI" joint is suitable for working on steel, cast/ductile iron and cement pipes and it is produced in two versions, for repairing and for tapping.

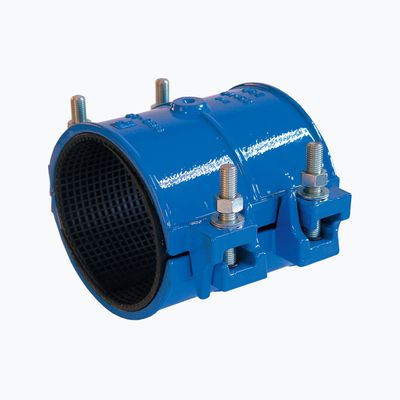

"DUEPI" joint is suitable for a rapid pipe repair, the body consists of two semicircular ductile iron halves coated with blue epoxy resin powder applied with electrostatic procedure.

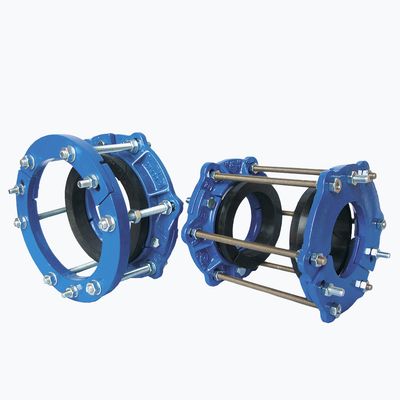

Produced in three types, each in two versions. The sleeve version solves the problem of joining pipes with different external diameters, with its field of applicability it allows the connection in a fast and safe way of pipes with smooth tips, while the flanged version solves the problem of joining pipes with different external diameters with flanged fittings.

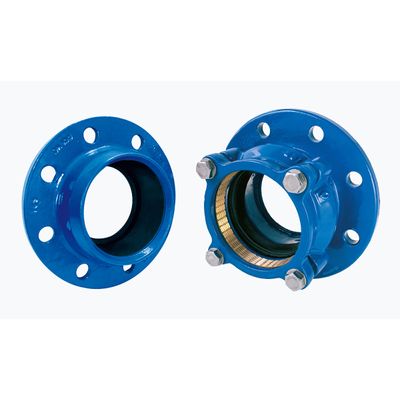

This flange solves the problem of the union of a flanged fitting with the end of a PVC or PE pipe. "FACILE" is suitable for PVC pipes, "FACILE R" and "FABO" for both PE and PVC pipes because they are equipped with a brass anti-slip ring system. Ductile iron body coated with blue epoxy resin powder applied with electrostatic procedure. Rubber gasket suitable for contact with food liquids.

Coupling with anti-slip system that solves the problem of joining two smooth PE / PVC pipe tips. Ductile iron body coated with blue epoxy resin powder applied with electrostatic procedure. Rubber gasket suitable for contact with food liquids.

Valves for the installation of household connections, available in both horizontal and vertical versions. Body made entirely of ductile iron coated with blue epoxy resin powder applied with electrostatic procedure. Inner metal wedge rubber covered. Control stem in stainless steel.
