IEC Fabchem Limited products

IEC has 20 years of experience in biofouling control through electrolysis of sea water to product sodium hypochlorite. These plants are frequently used in thermal power , Nuclear power, offshore and LNG plants. Sea water passes through the precious metal coated electrodes placed in an electrolysing chamber. The natural brine present in sea water is turned into a potent called sodium hypochlorite. The concentration of sodium hypo from the system is normally 2000 PPM. This concentrated solution is first degassed to remove the by product- hydrogen. The degassed solution is then diluted to about 2 PPM and dosed at various locations in the sea water supply line.

Generation of chlorine based stable solutions from Brine provides a safe alternative to chlorine gas feeding for biofouling and disinfection applications. The system is capable of generating a sodium hypochlorite solution of 0.8 % strength and comes in a modular skid mounted plug and play package. Smaller systems below 200 grams/hour of chlorine equivalent are offered as batch systems with each batch typically lasting one standard shift (8-hours). Larger systems are offered in continuous once through configuration with the output from the cell reaching 0.8 % hypochlorite.

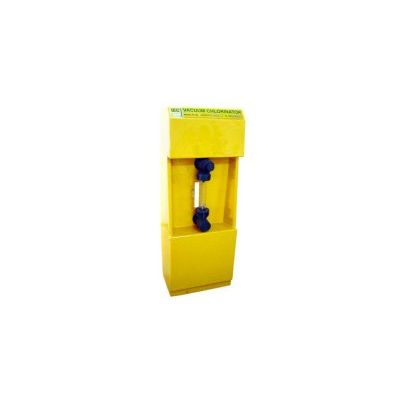

The year is 1963, Our founder P.S. Nathan is busy developing an indigenous chlorine gas feeder. By the end of the year he manages to convince the Public Health department of Ahmedabad to try his equipment. The result-M443 gas feed “semi-vacuum” chlorinator becomes the first successful indigenous chlorination plant. The installation becomes a reference for Indian self-reliance in the disinfection business. The plant operated well into the 1980’s before its de-commissioning.

With a keen interest in water filtration IEC has developed its proprietary SEBAC filtration technology. The SEBAC filter is capable of reducing suspended solids in process water.

A multi-media filter is employed to reduce the level of suspended solids in process water. Suspended solids can consist of particles such as silt, clay, grit, organic matter. The filtration degree of a multi-media filter depends heavily on the filter media and flow (velocity) through the filter.

Chemical Feed Systems generally consist of a steel base “skid” which a chemical storage tank and pumps are mounted too which then Feed chemicals into the process at a precise rate. There is an endless list of chemicals and applications these are used for such as phosphates for boiler water control, sodium hypochlorite for bio-fouling in a cooling tower.

IEC vertical bayonet style vaporizers are high-quality chemical evaporation systems. They are versatile enough to be used for a variety of process liquids in a wide variety of plants, they come with the option of ASME U-stamp.

IEC offers both the single stage and state of the art two stage wet scrubber for absorption of chlorine . The two-stage system is employed when the initial leak rate is expected to be very high. The first stage is a venturi scrubber. This stage handles the bulk of the chlorine load and additionally creates the necessary suction draft to entrain the leaked gases into the system. The second stage is a packed tower filled with pall rings. This stage provides the necessary polishing to remove the fine quantities of remaining chlorine from the air mixture. IEC can design system which ensures an outlet concentration of less than 0.2 PPM.

Chemical Feed Systems generally consist of a steel base “skid” which a chemical storage tank and pumps are mounted too which then Feed chemicals into the process at a precise rate. There is an endless list of chemicals and applications these are used for such as phosphates for boiler water control, sodium hypochlorite for bio-fouling in a cooling tower. IEC will fabricate the entirety of these packages under one roof with no need for subcontracting. We fabricate our own tanks, we have an experienced team for fabricating pressure vessels and a large team of experience welders, pipe fitters and electrical technicians that surpasses our competition to make the highest quality of system.
