IMKO Micromodultechnik GmbH products

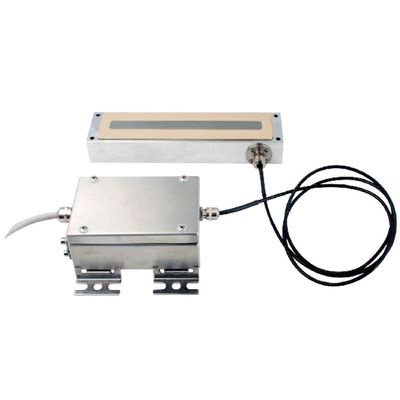

Very large measuring field, making the probe particularly suitable for heterogeneous bulk goods such as wood chips, pellets, pasta and similar materials. The humidity probe is built into e.g. containers, material hoppers or screw conveyors. SONO-Ex GS1: The humidity probe for heterogeneous bulk materials. The SONO-Ex GS1 humidity probe consists of an aluminum housing with a PEEK window. The probe is connected to the electronics housing in which the TRIME TDR transmitter is located. This generates a high-frequency TDR pulse with 1 GHz. The TDR pulse travels along the waveguide of the probe and creates an electromagnetic field around the probe in the material. The transit time of this pulse is measured with a resolution of one picosecond (1 × 10-12) to determine humidity and conductivity.

SONO-Ex MIX Mini: mixer probe with wear-resistant ceramic window. The stainless steel housing of the probe and the ceramic window make the SONO-Ex MIX Mini a wear-resistant mixer probe for daily use. The probe is firmly connected to the electronics housing in which the TRIME TDR transmitter is located. This generates a high-frequency TDR pulse with 1 GHz. The TDR pulse travels along the waveguide of the probe and creates an electromagnetic field around the probe in the material. The transit time of this pulse is measured with a resolution of one picosecond (1 × 10-12) to determine humidity and conductivity.
