IMP ARMATURE d.o.o. products

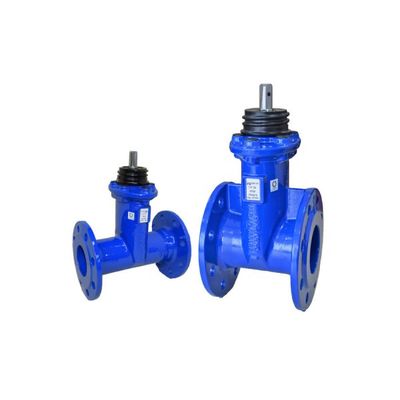

GAVE resilient seated gate valve Art 735 – 740 DN 50 – DN 600 (Art. 740 to DN 500) PN 10/16. Soft-sealing valve in accordance with EN 1171 and EN 1074. Connecting flanges in accordance with EN 1092-2. Face to face length EN 558-1, series 14 (F4) and 15 (F5).

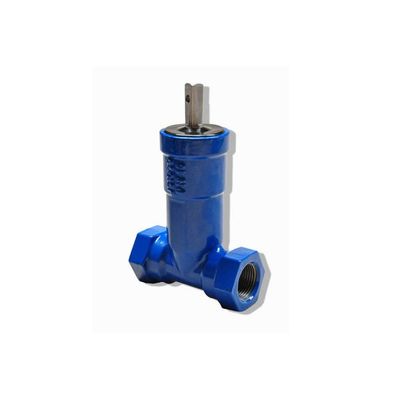

SEVA service connection valve Art. 745 DN 20 – DN 50 PN 16. Soft-sealing valve in accordance with EN 1171 and EN 1074. Double threaded connection. Simple construction and lightweight.

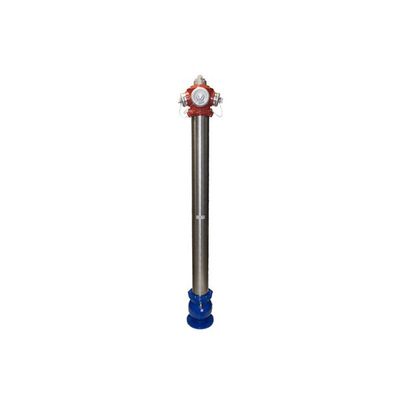

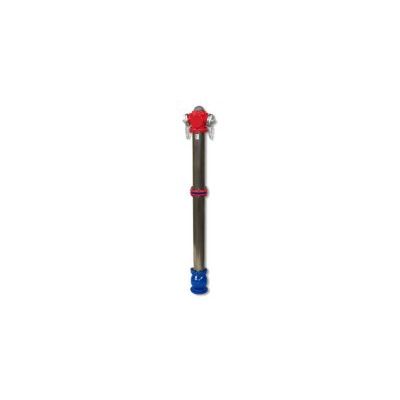

Overground hydrant Art. 2009 with double shut-off Typ A (unbreakable construction) and Typ C (breakable construction) for quick use in case of fires and temporary connecting of pipe network.Hydrants are manufactured and tested ace. to EN 14384, EN 1074-6 and ace. to Construction Products Directive 89/106 EEC

Double (AUD) or single (AU) closing. Fixation of couplings with aluminum nuts – to avoid corrosion. Inner rod from solid material – to prevent growth of bacteria. Terminal stoppers prevent damages due to eventual use of excessive force during opening/closing. Closing in the upward direction without terminal stopper on the sealing seat – less possibility for piston damage. Ramp for piston orientation during assembly or replacement – simpler maintenace. Drainage integrated in the body – no corrosion on threads.

Simple connection; Rotatable connection elbow 90° for PE pipes. Drilling under full working pressure. Max. drilling diameter 33 mm with IMP drilling machine. Stainless steel rubber covered strap. Appropriate for non-metal pipes (PE pipes or pipes of similar materials). Maintenance free.
