Impact Air Systems products

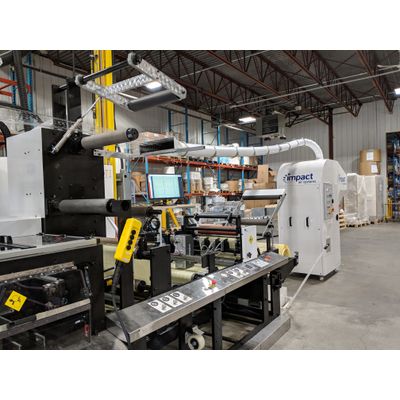

The Impact Matrix Master offers a flexible mobile solution to your waste matrix needs without having to install a central waste system.Designed to handle sticky matrix / lattice waste and edge trims from the label production process, this versatile mobile unit incorporates design cues from our tried and tested central matrix extraction systems. Neatly packaged inside an acoustic enclosure, the precision model 78 series trim cutter, waste fan, material separator and cartridge filter form the heart of the system. The unit can be positioned alongside the press and receive waste matrix directly into a collection hood, connected via a range of plasma ‘non stick coated’ galvanised ductwork to the inlet of the Matrix master.

Impact Air Systems announce exciting new developments in “Slitter knife dust extraction” technology. This new approach combining high velocity air flow design and electrode eliminating electrostatic charge techniques, results in impressive dust particle removal compared to conventional dust removal hoods.

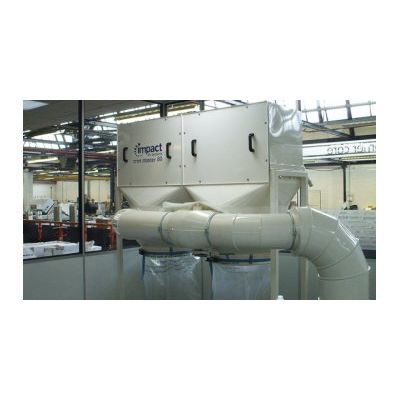

A simple trim and dust extraction unit that automatically removes and collects waste at high speed from production machinery. The design consists of a waste handling fan coupled with a specially engineered heavy duty waste and dust collection unit. The waste conveying fan incorporates the same robust engineering used in our larger complete factory waste extraction systems.

The Impact dust briquetter unit is designed to compress loose dust into high quality pellets or briquettes and is ideal for use in conjunction with the Impact range of dust filters.Designed to substantially reduce the volume of nuisance dust collected via dust filtration, this extremely versatile unit can be easily integrated into the system design allowing volume reduction levels of 20:1. No longer is it necessary to manually handle large sacks of waste dust collected by the filtration, instead the material is efficiently converted into manageable high density briquettes, reducing storage requirements. Dust is received by the collection drum and when the unit is activated by a level probe, it is fed by a dosing paddle into the compression chamber. Hydraulic rams convert the loose material into the final shape before ejecting the finished product for storage.

The Impact Zig-Zag separation system is a fully adjustable cascade cleaning solution, suitable for most recycling facilities, designed to efficiently remove lightweight debris from the material stream.

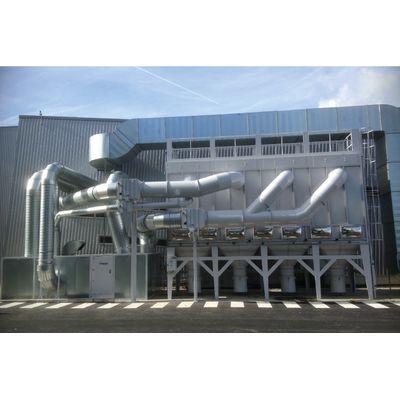

Impact Air Systems have been providing trim collection systems since the early 1980’s and have provided solutions to remove waste materials from production processes in a wide variety of industries.
