Industrial Flow Solutions (IFS) products

Patented system lifts effluent directly at point of entry. Patented impeller/shredder cuts fibrous materials and other solids. Variable Speed Drives for continuous modulated pumping directly from the effluent inlet to save energy. Averts dangerous gases (H2S). Eliminates smells. Prevents sand and grease accumulation. Avoids equipment corrosion and structural erosion. Removes obstructed float switches. Provides perpetual access safety. Reduces maintenance time and costs.

The OverWatch® Single Pump Series (SP Series) is a direct in-line ejector pump system designed to match pumping performance in real-time with the inlet flow. This single pump innovative design creates a safer operating environment with less maintenance than traditional systems. The SP Series is designed for large, single-family homes or smaller multi-family, mixed use buildings.

Discover the DERAGGER+™, a multi-award-winning solution designed to tackle two critical challenges in the wastewater industry: pump blockages and high energy costs. Eliminate ragging using Real Time Pump Protection™. Engineered with cutting-edge technology, the DERAGGER+™ offers unmatched benefits: Effortless Blockage Removal: Eliminates rag and debris clogs within wastewater pumps, ensuring continuous operation and reducing downtime. Advanced Diagnostic Capabilities: Provides comprehensive pump performance data including voltage, current, power consumption, run time, and start counts, enabling proactive maintenance planning.

The DERAGGERLite™ anti-ragging device will eradicate pump clogs in wastewater pumps. Typical payback in 3-4 months. Reduces or eliminates operational callout costs. Improves electrical efficiency by up to 48%. Reduces spills and polluting incidents. Minimal interruption to ‘live’ sites. Uses Real Time Pump Protection™ to clear the first rag and prevent a clogged pump. The DERAGGERLite™ constantly monitors the torque signature of a pump’s motor, and can dislodge and pass rags in Real Time should they become stuck on or inside the impeller/volute. This is achieved with a tunable “clean cycle” involving a brief and unique series of forward and reverse motions of the impeller.

The PowerMonitor™ combines motor protection, sensing and logging in an easy to install, compact device. Smart Technology: It’s a robust power analyzer and data logger combined. Ease Of Integration: Is a small unit, which installs into existing or new panels, is quick to set -up and compatible with all starter types, VFDs etc. Field Proven: Our technology has been used around the world for years. Simple Keypad Interface: Easy-to-use keypad has USB connectivity and convenient SD Card data storage.

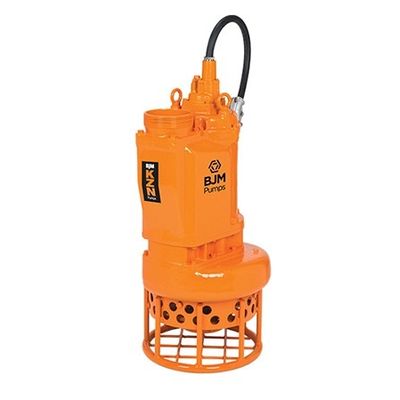

Heavy-Duty, Abrasion Resistant, Solids-Handling Pump. Heavy duty, high-chrome agitator for sand/ sludge/ slurry applications. Semi-open chrome impeller and wear plate handles high concentration of abrasive solids. Double silicon carbide mechanical seals in a separate oil-filled seal chamber. Class 30 ductile iron. NPT discharge. Hardened ductile top discharge motor housing. Heavy duty ball bearings. Motor cooled by pumped liquids. Seal Minder® moisture detection system (optional). Hardened ductile iron volute. Heavy duty lifting rings for easy transport. Class H motor insulation. 4 pole motor. 3-phase voltages. 5HP – 30HP.

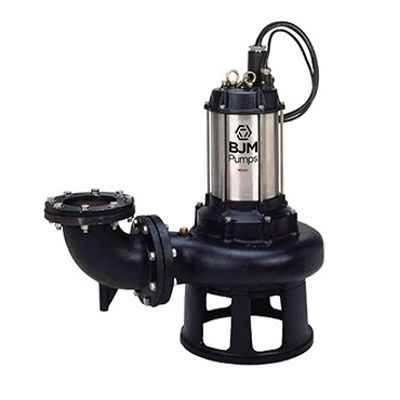

Solids-Handling, Non-Clog, Shredder Pump. Wear-resistant shredding and cutting system designed to tear, break, rip solids. Tungsten carbide-tipped impeller. Max solids from 1.6-3.5 inches. Motor housing: 304 stainless steel. High chrome suction plate. Dual mechanical seals. Seal Minder® moisture detection system. ANSI or NPT discharge flange. Integrated, removable pump stand. 33’ power and Seal Minder Cable. Heavy duty lifting rings. Built-in thermal protection. Class H motor insulation. 2-pole and 4-pole motors available. Single-phase and 3-phase voltages. 1HP – 20HP. Free-standing and guide-rail mounted compatibility.

Ideal for pumping everything from contaminated, dirty water, corrosive liquids to light dewatering. Used in the following U.S. industries: Metal Plating, Salt Mining, Plumbing, Marine, Agriculture, Aquaculture, Chemical, Rental, Utilities and Fire Departments.

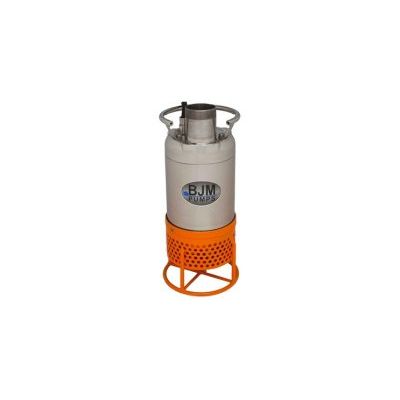

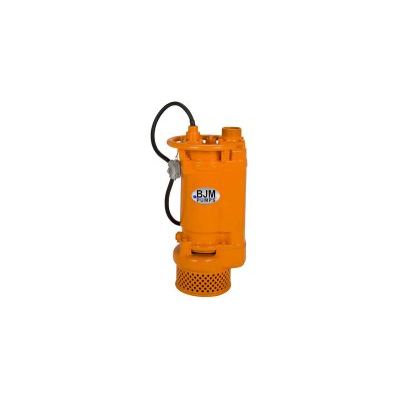

Submersible Light-Weight Agitator Dewatering Pumps. Hard Metal Submersible dewatering pumps. Designed and constructed for dewatering sand, silt, coal fines and abrasive light slurries.. Chrome Iron impeller and wear plate. Hardened ductile iron agitator and volute. Built-in agitator mixes settled solids with pump water to restore sump or basin volume. Light Weight.

Settling Basins, Retention Ponds, Wash down sumps, Sand & gravel dewatering, Barge & tank cleanout.
