Industrial Steam products

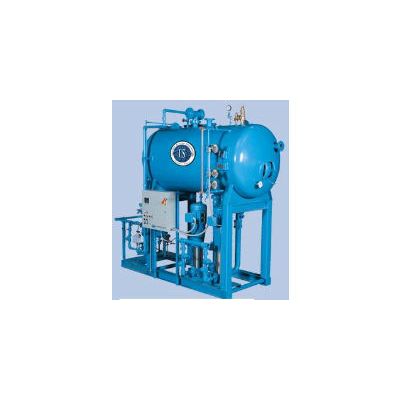

Unique Jet Spray scrubber design deaerator guarantees removal of all dissolved oxygen in excess of .005 cc/liter (7 ppb). Electronic Instrumentation For Modulating Deaerator Level control includes a HART compatible differential pressure transmitter, PID controller, and motorized control valve. Multiple Deaerator Configurations: vertical or horizontal vessels provide maximum flexibility using minimum footprint. Only Stainless Steel components come in contact with undeaerated water. Deaerator spray nozzle, scrubbing section and internal vent condenser are all stainless steel. A.S.M.E. Code and National Board stamped receivers - 50 psi standard vessel options include stress relieving, non-destructive testing and full vacuum. Custom Engineered Packaged Deaerator System includes boiler feedwater pumps and quality components to insure reliable service.

COUNTER FLOW TRAY design deaerator provides guaranteed removal of all dissolved oxygen in excess of .005 cc/liter from 5% to 100% of deaerator capacity. ELECTRONIC INSTRUMENTATION FOR MODULATING DEAERATOR LEVEL control includes a HART compatible differential pressure transmitter, PID controller, and motorized control valve. MULTIPLE DEAERATOR CONFIGURATIONS: vertical single tank, standard “tank car” type, or flanged heater section, all providing the same high quality deaeration. ONLY STAINLESS STEEL components come in contact with undeaerated water. Deaerator trays and tray box are all stainless steel. A.S.M.E. Code and National Board stamped receivers – 50 psi. Standard vessel options include stress relieving, non-destructive testing and full vacuum. CUSTOM ENGINEERED PACKAGED DEAERATOR SYSTEMincludes boiler feedwater pumps and quality components to insure reliable service.

ndustrial Steam’s HPR is specifically designed for the corrugating industry. The HPR is engineered to reduce energy use by collecting high temperature condensate from the system and safely pumping it back to the steam boiler without allowing any flash loss. In addition to eliminating flash loss, the HPR increases the efficiency of production equipment by insuring the condensate is properly drained out of the process (and returned to the boilers).

Oil Pumping Skids: available to meet the demands of your application and facility. Oil Pumping Skids can range from very simple systems typically found on boiler loop applications to multi-generator systems involving backup features. Custom designed pump skids for heavier oils or other application requirements are available.
