Innova-Tec GmbH products

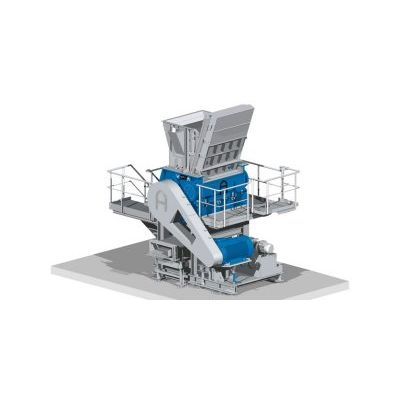

The recycling system for refrigeration devices consists of a shredder, a separation unit for PUR foam, iron, synthetic material and aluminuim/copper, a pelleting press and an exhaust air decontamination system.

The recycling system for refrigeration devices and e-waste consists of shredder, a separation unit for PUR foam, iron, synthetic material and aluminuim/copper, a pelleting press and a exhaust air decontamination system.

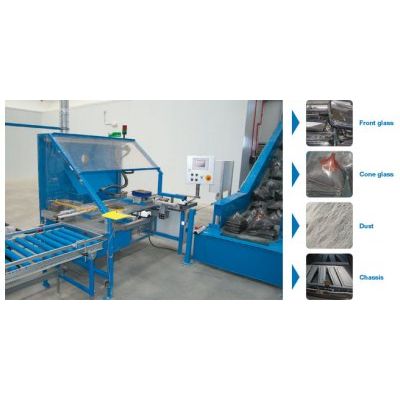

Semi-automatic throughput:  20 - 25 pcs/h for cathode ray tubes sizes 14 to 27 inches.  Fully-automatic throughput: 40 - 60 pcs/h for cathode ray tubes of 9 to 42 inches.

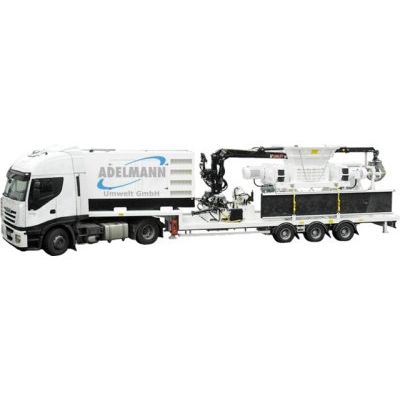

The basic idea for the conception of a mobile ADELMANN shredder plant was the aim to strengthen the flexibility of our clients in the area of reduction of volume and processing.

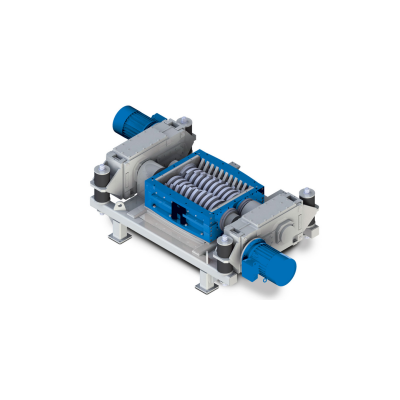

Our ADELMANN Pre-shredder (AVZ) is a universal shredder system consisting of a robust machine housing and a cutting mechanism which uses two parallel cutting shafts which are driven by a counter rotating mechanism.

Our product is a single-rotor shredder which is fitted with cutting blocks, the number of which depends on the shredder size. As the blocks rotate, material is pushed against the one or two opposing static blades and is shredded. The material is shredded until it reaches a shredded size which enables it to pass through the sieve. The diameter of the sieve´s holes defines the anticipated size of the output material. An optional hydraulic mechanism is available to feed material into the shredding process. This increases significantly the throughput, especially for light materials.

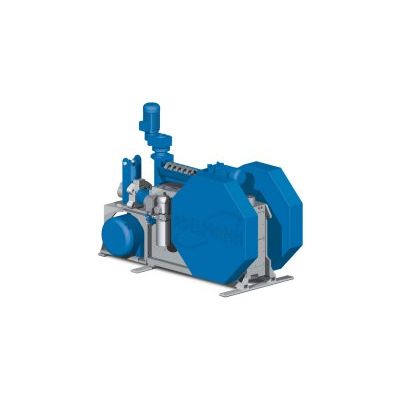

The discharge arm takes the material out from the press silo and moves it onto a spiral-conveyor. The spiral-conveyor moves the material to a spiral compressor. From there it arrives pre-compressed into the compression space of the briquetting press.  The material is compressed by an oscillatory piston within a conical pipe producing an endless cord. This cord is moved into a hydraulic press that compresses further. We offer four different types of briqetting press, each with different throughputs and briquettes diameters of (Ø 45, Ø 55, Ø 65, Ø 75 mm). Throughputs to circa 1,500 kg/h can be reached depending on the briquette quality and favoured material consistency. The briquetting process and the material input into the press silo can be carried out automatically or manually.
