iNOEX GmbH products

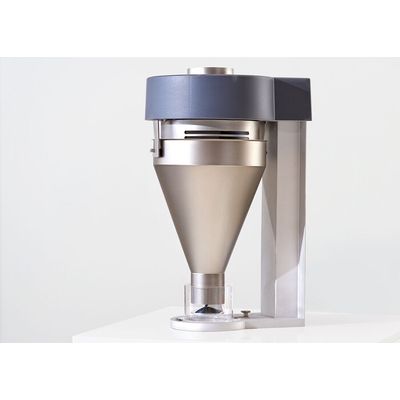

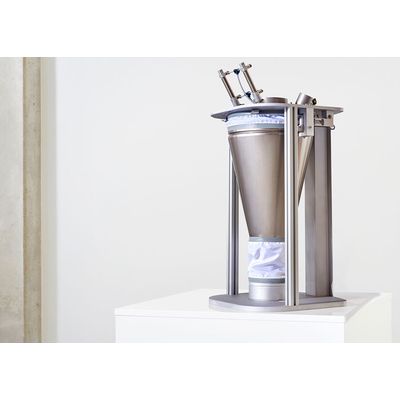

SAVEOMAT P is a funnel weigher specialized for the blockage-free feeding of powder with a maximum chalk content of up to 20%. Thanks to the optimal hopper geometry, an enlarged inlet, turbine vibrators at the hopper inlet and the storage hopper outlet, material deposits and bridging are avoided. This ensures a stable production flow and a constant material flow with a consistent minimum weight per meter.

The WARP 8 is an inline pipe measuring system for wall thickness and diameter measurement at 8 points or 4 axes. It provides all important measurement data required for manual or automated process optimization and control. In addition to the short return-of-invest time, the system offers high measurement accuracy as well as process automation and documentation functions. The static sensors allow a high resolution of the measured values in the extrusion direction. Thus, process fluctuations are precisely recorded and visible, so that effects such as short-term fluctuations in output or backpressure effects during the sawing process can be detected and eliminated. The WARP 8 specializes in large wall thicknesses and diameters and offers a particularly wide range of applications.

The AUREX MK is the complete solution for pipe dimensions from 0.5 - 400 mm. It enables compliance with the specified tolerances for wall thickness, eccentricity, diameter and ovality. Thanks to the combination of high-quality electronics with innovative measuring methods, up to 7 layers from 0.02 mm wall thickness can be evaluated. In addition to the standard measurement for control and visualization of the product, the "Fast Specification Check MK/AFM" is optionally available, which allows a fast wall thickness check. Since the AUREX MK does not completely cover the pipe at the circumference, this wall thickness check can be used, for example, to detect typical thin section rings caused by jerking of the produced pipe at the entire circumference.

For installation in a water-flooded customer tank with internal dimensions larger than 150 x 150 mm, No further seals required, The two-part guides can be inserted after start-up, A threading slot is available for small diameters
