Pneumonia known as Legionnaires disease is caused by breathing in water droplets that are in the air and contain the Legionella bacteria. This can come from a huge building`s ventilation system, shower, faucet, whirlpool, or water from the building`s air conditioning system, and it can cause severe lung inflammation.

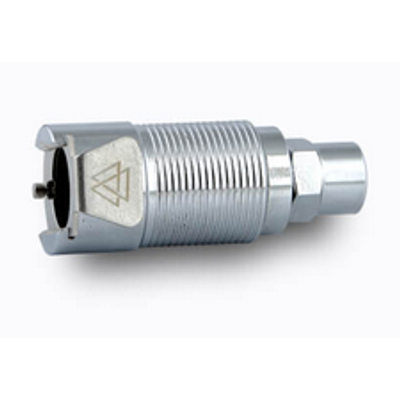

Part #: VCMD1002BSPT. Connection Type: In Line Pipe Threaded. Material: Brass . Material Finish: Chrome Plated. Pressure Range: Vacuum to 250 psi, 17.3 bar. Temp Range: -40°F to 180°F (-40°C to 82°C). Mounting Option: Thread 1/8 BSPT. Valve Option: With Shut Off Valve.

Insync Engineering productivity is increased by couplings that can adhere to any kind of connection. The shut-off valve feature in the Chrome plated brass VCL series ensures compliance with the quick release coupling, effectively protecting the system from pressure buildup caused by heavy liquid flow.

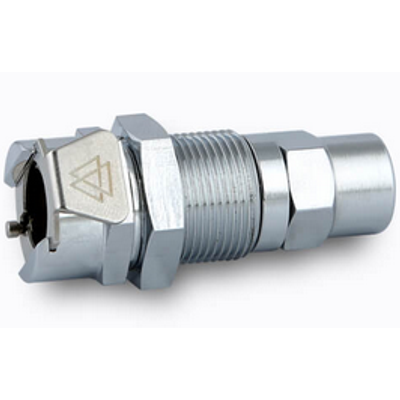

Part #:  VCMD12025. Connection Type:  Ferrule-less Tube Fitting. Material: Brass . Material Finish: Chrome Plated . Pressure Range: Vacuum to 250 psi, 17.3 bar. Temp Range: -40°F to 180°F (-40°C to 82°C). Mounting Option: Panel NPT. Tube Size: 5/32" OD, .10" ID (4.0mm OD, 2.5mm ID). Valve Option: With Shut Off Valve.

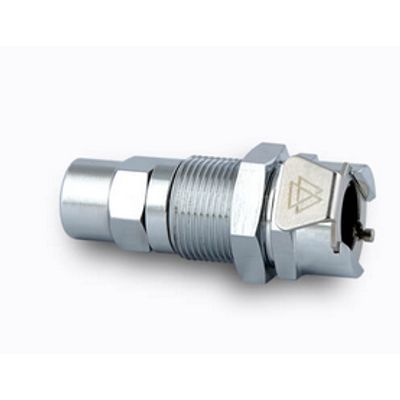

Part #:  VCMD12004. Connection Type:  Ferrule-less Tube Fitting.Material: Brass . Material Finish: Chrome Plated . Pressure Range: Vacuum to 250 psi, 17.3 bar. Temp Range: -40°F to 180°F (-40°C to 82°C). Mounting Option: Panel Mount. Tube Size: 1/4" OD, .17" ID (6.4mm OD, 4.3mm ID). Valve Option: With Shut Off Valve.

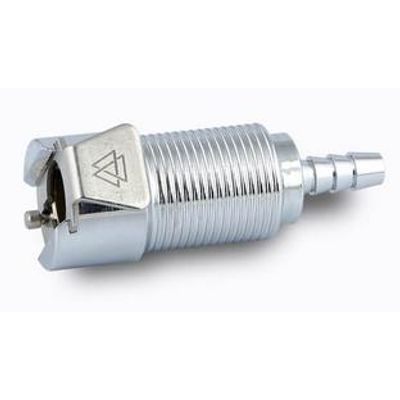

Part #:  VCMD1602. Connection Type:  Hose Barb. Material: Brass . Material Finish: Chrome Plated. Pressure Range: Vacuum to 250 psi, 17.3 bar. Temp Range: -40°F to 180°F (-40°C to 82°C). Mounting Option: Panel Mount. Size: 1/8" ID (3.2mm ID). Valve Option: With Shut Off Valve.

Part #: VCMD1603. Connection Type: Hose Barb. Material: Brass. Material Finish: Chrome Plated. Pressure Range: Vacuum to 250 psi, 17.3 bar. Temp Range: -40°F to 180°F (-40°C to 82°C). Mounting Option: Panel Mount. Size: 3/16" ID (4.8mm ID). Valve Option: With Shut Off Valve.

Part #: VCMD1502. Connection Type: Panel Mount Male Thread. Material: Brass. Material Finish: Chrome Plated. Pressure Range: Vacuum to 250 psi, 17.3 bar. Temp Range: -40°F to 180°F (-40°C to 82°C). Mounting Option: Panel Mount. Size: 1/8” NPT. Valve Option: With Shut Off Valve.

Part #: VCMD1304. Connection Type: Ferrule-less Tube Fitting. Material: Brass. Material Finish: Chrome Plated. Pressure Range: Vacuum to 250 psi, 17.3 bar. Temp Range: -40°F to 180°F (-40°C to 82°C). Mounting Option: Inline Ferruleless Polytube Fitting. Tube Size: 1/4" OD, .17" ID (6.4mm OD, 4.3mm ID). Valve Option: With Shut Off Valve.

Part #: VCMD1702. Connection Type: Hose Barb. Material: Brass. Material Finish: Chrome Plated. Pressure Range: Vacuum to 250 psi, 17.3 bar. Temp Range: -40°F to 180°F (-40°C to 82°C). Mounting Option: In Line Hose Barb. Tube Size: 1/8" ID (3.2 mm ID). Valve Option: With Shut Off Valve.
