Integrated Optics, UAB products

405 nm diode lasers are popular in a variety of fluorescence applications. Many organic materials have strong fluorescence at this excitation wavelength. Other applications include UV curing and inspection. 405 nm radiation became particularly popular due to the fact these diodes are used in Blu-ray optical disc equipment thus, they are inexpensive.  Integrated precision driver electronics ensures low-noise and very stable operation throughout the wide temperature range. Internal voltage up-conversion allows using a 5V power supply while maintaining low noise operation.

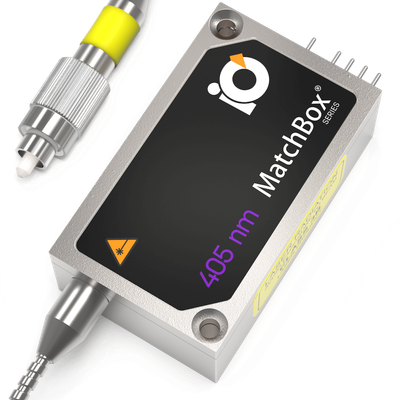

Single-mode fiber-coupled 405 nm laser diode in the compact and robust MatchBox platform. Proprietary fiber coupling technology offers alignment-free operation throughout the lifetime of the laser. Single-mode fiber ensures ideal beam quality and focusability, thus making this laser the best choice for high-resolution fluorescence imaging or 3D lithography applications. Proprietary fiber coupling technology ensures good power stability and excellent fiber-coupling efficiency.

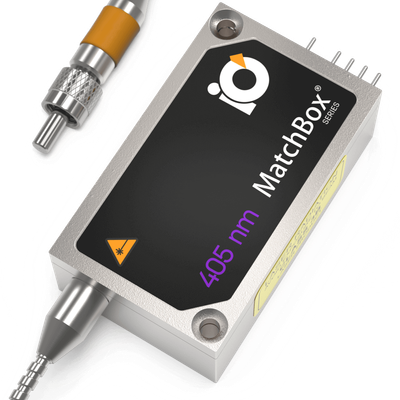

Fiber-coupled 405 nm diode laser module is a robust and handy unit for alignment-free operation throughout the lifetime of the laser. Proprietary fiber coupling technology ensures good power stability and excellent fiber-coupling efficiency. An end-cap is provided against degradation of the fiber tip inside the module thus, up to 100 mW of power can be coupled into the fiber. FC/PC connector is provided as a standard and the pigtail length is approx. 1 m. Other connectors are available as well. By default, this type of laser is built with FC/PC connector, but other fiber terminations are available upon request. Details about non-standard connector and the fiber used with it should be discussed with the Integrated Optics sales team.

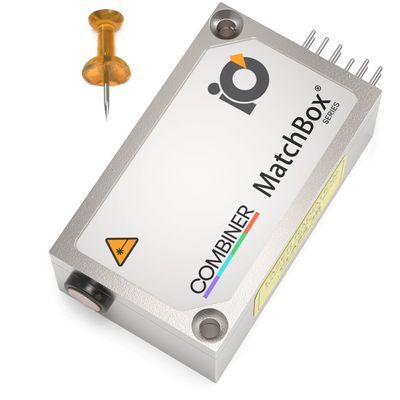

A widely configurable 3-wavelength dichroic laser featuring precisely co-aligned optical paths in a free-space output configuration. All optics and electronics fitted into the ultra-compact `Matchbox` housing. Elevate your scientific endeavors with our state-of-the-art 4-Wavelength Laser Combiner. This compact powerhouse seamlessly integrates four distinct wavelengths into a single housing, providing unmatched convenience without any compromise in performance.

Cutting-edge widely configurable 4-Wavelength Laser Combiner—a compact powerhouse designed to revolutionize your research in life sciences and fluorescence applications. This sleek device seamlessly integrates four distinct wavelengths into a single housing, providing unparalleled convenience without compromising performance. Crafted with precision and innovation, this laser combiner is a game-changer for researchers and scientists seeking efficiency in their experiments. Its compact size belies its capabilities, making it ideal for laboratories where space is at a premium. This particular configuration combines wavelengths, which are standard for use in Life Sciences, Food, Metrology, and Medical applications. An easy-to-use PC interface and separate TTL inputs allow full control over the individual wavelengths.

A Multi-wavelengths laser combiner featuring 4 laser diodes integrated within an ultra-compact MM (multi-mode) fiber-coupled `Matchbox` housing. Experience cutting-edge technology with our highly configurable 4-Wavelength Laser Combiner—a compact powerhouse designed to transform your research in life sciences and fluorescence applications. This sleek device seamlessly integrates four distinct wavelengths into a single housing, ensuring unparalleled convenience without compromising performance.

A Multi-wavelengths laser combiner featuring 4 laser diodes integrated within an ultra-compact MM (multi-mode) fiber-coupled `Matchbox` housing. Experience cutting-edge technology with our highly configurable 4-Wavelength Laser Combiner—a compact powerhouse designed to transform your research in life sciences and fluorescence applications. This sleek device seamlessly integrates four distinct wavelengths into a single housing, ensuring unparalleled convenience without compromising performance.

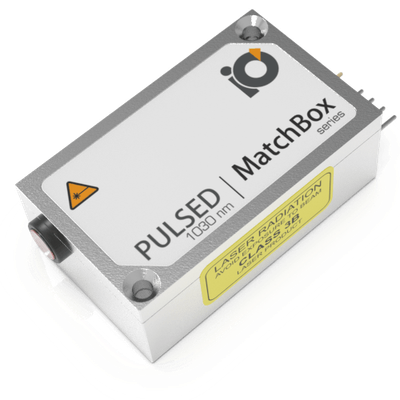

1029 nm nanosecond laser module is a turnkey laser featuring high pulse energy and a pulse duration of less than 2 nanoseconds. High pulse energy and compact package make this laser suitable for Light-Induced Breakdown Spectroscopy (LIBS) applications, as well as marking.

1029 nm nanosecond SLM laser module is a turnkey laser featuring single-frequency operation in a very compact package. True SLM operation (each pulse is emitted in the same longitudinal mode) ensures high pulse-to-pulse stability, low jitter, and extremely stable harmonic generation. High pulse energy and pulse-on-demand operation make this laser suitable for sorting, illumination, and pump-probe spectroscopy applications.
