100 cfm 125 psi, Quincy rotary screw air compressor, Model QGB 25. Packaged design. Capacity range is from 108 cfm 100 psig to 90 cfm @ 175 psig. Compressor housing has a 71 dBa sound level. Driven by a 25 HP 3/60/230/460 volt motor. Package dimensions are 63" L x 43" W x 47" H, 1290 lbs.

66` x 60` T/T CS tray column. Manufactured by Universal Lockport Corp, rated 162 PSIG @ 400 degrees F. (20) valve trays manufactured by Koch. Column has 2 internal sections with an internal seal pan underneath tray 11. Bottom section of column is 66` diameter x 30` tangent to tangent and holds trays 1 through 10. Top section of column is also 66` diameter x 26` tangent to tangent and holds trays 11 through 20. Welded dished top and bottom. Mounted on a skirt.

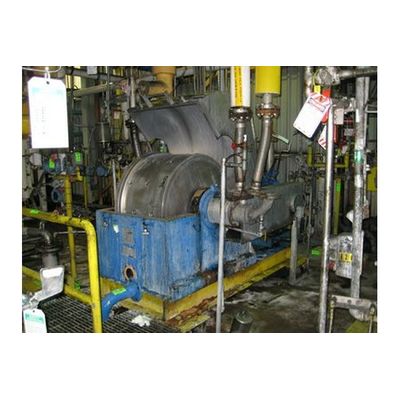

150 Kw, Tomo-e model P-V513600 stainless steel super decanter centrifuge, manufactured by Tomo-e, serial #J99-TRH074-32259, bowl speed 2260 rpm, max operating temperature 100 deg C, max specific gravity of cake or heavy phase 2, driven by a 150 kw, 3/50/3300 volt, 1490 rpm IP55 motor, planetary gearbox, mounted on a carbon steel baseplate

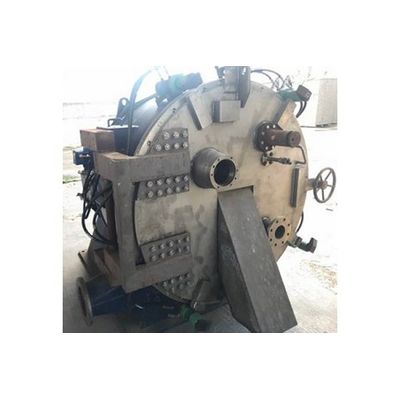

1250mm diameter Titanium Gr.2 (contact parts) horizontal peeler centrifuge, manufactured by Luwa-Heine, type HSZ412, basket depth 610mm, basket thickness 16mm, speed 750 rpm, basket load 355kg, basket volume 315 liter, 2.40 square meter filter area, Titanium hinged front door with hydraulic clamp mechanism, basket driven by 44kw (60hp) 3/50/400 volt 1470 rpm IP55, class 1 Div II motor, hydraulic operated peeler mechanism with front discharge chute, peeler driven by a powerpack, power pack unavailable but was driven by 0.75/0.86kw, 3/50/60/230-400/220-380/240-415/265-460 volt, 1390/1371/1402/1669 rpm ATEX Exd 11B T4Gb IP55 motor, level device,

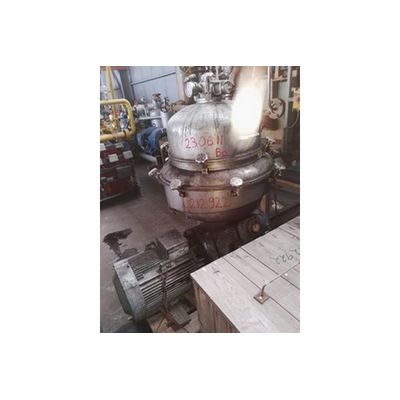

18.5 kW Alfa Laval 316 stainless steel seperator, type BRPX 213S-34, Serial Number 2894268, driven by 18.5 kW Motor, 3~/50Hz/380V/1420rpm, With tools

800mm, Hastelloy C22 (2.4610) Heinkel HF800 Inverting filter centrifuge,with new bearings, seals, belts, rebuilt hydraulic unit, and run in by the OEM. Serial Number 1068-13. Rated 1150 RPM, 1600 RPM Maximum. Solid Haynes Hastelloy C 22 for all process parts, 316SS for balance of exterior parts. Clean in place nozzles for solids and filtrate housings. Polished to 180 grit and electro polished solids and filtrate housings. Electric Rotational Drive, hydraulic Axial System, Maximum Speed 1600 rpm and G force of 1150 G`s, Bowl Diameter 800 mm or 32 ", Maximum Fill Weight 149 kg, Maximum Fill Quantity 119 liters. Explosion proof for Class I Division I C + D Motor. One HF 800 unit is equivalent to approximately one to two 48 basket units in capacity estimated only. Usually 100-200 kgs per hour wet product estimated only.

Model D18, 316SS Podbielniak Liquid/Liquid contactor, manufactured by Baker-Perkins, Inc. Model D18, Serial Number 69550 Contract # M-92582. Bowl rated 2100 RPM, Seal rated 250 PSI @ 250 degrees F. Bowl is 39" OAL x 36" OD. Unit has 316SS bolw, 304SS top cover, and CS bottom housing with a coating. Bowl is belt driven by a 15HP Marathon Electric, 3/60/230/460 volt motor, 1760 rpm, with an American Davison, Fluid drive is by, model # ID05786092, rated for 1800 rpm, dual rotation. Over All dimensions are 8` OAL x 8` OAW x 64" high.

11.35 square meter 316L stainless steel cartridge pressure filter, type 565L4-KR, designed by Cuno Fitration systems, manufactured by JMC corporation, design pressure atmospheric/17.5 barg -13/50 degrees C, working pressure 10 barg  10/20 degrees C, 640 liter volume, 350 m3/hour flowrate, specific gravity 0.9, viscocity of fluid 0.2, 699mm diameter x 1545mm straight side, swing bolt flat top with davit assist, weld dished bottom, (56) 2 1/2" diameter x 40" long cartridge filters, openings top: 1-1", straight side: 2-8", 1-1", bottom: 1-1", mounted on (4) legs, ASME V111.DIV

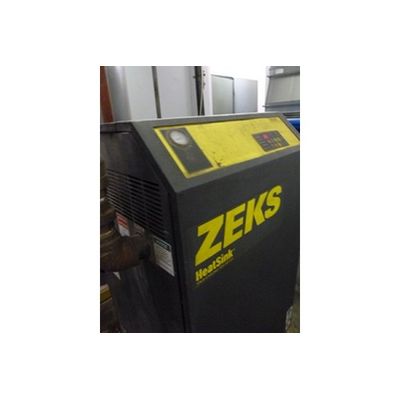

400 SCFM Zeks refrigerated air dryer, Model 400 HSFA, HeatSink compressed air dryer. Rated 400 scfm @ 38 degrees F with a 2.9 psi pressure drop. 2" diameter air inlet and outlet, 1/4" drain outlet. Uses refrigerant R404. 2.5 HP, 3/60/460 volt. Standard features include a fully hermetic refrigeration compressor, stainless steel heat exchanger, high efficiency moisture separator, electronic controls. Packaged design, 28" W x 30" D x 58" H. 670 lbs.
