IPEC Ltd products

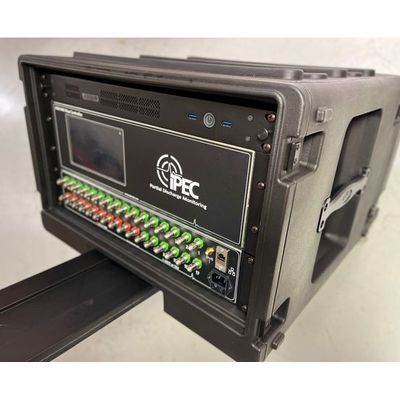

The ASM-Portable is a Portable Partial Discharge (PD) Monitor for cables, switchgear, and other high-voltage assets. The unit is part of the IPEC’s wider range of on-line PD monitoring systems. The ASM-P can be configured with up to 32 PD sensor channels. If excessive discharge is detected, the ASM-P raises an alarm that can be configured either locally or by email. This enables the long-term assessment of plant conditions to be carried out quickly and easily, from any remote computer.

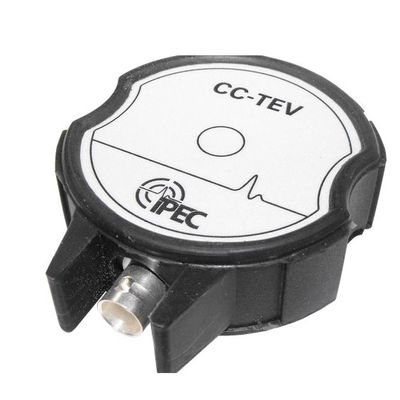

The CC-TEV Capacitive Coupler detects TEVs as they pass over the cladding of the high voltage plant. Fast output signals are recorded by the ASM, PrecisePD or PD-SG1 systems. The sensor is encased in a durable PVC sleeve for added protection. Embedded in the body are powerful magnets allowing for coupling to steel enclosures..

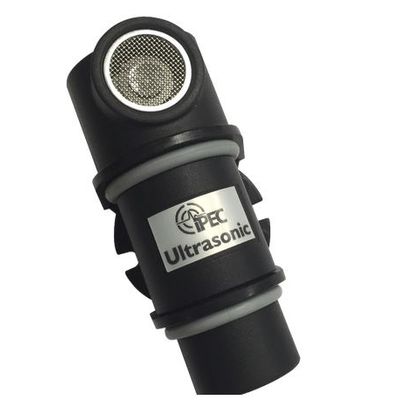

The AA Ultrasonic acoustic probe is designed for use on air insulated terminations where a clear sound path between the electrically stressed insulation and the probe is present.

IPEC’s UHF (Ultra High Frequency) sensors are used to detect PD in EHV cable terminations, GIS (Gas Insulated Switchgear). The sensors pick up signals in the UHF range (200MHz-2.5GHz) and are mounted against the insulating barrier spacers that separate components of the HV asset. The sensors work with multiple IPEC monitoring systems.
