IRCameras LLC products

The IRC806 provides the superior performance of a cooled MWIR sensor in a large format infrared imaging camera. The IRC806 is a 20 micron camera that operates at up to 119 frames per second full frame, and supports sub windowing for even higher frame rates. With superior sensitivity and NEdT greater than 99.5% operability, and extremely high uniformity the IRC806 is the perfect choice for the most demanding MWIR imaging applications such as, materials evaluation, quality assurance and process analysis.

Utilizing a high speed MWIR focal plane array the IRC806HS provides superior performance in a large format infrared imaging camera.  Operating at up to 478 frames per second full frame, this 20 micron camera supports sub-windowing for even higher frame rates.  Super framing allows the camera to switch among different integration times on a frame by frame basis to image rapidly changing scenes over a wide dynamic range.  Full rate image data is available via Camera Link, and simultaneous Gigabit Ethernet.

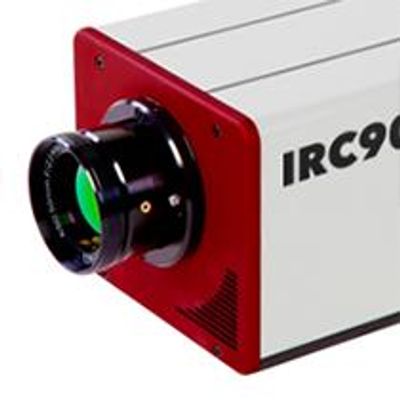

The IRC906 provides the superior performance of a cooled MWIR sensor in a large format imaging camera. This closed-cycle cooled camera operates at up to 119 frames per second full frame, and supports sub windowing for even higher frame rates.  With superior NEdT, greater than 99.5% operability and extremely high uniformity, the IRC906 is the perfect choice for the most demanding MWIR imaging applications such as Spectroscopy, Range Phenomenology and Process Analysis.

The IRC906HS provides the superior performance of a cooled MWIR sensor in a large format imaging camera.  Based on the most advanced infrared high speed focal plane technology available today, the IRC906HS offers unmatched sensitivity, ultra-low noise, no blooming and no crosstalk.  This camera operates at up to 478 Hz full frame rate and supports sub-windowing and triggering for even faster throughput and synchronization with external events. A Software Developers Kit is also available for users who wish to create their own applications.

The IRC910 a high definition cooled camera at 76 frames per second full frame rate, offering the most superior performance of a cooled MWIR sensor in a large format imaging camera. Super framing allows the camera to switch among different integration times on a frame by frame basis to image rapidly changing scenes over a wide dynamic range.  Full rate image data capture is available via Camera Link and simultaneous Gigabit Ethernet is also available. The IRC910 is perfect for Quality Assurance, Long Range Surveillance and Scientific Imaging applications.

The IRC912 high definition 12 micron infrared camera provides the superior performance of a cooled MWIR sensor at up to 119 frames per second full frame and supports sub windowing for even higher frame rates. Based on the most advanced infrared focal plane technology available today the IRC912 offers NEdT greater than 99.5% operability, and extremely high uniformity the IRC912 is the perfect choice for the most demanding MWIR imaging applications.

400 mW  110 K / IDCA.  The RM1 is designed for applications where size and mass need to be limited, and is typically used for HOT applications.

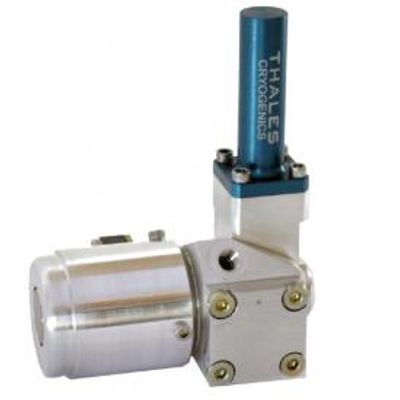

400 mW / ¼” IDCA. The RM2 benefits from a recognised maturity associated to high reliability, that makes it a real success for hand held camera or UAV applications. Designed to fit 1/4″ IDCA dewars, the RM2 can be interchanged with other Thales 1/4″ coolers.

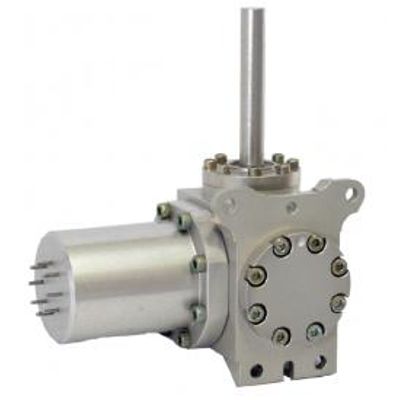

1000 mW / 5 mm slip-on. With only 5 mm cold finger diameter, the UP7080 is designed to fit into the smallest of dewars.
